Anton Sprint Pro6 Multifunction Flue Gas Analyser CPA1 Kit (Kit B)

Anton Sprint Pro6 Multifunction Flue Gas Analyser CPA1 Kit (Kit B)

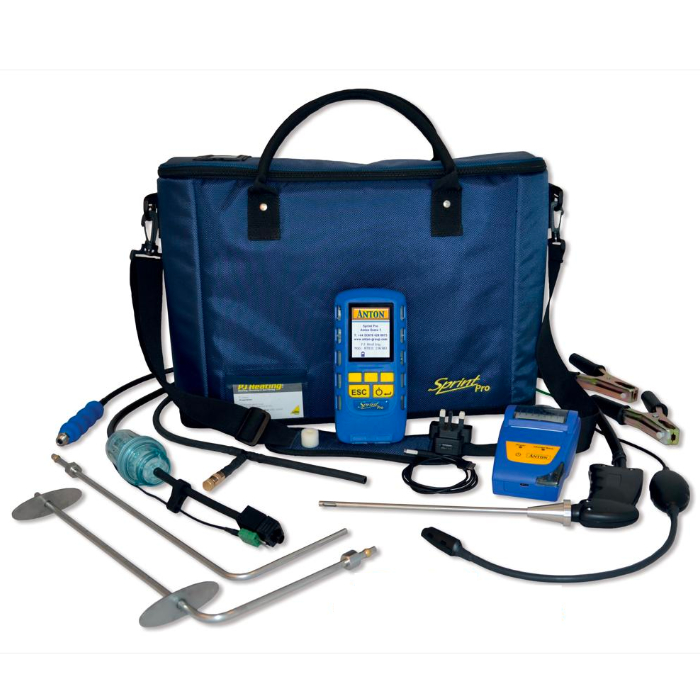

Anton Sprint Pro6 Multifunction Flue Gas Analyser CPA1 Kit (Kit B) allows the user to perform a range of applications on commercial and domestic combustion systems as well as on flueless appliances. It features the Anton Sprint Pro6 Flue Gas Analyser which can measure carbon monoxide, oxygen, pressure, temperature and nitric oxide (NOx). It can also calculate variables such as CO2 level, CO/CO2 ratio, and combustion efficiency in addition to performing let by/tightness testing and direct ambient CO/CO2 measurement via an infrared sensor.

The Anton Sprint Pro6 is operated using a set of intuitive menus and large push buttons and it is also possible to connect to the Anton Sprint Pro app on the user’s smartphone using wireless communication. Communication with a printer and a PC are possible through an IR and USB port respectively. The sturdy design of the analyser and double condensate trap in the analyser and flue probe make the set suitable for use in challenging conditions on site.

Several different probes are supplied with Anton Sprint Pro6 CPA1 Kit (Kit B). A BS 7967 probe set can be used on flueless appliances such gas fires and ovens whilst a standard flue probe can be used for conventional inspections. Additionally, differential inflow/outflow temperature can be measured using a pair of pipe clamp temperature probes and a gas leak sensor allows as leak detection. For pressure, the kit includes both a standard pressure hose and an APRV pressure release valve and hose set.

The user can print hard copies of results on site thanks to Anton Sprint Pro6 CPA1Kit's (Kit B) portable infrared printer and there is also a USB lead with a USB charger, a useful carry case, a spare dust filter and a calibration certificate.

Double Condensate Trap

One of the most impressive features of the new Anton Sprint Pro Flue Gas Analyser range is the double condensate trap that prevents moisture from reaching the analyser pump and causing down time. A moisture filter in the condensate trap prevents ingress towards the analyser and double protection is provided by a second filter at the click-in connection. The trap is robustly designed and very quick and easy to empty. Additionally, the particle filter has beens switched from paper to foam so it can be quickly dried on the spot without necessitating a second filter.

Anton Sprint Pro App

The Anton Sprint Pro App is available for Android and iOS smart devices from the Google Play Store or Apple App Store. It is capable of working with the Anton Sprint Pro Flue Gas Analyser range through wireless Bluetooth connectivity. The app allows the user to efficiently and professionally test combustion systems thanks to a wide range of report generation features, account management systems and a great choice of calculation features.

Anton part number: Sprint Pro6 Kit B

• Measurement features: CO, O2, NO, temperature, pressure
• Calculation features: CO2, CO/CO2 ratio, combustion efficiency
• Let by and tightness testing
• Water stop technology provides double protection against water ingress
• Condensate trap is easier to empty and clean
• BSI tested to EN50379:2012 1 & 3
• Option for direct infrared CO2 measurement
• Options for NO and NOx measurement
• Connect to iOS or Android devices
• Robust construction designed for professional engineers
• Intuitive, menu-driven software
• High-contrast colour screen
• USB-C charging and connectivity
• Drop in bag with every analyser
• Secure click in flue probe
• Over range protection for sensors
• Upgradeable to higher models
