BAUR Shirla 10KV Cable Sheath Testing & Fault Location System

BAUR
SKU: BAURSHIRLA10KV
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

Typically ships in 2-3 weeks
Recommended Add-ons
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 21500 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • Pre-locate faults and pin-point the areas in which they are happening by using this singular instrument
  • The Shirla allows for data to be exported via a USB interface, and then analysed to draw conclusions and results
  • The system generates a pulsed voltage and has a continuously adjustable voltage which can be customised by the user

Related Categories

Precision Cable Locators & Identifiers
Description

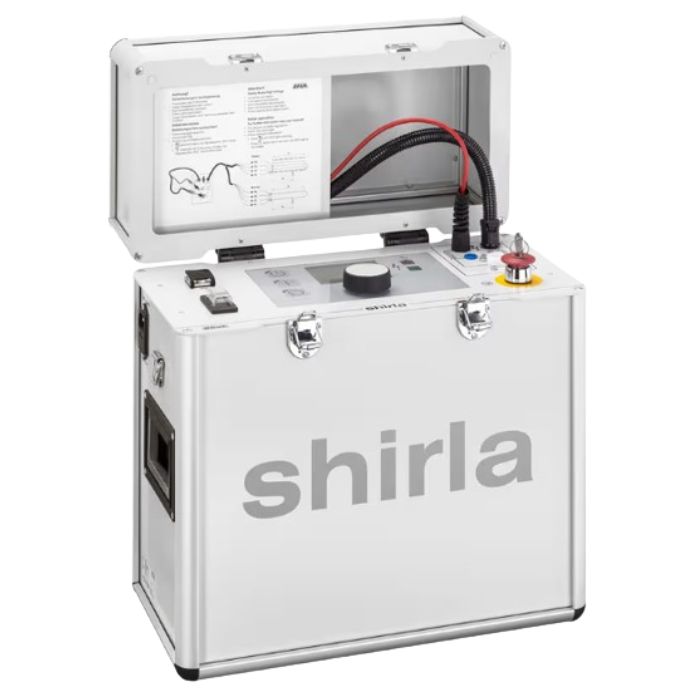

BAUR Shirla 10KV Cable Sheath Testing & Fault Location System

The BAUR Shirla Sheath Test and Fault Location Device is used for cable and cable sheath testing, and for the pre-location and pin-pointing of faults of the cable sheath and faults due to earth contact. The measuring bridge is dimensioned specifically for power cables, but also enables pre-location for control and lighting cables. Once the fault is located, the distance is shown in meters, with various cable sections able to be entered, which increases the accuracy of the measurement.

The Shirla utilises the bridge principle according to Murray and Glaser, which helps with fault pre-location. This method is optimised for power cables, but is also able to be used for control and lighting cables. The BAUR Shirla is able to generate pulsed voltages up to 10kV, and includes four selectable pulse pattern as well as a switch-on delay and operating time.

The BAUR Shirla features adjustable voltage and current limitations and supports automatic measurement sequences and reporting. Once data has been collected, it will be automatically exported to a USB stick or via a USB interface, with the ergonomic device and interface easy-to-operate and understand. Included with the Shirla is an integrated discharge unit, as well as a connection for an emergency off unit, which ensures the instrument operates in accordance with EN 50191.

The below video explains how BAUR's fault-finding instruments, including the Shirla, can help industry professionals in their role.

BAUR part number: SHIRLA

Key Features

  • Cable and sheath testing with DC voltage up to 10kV
  • Fault pre-location by means of high-resolution resistance measuring bridge
  • Pre-location of cable sheath faults and faults that occur due to earth contact with measuring bride
  • Step voltage method for cable sheath fault pin-pointing
  • Automatic evaluation of cable sheath faults and faults due to earth contact
  • Measuring bridge with automatic zero balancing
  • High accuracy by accounting for different cable sections in terms of length, conductor cross-section and material
  • Pulsed voltage up to 10kV
  • 4 pulse patterns are selectable
  • Adjustable switch-on delay and operating time
  • Continuously adjustable voltage
  • Adjustable current and voltage limitation
  • Automatic measurement sequences and reporting
  • Automatic report export to USB stick
  • Integrated discharge unit
  • Connection for external emergency off unit in accordance with EN 50191

What's In The Box?

  • BAUR SHIRLA 10KV Cable Sheath Testing & Fault Location System
  • HV Connection Cable, 4.5m, Fix Nounted
  • 4-Wire Bridge Connection Cable, 2.5m, Fix Mounted
  • G Clamps, 24mm, 4pcs
  • Short Circuit Cable Set
  • Earth Cable, 3m, with Earth Terminal
  • Transport Case for Accessories
  • USB Memory Stick
  • Mains Supply Cord, 2.5m
  • Carrying Strap
  • User Manual
Specification
Show Trustpilot Reviews
Specification
No

Cable and Cable Sheath Testing

  • DC Voltage - 0 - 10kV
  • Output Current - 10mA @ DC 5kV / 5mA @ DC 10kV
  • Current Indicator -
    Accuracy - ± 10µA
    Resolution - 1µA
  • Insulation Resistance Measurement - 0.01megohm to 1 gigaohm
  • Voltage and Current Limitation - Adjustable

Measuring Bridge (Pre-Location of Cable Sheath Faults and Faults Due to Earth Contact)

  • Measurement Method - 4-wire measuring bridge according to Murray and Glaser
  • Output Voltage - DC 100V - 10kV
  • Maximum Output Current - 50mA
  • Accuracy - Accuracy 0.1% relating to the measurement result
  • Number of Definable Cable Sections - 50
  • Voltage and Current Limitation - Adjustable

Step Voltage Method (Cable Sheath Fault Pin-Pointing)

  • Pulsed DC Voltage - 100V - 10kV / 4 selectable pulse patterns
  • Maximum Output Current - 700mA

General

  • Display - LCD with background lighting, screen resolution 320 x 240 pixels, Automatic brightness setting
  • Reporting -
    Shown on display
    Automatic export via USB interface (USB 2.0)
  • Data Export Format - Text file, bilingual : English/German
  • Power Supply -
    Mains Voltage - AC 100 - 240V, 50/60Hz
    Rechargeable Battery - DC 12V; 3 4 Ah
  • Maximum Power Consumption - 200VA
  • Ambient Temperature (Operational) - -20°C to +50°C
  • Storage Temperature - -40°C to +60°C
  • Relative Humidity - Non-Condensing
  • Dimensions (W x H x D) - Approximately 440 x 490 x 220mm
  • Weight Including Accessories - Approximately 20kg
  • Degree of Protection - IP54 (in closed state)
  • Safety and EMC - CE-compliant in accordance with Low Voltage Directive (2014/35EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental Testing

Integrated Battery

  • Battery Type - Lead-acid battery 12V, 3, 4Ah
  • Battery Life - Approximately 45 min (in HV mode)
  • Charging Time - Approximately 4 hours
Reviews
Trustpilot

Accessories

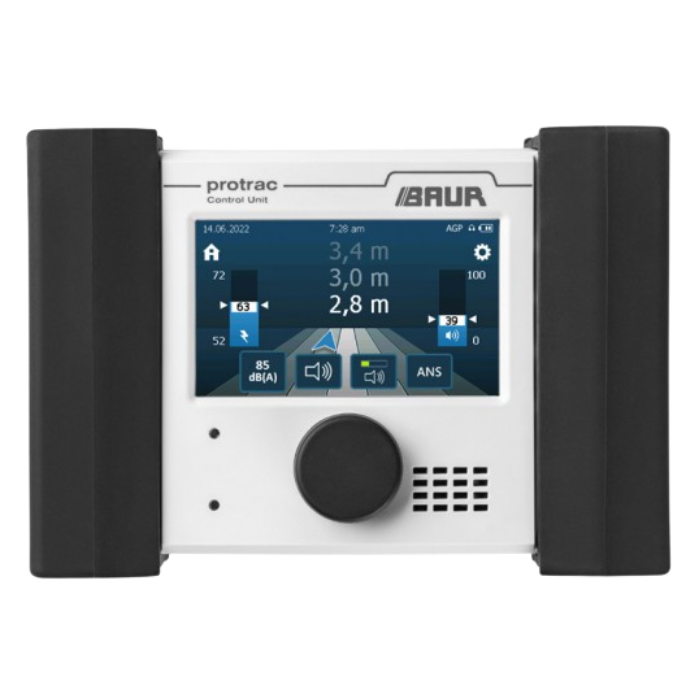

  1. BAUR Protrac Step Voltage Set - Cable Sheath Fault Locator
