C.Scope MXL4-DBG Datalogging Bluetooth Multi Frequency Locator

SKU
CSCOMXL4DBG
  • Picks up 131kHz, 33kHz, 8kHz, 640Hz and 512Hz frequency signals
  • Integrated GPS plus Bluetooth connectivity to local GPS Survey equipment
  • Datalogging to internal 2GB memory, data transfer via USB or Bluetooth®
More Info
inc VAT £894.00 ex VAT £745.00
Typically ships in 5-7 working days


Product Details

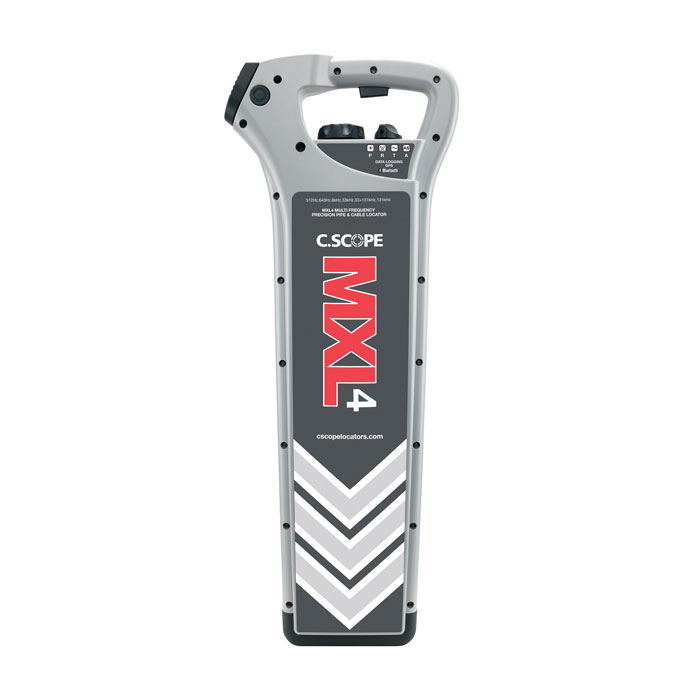

C.Scope MXL4-DBG Datalogging Bluetooth Multi Frequency Locator

The C.Scope MXL4-DBG Datalogging Bluetooth Multi Frequency Locator is a handy cable locator which can find and trace a wide variety of different cables and pipes. This is thanks to its capacity to receive a wide frequency range of signals. The locator is extremely sensitive and is highly accurate even in noisy environments.

A general 33kHz signal can be detected by the C.Scope MXL4-DBG and a 131kHz high-frequency signal is ideal for detecting thin, short or unearthed cables. For longer thicker cables, meanwhile, an 8kHz frequency is available and two ultra low frequency signals (512Hz and 640Hz) have specialist applications in cable tracing like finding blockages in subterranean metal pipes. Signals and energisation are projected by the C.Scope MXT4 Transmitter.

Alongside transmitter mode, the C.Scope MXL4-DBG can be used as a standalone instrument in radio and power modes. Power mode detects signals emitted by live electric current in underground cables and radio mode can detect radio-type signals from buried metal surfaces. AllScan mode is also available which has a wider frequency detection range than the other three modes for more comprehensive inspection.

Depth indication from 0.1m to 9.99m is another important aspect of the C.Scope MXL4-DBG. It works in combination with peak hold to accurately find and trace the path of buried cables and pipes. Additionally, AlarmZone™ alerts sound when an underground obstacle is particularly shallow and the swing indicator prevents improper use affecting accuracy.

The C.Scope MXL4-BDG saves readings and activity to its 2GB internal memory which has enough space for roughly 12 months’ data at normal usage levels, all of which can be recalled to the backlit LCD screen at the user's discretion. The integrated GPS functionality can add a location stamp to saved readings and Bluetooth® connectivity with local GPS Survey equipment allows ‘one-pass’ underground utility surveys. Data transfer can be undertaken via Bluetooth to a smart device with the C.Scope Relay App or via USB to a PC with C.Scope PC Toolkit software.

Daily self tests ensure accuracy and mean there is no need to calibrate the C.Scope MXL4-DBG. It is ideal for use in poor weather conditions thanks to its IP65-rated weatherproof casing and it has a three-year warranty. A C.Scope MXT4 Transmitter can be added to the purchase by clicking on the checkbox above.

Key Features

  • Radio, power, transmitter, AllScan modes
  • Compatible frequencies: 131kHz, 33kHz, 8kHz, 640Hz and 512Hz
  • Depth measurement range: 0.1m to 9.99m
  • Depth measurement accuracy: ±5%
  • Depth measurement resolution: 0.1m
  • Peak hold
  • AlarmZone™ shallow obstacle warning
  • Swing indicator
  • Datalogging to 2GB internal memory
  • In built GPS
  • Bluetooth® connectivity to local GPS Survey equipment
  • Data transfer via Bluetooth® or USB
  • IP65 weatherproof rating
  • Automatic daily self test
  • Three-year warranty



 CXL4CXL4-DCXL4-DBGDXL4-DDXL4-DBGMXL4-DMXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
– 33+131kHz
– 131kHz
– 33kHz
– 8kHz
– 512Hz
– 640Hz
All Scan Mode
Accurate Depth Identification
Signal Current Measurement
Data Logging
Data Logging Rate – once per second
2Gb Memory
Data Transfer via USB
Data Transfer via BluetoothTM  –
External Survey Level GPS via BluetoothTM
In-Built GPS position logging
Network Rail Approved
More Information
Specification
  • Audio indication: Removable and user replaceable loudspeaker module
  • Visual indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; AlarmZoneTM; Battery Condition; Self Test Indicator In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement; GPS signal detected; Bluetooth activated
  • Datalogging: Internal capacity for storing over 12 months of data (in normal use) logged once per second Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, Frequency, Depth, Signal Current Measurement, Self Test Result, Swing Indicator, GPS location
  • Bluetooth: Bluetooth 2.1
  • GPS: GPS/QZSS/GLONASS/SBAS
  • Data connector: Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
  • Self Test: Automatic Daily Self Test
  • Swing Indicator:  Audio beep to indicate incorrect use of the Locator
  • Transmitter mode frequencies: Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
  • Weight: 2.65kg
  • Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
  • Performance:  Locate Accuracy: better than 10% of depth; Depth Accuracy: ±5% @ 1m (3’3”); Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’); Line Depth Resolution: 0.1m (0.4”); Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type; Sonde Depth Resolution: 0.1m (0.4”); Current Measurement: 0.01mA to 100mA
  • Battery type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery life:  40 hours intermittent use at 20oC (68oF) using alkaline cells
  • IP rating: 65
  • Warranty: Three years
Icon Filename Type Size Download
pdf C.Scope MXL4 / MXT4 Datasheet pdf 967.8 KB Download
  1. C.Scope YCB/CS Professional Carry Bag
    C.Scope YCB/CS Professional Carry Bag
    inc VAT £46.20 ex VAT £38.50
    Typically ships in 5-7 working days
  2. C.Scope YIRS-8 General Purpose 8kHz Sonde
    C.Scope YIRS-8 8kHz Non-Metallic Pipe Sonde
    inc VAT £178.80 ex VAT £149.00
    Typically ships in 5-7 working days
  3. C.Scope YIRC-33-8 Signal Clamp
    C.Scope YIRC-33-8 Signal Clamp
    inc VAT £148.80 ex VAT £124.00
    Typically ships in 5-7 working days
  4. C.Scope YIRPPT50-33 50m Plastic Pipe Tracer
    C.Scope YIRPPT50-33 50m Plastic Pipe Tracer
    inc VAT £342.00 ex VAT £285.00
    Typically ships in 5-7 working days
  5. C.Scope YIRS-512 512Hz Metal Pipe Sonde
    C.Scope YIRS-512 512Hz Metal Pipe Sonde
    inc VAT £207.60 ex VAT £173.00
    Typically ships in 5-7 working days
  6. C.Scope YIRIP-33-E Signal Injector
    C.Scope YIRIP-33 Signal Injector
    inc VAT £108.00 ex VAT £90.00
    Typically ships in 5-7 working days
  7. C.Scope YCBL Large Carry Bag
    C.Scope YCBL Large Carry Bag
    inc VAT £30.00 ex VAT £25.00
    In Stock - Available Next Day
  8. C.Scope YIRRFT80 80m Flexible Pipe Tracer
    C.Scope YIRRFT80 80m Flexible Pipe Tracer
    inc VAT £564.00 ex VAT £470.00
    In Stock - Available Next Day
  9. C.Scope YIRS-640 640Hz Metal Pipe Sonde
    C.Scope YIRS-640 640Hz Metal Pipe Sonde
    inc VAT £240.00 ex VAT £200.00
    Typically ships in 5-7 working days
  10. C.Scope YIRS-LFC Lockfast Rod Connector
    C.Scope YIRS-LFC Lockfast Rod Connector
    inc VAT £24.00 ex VAT £20.00
    Typically ships in 5-7 working days
  11. C.Scope YIRSD-33 Duct Sonde
    C.Scope YIRSD-33 Duct Sonde
    inc VAT £225.00 ex VAT £187.50
    Typically ships in 5-7 working days

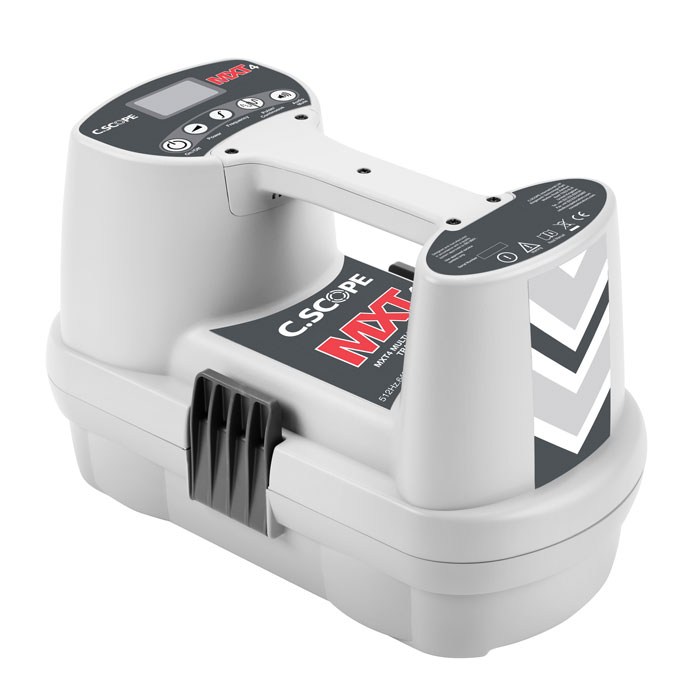

  12. C.Scope MXT4 Datalogging Transmitter
