Chauvin Arnoux PEL106 Power Energy Logger

Chauvin Arnoux PEL106 Power Energy Logger

The Chauvin Arnoux PEL106 Power Energy Logger is an exceedingly well-constructed piece of kit designed to be suitable for all types of electrical networks and ideal for installation on electricity poles. The PEL 106 includes 4 voltage inputs & 4 current inputs, will automatically recognise the sensors connected and vitally, can be operated without having to cut off the mains power supply. Recording continuously with only a brief interval of 200ms between each measurement, this power logger measures and records all the relevant data for energy consumption diagnostics. Capable of 5 readings per second and recorded simultaneously on each phase, all data is captured as per the IEEE 1459 standard. Thanks to vast measurement ranges, voltage up 1,000 VAC/VDC and current up to 10 kVAC / 5 kVDC, the PEL 106 can log power values up to 10 GW/GVar/GVA, and energy up to 4 EWh/EVAh/EVarh.

The PEL106 Power Energy Logger performs the following measurements:

Analogue measurements

When used with remote L452 loggers, the PEL106 can be utilised to identify each of the individual dysfunctions by recording external parameters such as pressure, temperature, and torque, therefore refining the final analysis. Communicating via a wireless Bluetooth link, this recording function can integrate up to 2 x 4 analogue channels, with these channels complimenting the voltage, current and power measurements. This feature can also be used to analyse a temperature-affected motor or electrical transformer station, making it ideal for applications involving new energies such as wind or water.

The analogue measurement function of the PEL106 Power Energy Logger creates the possibility of linking electricity generation to a wind speed, or a hydro-electric current to a flow-rate. Wind turbines where the electrical energy produced is directly linked to the strength of the wind or hydro-electric dams which depend on the water flow-rate, can be accurately measured for precise energy efficiency. Notably the PEL106 meets all the requirements needed for working with applications in the renewable energies sector.

Advanced Functionality

Measurements captured by the Chauvin Arnoux PEL106 Power Energy Logger are done so through current sensors and voltage inputs. By catching every detail of the electrical consumption in a workshop, factory, agency or building these units can be used simultaneously for real-time oversight, comparative analysis and power allocation. Operators are able to easily compare any readings from before and after any installation modifications thanks to each recording being time & date stamped.

Self-powered via its voltage inputs up to 1000V, this built-in feature aids the PEL106 in avoiding battery problems by drawing powering directly from the phase. In addition, a built-in Alarm mode allows users to define limits, create a list of recorded events and even automatically receive an email alert should a predetermined limit be passed. The PEL 106 is also equipped with an SD/SD-HC card for data backup from several months or even years, highly useful during lengthy measurement campaigns.

Compact All-Terrain Casing

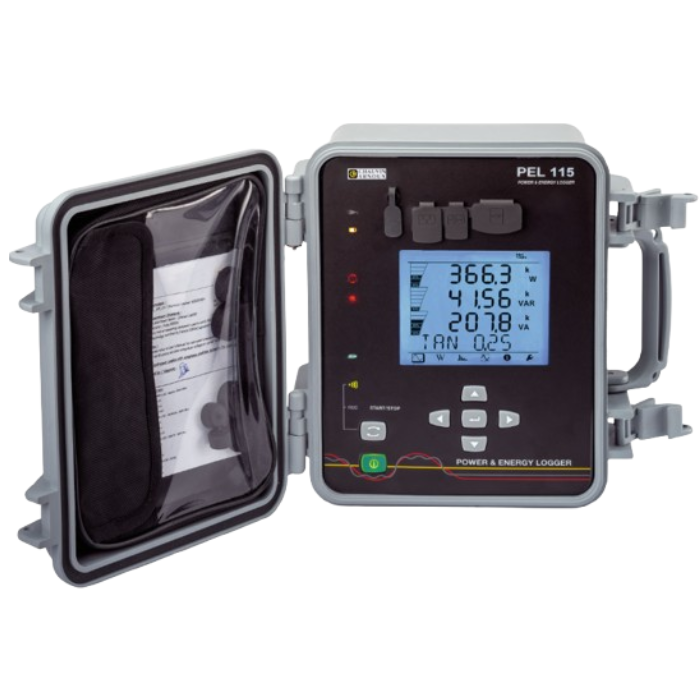

Portable and rugged, the PEL106 casing is resistant to shock, UV light and high temperatures. Rated IP67 when closed and IP54 open, this hard-wearing unit is safety rated CAT IV 1000V and comes complete with an optional hook for mounting. Protected by the outer shell, the LCD screen is both bright and fully digital with an easy-to-read quadruple display.

Multiple Communication Modes

Measurement campaigns can often last far longer than an engineer is expected to stay on-site, however it is still important to check the PEL106 is functioning correctly during operation. All Chauvin Arnoux PEL106 units are equipped with multiple communication modes; WiFi, 3G-UMTS/GPRS, LAN (Ethernet), Bluetooth, USB ports and compatibility with Android application. With the new 3G/GPRS mode, users can insert a SIM card for remote connection via a GSM 3G link. Measurements can be monitored in real time and the data can be recovered remotely from anywhere in the world.

IRD Server

Accessing the PEL106 Energy Logger via an IRD server is exceptionally useful as should an alarm be triggered, the engineer will receive an immediate email. If access to the unit is complicated, perhaps due to the protective systems on today’s IT systems or you're simply far away, the IRD server allows you to view measurements remotely via the internet and without endangering said protective IT systems.

Android App

The FREE multilingual Android App compatible with the PEL106 is a dedicated method of checking functionality and modifying configurations. An incorporated Bluetooth connection enables users to communicate with the device through their smartphone or tablet.

Impressively, the App also enables measurements for applications on motors; rotation speed, torque and engine efficiency. There is no longer a need to add specific sensors for this task as a software sensor developed by Chauvin Arnoux is fully incorporated.

PC Software

Equipped with a Wifi interface, access the PEL104 from any PC by means of the PEL Transfer software. The Power-Energy logger can be configured as a Wifi access point operating on the 2.4 GHz radio frequency band.

The PEL Transfer software analyses the data recorded and directly calculates the cost of the power consumed, displaying the result in the selected currency.

This application software also lets you:

• Configure the PEL104
• Check the connections before starting to record
• Download the measurements recorded in the PEL104
• View the various measurement results and analyses

The DataView processing software is built to provide users with a method of creating certified or customised reports. Generate energy consumption reports easily thanks to this software interacting directly with user-set alarm thresholds.

Key Features

• Suitable for all types of electrical networks
• Ideal for installation on electricity poles
• Provides real-time oversight
• Automatically recognises connected sensors
• 4 voltage inputs and 4 current inputs
• Operates without having to cut off mains power supply
• Measures/records all energy consumption diagnostics data
• Interval of 200ms between each measurement
• 5 readings per second recorded simultaneously on each phase
• Voltage range up 1,000 VAC/VDC
• Current range up to 10 kVAC / 5 kVDC
• Log power values up to 10 GW/GVar/GVA
• Log energy up to 4 EWh/EVAh/EVarh
• RMS and DC measurements with 128 samples/cycle – simultaneously on each phase
• AC and/or DC voltages up to 1000 V
• Phase data functions: cos φ, tan Φ, power factor (PF)
• THD calculation for currents and voltages
• Harmonics up to the 50th order for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz measurements
• Analogue measurements for identifying external parameters
• 2 x 4 analogue channels compliment the voltage, current and power measurements
• Ideal for applications involving renewable energies
• Suitable for workshop, factory, agency or building environments
• Recordings are all time & date stamped
• Built-in customisable Alarm mode
• Large SD card ideal for lengthy measurement campaigns.
• Communication modes; WiFi, 3G-UMTS/GPRS, LAN (Ethernet), Bluetooth, USB ports
• Monitor measurements & recover data from anywhere in the world
• Insert a SIM card for remote connection via a GSM 3G link
• IRD server emails user should an alarm be triggered
• Use the IRD server to view measurements remotely via the internet
• Compatible with FREE multilingual Android App
• Communicate via Bluetooth with the device through smart device
• Built-in software sensor enables measurements for applications on motors
• Motor measurements; rotation speed, torque & engine efficiency
• Wi-Fi interface for PC access
• PEL Transfer software analyses data and calculates cost of power consumed Software results displayed in selected currency
• DataView processing software creates certified or customised reports
• Self-powered via its voltage inputs up to 1000 V
• Backlit LCD screen with triple digital display
• Compact magnetised casing, extremely portable
• No impact on electrical cabinets
• Data recorded as per the IEEE 1459 standard
• Rated IP67, 1000V CAT IV

Chauvin Arnoux part number: PEL106
