Extech MA435T 400A True RMS AC/DC Clampmeter with NCV

SKU
EXTEMA435T
  • True RMS AC/DC Current measurement up to 400A
  • Temperature measurements from -20 to 760°C
  • Full range of multimeter functions, including non-contact voltage detection
More Info
inc VAT £110.40 ex VAT £92.00
Discontinued

Product Details

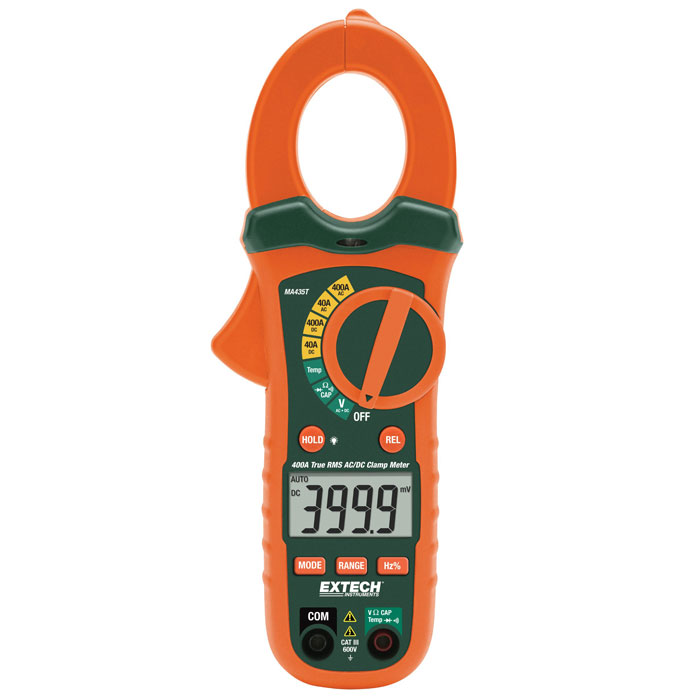

Extech MA435T 400A True RMS AC/DC Clampmeter with NCV

This product has been discontinued, it is replaced by the Extech MA445 AC/DC True RMS Clamp Meter.

Providing a full range of multimeter functions including True RMS AC/DC current measurement up to 400A and built-in non-contact voltage detection, the Extech MA435T Clampmeter is the perfect instrument for electrical professionals.

Boasting AC/DC voltage (up to 600V) and resistance measurement (up to 40MΩ), the MA435T also provides temperature measurements up to 760°C using its Type K Temperature Probe, as well as frequency and capacitance readings, plus diode and continuity testing.

With its efficient size and 30mm jaw size, the MA435T is perfect for use in any hard to reach locations and provides a backlit 4000-count LCD screen for easy reading in low-light environments.

The MA435T has a CAT III 600V rating and offers a range of useful features including data hold, low battery indication and auto power off functionality.

Coming complete with type K temperature probe, test leads, 9V battery and a soft case, the MA435T is the ideal clampmeter for your testing needs.

What's In The Box?
  • Extech MA435T 400A True RMS AC/DC Clampmeter with NCV
  • Type K Temperature Probe
  • Test leads
  • 9V battery
  • Soft case
More Information
Specification
  • AC Current: 400A (0.01A) range, ±(2.5% + 8d) basic accuracy
  • DC Current: 400A (0.01A) range, ±(2.5% + 5d) basic accuracy
  • AC Voltage: 600V (0.1mV) range, ±(1.5% + 5d) basic accuracy
  • DC Voltage: 600V (0.1mV) range, ±(1.5% + 2d) basic accuracy
  • Resistance: 40MΩ (0.1Ω) range, ±(1.5% + 2d) basic accuracy
  • Frequency: 10Hz to 10kHz range, ±(1.5% + 2d) basic accuracy
  • Capacitance: 100µF (0.01nF) range, ±(3.0% + 5d) basic accuracy
  • Temperature: -4 to 1400°F/-20 to 760°C (0.1°) range, ±(3% + 9°F/5°C) basic accuracy
  • Diode/Continuity: Yes
  • Display Count: 4000
  • Dimensions: 197 x 70 x 40mm (7.8 x 2.8 x 1.6")
  • Weight: 183g
