Extech MA445 AC/DC True RMS Clamp Meter

Extech Instruments
SKU: EXTEMA445
  • Measure up to 11 parameters including current, voltage, resistance, and temperature
  • Non-contact voltage detection allows user to check for live conductors
  • Extremely accurate measurement with true RMS functionality
More Info
Typically ships in 7-10 working days

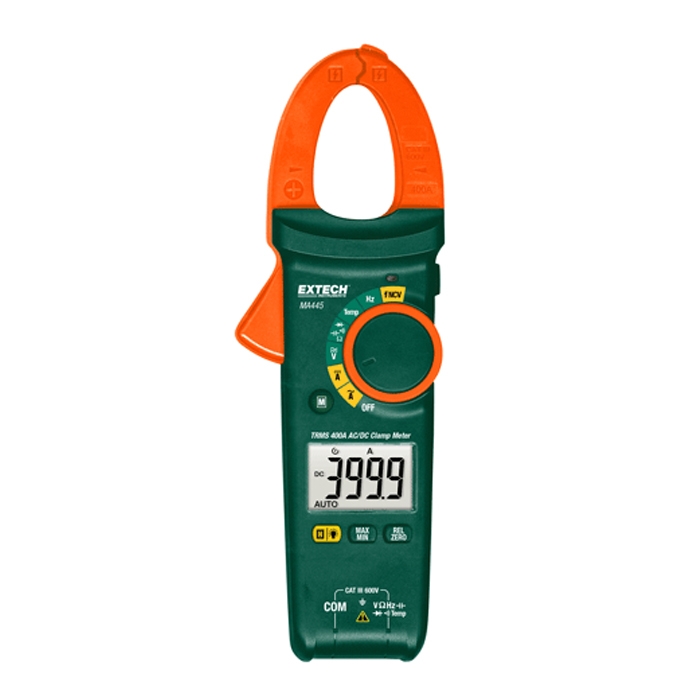

Extech MA445 AC/DC True RMS Clamp Meter

The Extech MA445 AC/DC True RMS Clamp Meter measures various electrical variables including AC/DC current (0 to 400A), AC/DC voltage (600V), resistance (40MΩ), capacitance (40mF), frequency (0 to 1MHz), and temperature (-40˚C to 1000˚C). It is capable of measuring duty cycle and performing diode/continuity testing whilst accuracy stands at ±2.5% for AC current and ±1.2% for AC voltage. Accuracy is aided by true RMS measurement and there is also a non-contact voltage detection function that allows the user to test for live conductors before starting work.

Readings are clearly displayed on the Extech MA445’s backlit LCD screen and there is a data hold function that can freeze a result on screen. It is also possible to perform min/max monitoring. The measurement function is selected by the clear rotary dial and simple push buttons and there is even a bright inbuilt torch that can be used to accurately apply the clamp meter in dark conditions.

The Extech MA445 is supplied with a calibration certificate, test leads, batteries, a type K temperature probe and a pouch for the meter and accessories. It is safety-rated as Cat III 600V and is covered by a one-year warranty.

Key Features

  • AC/DC current range: 0 to 400A
  • AC/DC voltage range: 0 to 600V
  • Resistance range: 0 to 40MΩ
  • Capacitance range: 0 to 40mF
  • Frequency range: 0 to 1MHz
  • Temperature range: -40˚C to 1000˚C
  • Duty cycle measurement
  • Diode/continuity testing
  • True RMS measurement
  • Non-contact voltage detection
  • Backlit LCD display
  • Data hold function
  • Cat III 600V
  • One-year warranty

Extech MA440 Series Comparison Table

Specifications MA440 (Max. Resolution) MMA443 (Max. Resolution) MA445 (Max. Resolution)
AC Current 400.0A (1mA) 400.0A (1mA) True RMS 400.0A (10mA) True RMS
DC Current - - 400.0A (10mA)
Basic Current Accuracy AC: ±2.0% AC: ±1.8% AC: ±2.5%, DC: ±2.0%
DC Voltage 600V (0.1mV) 600V (0.1mV) True RMS 600V (0.1mV) True RMS
AC Voltage 600V (1mV) 600V (1mV) 600V (1mV)
Basic Voltage Accuracy AC: ±1.2% DC: ±0.8% AC: ±1.2% DC: ±0.8% AC: ±1.2% DC: ±0.8%
Non-Contact Voltage (NCV) 100 to 600V 100 to 600V 100 to 600V
Resistance 40MΩ (0.1Ω) 40MΩ (0.1Ω) 40MΩ (0.1Ω)
Capacitance 100μF (0.01nF) 40mF (0.01nF) 40mF (0.01nF)
Frequency 1MHz (0.01Hz) 1MHz (0.01Hz) 1MHz (0.01Hz)
Temperature (Type K - meter range) - -40° to 1832°F/-40° to 1000°C (1°) -40° to 1832°F/-40° to 1000°C (1°)
Duty Cycle ✔ ✔ ✔
Diode/Continuity ✔ ✔ ✔
Dimensions 9x3x1.6" (228x77x41mm) 9x3x1.6" (228x77x41mm) 9x3x1.6" (228x77x41mm)
Weight 9.3oz (265g) 9.3oz (265g) 9.3oz (265g)

What's In The Box?

  • Extech MA445 AC/DC True RMS Clamp Meter
  • Test leads
  • AAA batteries
  • Type K thermocouple
  • Pouch
  • Calibration certificate
  • 12-month warranty
Specification
  • AC Current: 400.0A (10mA) True RMS
  • DC Current: 400.0A (10mA)
  • Basic Current Accuracy: AC: ±2.5%, DC: ±2.0%
  • DC Voltage: 600V (0.1mV) True RMS
  • AC Voltage: 600V (1mV)
  • Basic Voltrage AccuracyAC: ±1.2% DC: ±0.8%
  • Non-Contact Voltage (NCV): 100 to 600V
  • Resistance: 40MΩ (0.1Ω)
  • Capacitance: 40mF (0.01nF)
  • Frequency: 1MHz (0.01Hz)
  • Temperature (Type K - meter range): -40° to 1832°F/-40° to 1000°C (1°)
  • Duty Cycle: Yes
  • Diode/Continuity: Yes
  • Dimensions: 9x3x1.6" (228x77x41mm)
  • Weight: 9.3oz (265g)
