Extech MA440 400A Clamp Meter with NCV
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
- Non contact voltage detection available with 30mm jaw
- 9 functions including AC/DC Voltage, Resistance & Capacitance
- Includes backlit LCD screen and CAT III 600V safety rating
Related Categories
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
- Non contact voltage detection available with 30mm jaw
- 9 functions including AC/DC Voltage, Resistance & Capacitance
- Includes backlit LCD screen and CAT III 600V safety rating
Related Categories

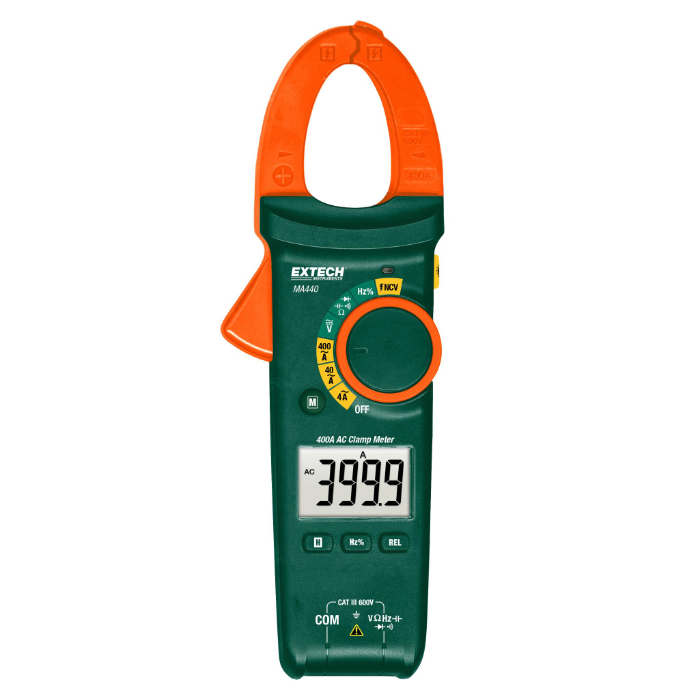

Extech MA440 400A Clamp Meter with NCV
The Extech MA440 400A Clamp Meter with NCV utilises a 30mm (1.2") jaw size to perform non-contact voltage detection tasks on 500MCM conductors. Featuring a large bright backlit LCD display, the MA440 includes a relative mode for capacitance, data hold option, auto-power off and low battery indicator. Capable of measuring AC current up to 400A, this easy-to-use instrument boasts a Max. Resolution of 1mA and a basic accuracy of ±2.0%.
Highly versatile, this 400A Clamp Meter offers the user 9 functions such as:
- NCV
- AC/DC Voltage
- AC Current
- Resistance
- Capacitance
- Frequency
- Diode Test
- Continuity
Ergonomically designed the Extech MA440 is battery powered, rated CAT III 600V and comes complete with test leads, three AAA batteries and a handy travel pouch. With 2 years warranty included, choose the right clamp for you from the Extech MA400 Series.
Key Features
- Featuring a 30mm (1.2") jaw size fits to fit conductors up to 500MCM
- AC Current: 400.0A (1mA)
- Basic Current Accuracy: AC: ±2.0%
- DC Voltage: 600V (0.1mV)
- AC Voltage: 600V (1mV)
- Basic Voltage Accuracy: AC: ±1.2% DC: ±0.8%
- Non-Contact Voltage (NCV): 100 to 600V
- Resistance: 40MΩ (0.1Ω)
- Capacitance: 100μF (0.01nF)
- Frequency: 1MHz (0.01Hz)
- Includes a Duty Cycle feature
- Comes with Diode/Continuity option
- Dimensions: 228x77x41mm (9x3x1.6")
- Weight: 9.3oz (265g)
- Large backlit LCD display
Extech part number: MA440
Extech MA440 Series Comparison Table
| Specifications | MA440 (Max. Resolution) | MMA443 (Max. Resolution) | MA445 (Max. Resolution) |
|---|---|---|---|
| AC Current | 400.0A (1mA) | 400.0A (1mA) True RMS | 400.0A (10mA) True RMS |
| DC Current | - | - | 400.0A (10mA) |
| Basic Current Accuracy | AC: ±2.0% | AC: ±1.8% | AC: ±2.5%, DC: ±2.0% |
| DC Voltage | 600V (0.1mV) | 600V (0.1mV) True RMS | 600V (0.1mV) True RMS |
| AC Voltage | 600V (1mV) | 600V (1mV) | 600V (1mV) |
| Basic Voltage Accuracy | AC: ±1.2% DC: ±0.8% | AC: ±1.2% DC: ±0.8% | AC: ±1.2% DC: ±0.8% |
| Non-Contact Voltage (NCV) | 100 to 600V | 100 to 600V | 100 to 600V |
| Resistance | 40MΩ (0.1Ω) | 40MΩ (0.1Ω) | 40MΩ (0.1Ω) |
| Capacitance | 100μF (0.01nF) | 40mF (0.01nF) | 40mF (0.01nF) |
| Frequency | 1MHz (0.01Hz) | 1MHz (0.01Hz) | 1MHz (0.01Hz) |
| Temperature (Type K - meter range) | - | -40° to 1832°F/-40° to 1000°C (1°) | -40° to 1832°F/-40° to 1000°C (1°) |
| Duty Cycle | ✔ | ✔ | ✔ |
| Diode/Continuity | ✔ | ✔ | ✔ |
| Dimensions | 9x3x1.6" (228x77x41mm) | 9x3x1.6" (228x77x41mm) | 9x3x1.6" (228x77x41mm) |
| Weight | 9.3oz (265g) | 9.3oz (265g) | 9.3oz (265g) |
| Yes |
|
