Teledyne FLIR C3-X Compact Thermal Camera

SKU
FLIRC3X
  • 3-in-1 instrument with true thermal imager, visual camera & bright LED
  • Includes FLIR MSX technology, ideal for troubleshooting applications
  • Transfer data directly to the intuitive FLIR Ignite cloud based storage
More Info
inc VAT £542.40 ex VAT £452.00
In Stock - Available Next Day
Choose Your Free Gift
Teledyne FLIR VP52 Voltage Detector with Vibration and Flashlight
Free
£25.00

Key features:

  • Tough non contact voltage detector with 24-1000V range
  • Vibrates and illuminates a red LED to alarm when it detects AC voltage
  • Built in bright flashlight for dark areas.
Teledyne FLIR MR40 Moisture Pen
Free
£47.00

Key features:

  • Sturdy, small and lightweight
  • Measures moisture content from 5% to 60%
  • Integrated torch illuminates measurement target


Product Details

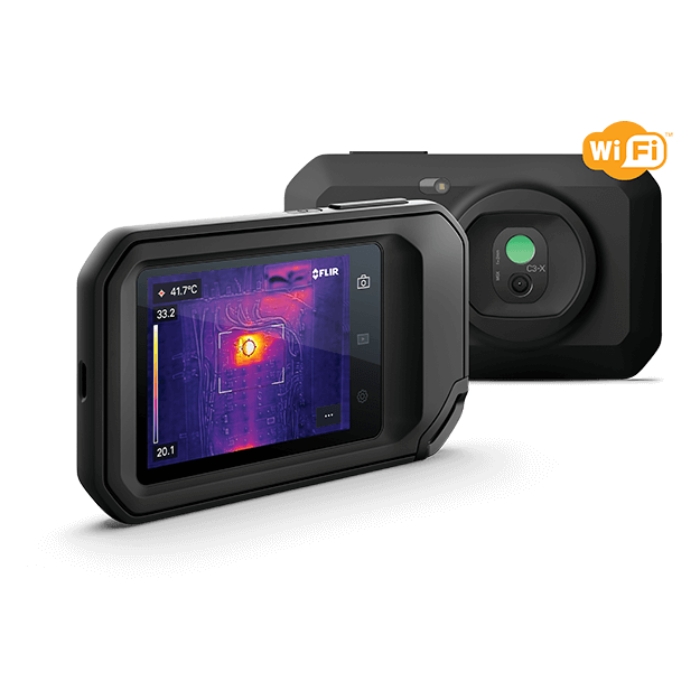

Teledyne FLIR C3-X Compact Thermal Camera

The Teledyne FLIR C3-X Compact Thermal Camera is a powerful yet affordable professional inspection tool for troubleshooting applications concerning facilities maintenance, building, electrical repair, HVAC/R and more. Easily identify hot fuses, air leaks, plumbing issues and other hidden problems with this 3-in-1 instrument. The C3-X comes complete with built-in Wi-Fi and features a temperature range up to 300°C, thermal sensitivity (NETD) of <70 mK, field of view (FOV) of 53.6° and true thermal imager with 128 × 96 pixels.

Portable and with a 3.5 inch integrated touchscreen, the FLIR C3-X is simple and efficient. The incorporated 5 megapixel visual inspection camera is bolstered by a bright LED flashlight for working within dark, difficult to reach areas. This thermal camera also includes 4 colour palettes, image modes such as Infrared, Visual, Picture-in-Picture and utilises FLIR's exclusive MSX technology. Multi-Spectral Dynamic Imaging (MSX) extracts scene details from the visual image and embosses them onto the the full thermal image, resulting in clearer, sharper and easier to understand pictures. Enhance these thermal captures with the highly useful option to manually or automatically adjust level and span.

The internal memory of the reliable FLIR C3-X Compact Thermal Camera can store up to 5000 images in standard JPEG format with all 14-bit measurement data included. Annotate your images for additional clarity before uploading them directly to FLIR Ignite. Conveniently organise and back-up all pictures in this cloud based storage space which can be easily accessed directly from the FLIR C3-X. Drastically reduce time and effort by sharing you findings with customers through a password-protected link via email.

Carry the C3-X Compact Thermal Camera in your pocket or crowded tool bag confidently thanks to it's small yet rugged IP54 rated enclosure. Designed to withstand a 2 m (6.6 ft) drop and protected against dust & water, this tool includes a built-in tripod mounting and an operating time of up to 4 hours.

Key Features

  • Powerful professional inspection tool
  • Identify hidden issues
  • 3-in-1 instrument
  • True thermal imager with 128 × 96 (12,288 pixels)
  • Temperature range up to 300°C
  • Thermal sensitivity (NETD) of <70 mK
  • Field of view (FOV) of 53.6°
  • 5MP visual inspection camera
  • Bright LED flashlight built-in
  • Featuring FLIR MSX technology
  • Compact, portable and hard-wearing
  • 3.5 inch capacitive touchscreen
  • Level & Span manual or automatic adjustments
  • Includes image modes IR, Visual, Picture-in-Picture & MSX
  • 4 colour palette options
  • Direct data transfer to FLIR Ignite cloud storage
  • Internal memory stores up to 5000 JPEG images
  • Annotate saved images
  • Share password protected links with customers
  • Built-in tripod mounting
  • Battery lasts for up to 4 hours continuous use
  • IP54 rated
  • 2m drop tested

FLIR part number: C3-X

FLIR C-Series Banner

FLIR C3-X Compact Thermal Camera

The FLIR C3-X Compact Thermal Camera is a powerful yet affordable professional inspection tool for troubleshooting applications concerning facilities maintenance, building, electrical repair, HVAC/R and more. Easily identify hot fuses, air leaks, plumbing issues and other hidden problems with this 3-in-1 instrument. The C3-X comes complete with built-in Wi-Fi and features a temperature range up to 300°C, thermal sensitivity (NETD) of <70 mK, field of view (FOV) of 53.6° and true thermal imager with 128 × 96 pixels.

Portable and with a 3.5 inch integrated touchscreen, the FLIR C3-X is simple and efficient. The incorporated 5 megapixel visual inspection camera is bolstered by a bright LED flashlight for working within dark, difficult to reach areas. This thermal camera also includes 4 colour palettes, image modes such as Infrared, Visual, Picture-in-Picture and utilises FLIR's exclusive MSX technology. Multi-Spectral Dynamic Imaging (MSX) extracts scene details from the visual image and embosses them onto the the full thermal image, resulting in clearer, sharper and easier to understand pictures. Enhance these thermal captures with the highly useful option to manually or automatically adjust level and span.

The internal memory of the reliable FLIR C3-X Compact Thermal Camera can store up to 5000 images in standard JPEG format with all 14-bit measurement data included. Annotate your images for additional clarity before uploading them directly to FLIR Ignite. Conveniently organise and back-up all pictures in this cloud based storage space which can be easily accessed directly from the FLIR C3-X. Drastically reduce time and effort by sharing you findings with customers through a password-protected link via email.

FLIR C3-X Compact Thermal Camera In Use

Carry the C3-X Compact Thermal Camera in your pocket or crowded tool bag confidently thanks to it's small yet rugged IP54 rated enclosure. Designed to withstand a 2 m (6.6 ft) drop and protected against dust & water, this tool includes a built-in tripod mounting and an operating time of up to 4 hours.

Key Features

  • Powerful professional inspection tool
  • Identify hidden issues
  • 3-in-1 instrument
  • True thermal imager with 128 × 96 (12,288 pixels)
  • Temperature range up to 300°C
  • Thermal sensitivity (NETD) of <70 mK
  • Field of view (FOV) of 53.6°
  • 5MP visual inspection camera
  • Bright LED flashlight built-in
  • Featuring FLIR MSX technology
  • Compact, portable and hard-wearing
  • 3.5 inch capacitive touchscreen
  • Level & Span manual or automatic adjustments
  • Includes image modes IR, Visual, Picture-in-Picture & MSX
  • 4 colour palette options
  • Direct data transfer to FLIR Ignite cloud storage
  • Internal memory stores up to 5000 JPEG images
  • Annotate saved images
  • Share password protected links with customers
  • Built-in tripod mounting
  • Battery lasts for up to 4 hours continuous use
  • IP54 rated
  • 2m drop tested

FLIR part number: C3-X

What's In The Box?
  • Soft carry case
  • USB Cable
  • Lanyard
  • Thermal Studio Suite Standard 1-Month Subscription
  • Calibration Document
  • Instruction Manual
More Information
Specification

Overview

  • IR sensor: 128 × 96 (12,288 pixels)
  • Thermal sensitivity/NETD: <70 mK
  • Field of view (FOV): 53.6°
  • Minimum focus distance:
    - Thermal: 0.1 m (3.94 in)
    - MSX®: 0.3 m (11.8 in)
  • Image frequency: 8.7 Hz
  • Focus: Focus free
  • Spectral range: 8–14 μm
  • Screen size: 3.5 in
  • Digital camera: 5 MP
  • Digital camera focus: Fixed

Image Presentation

  • Image adjustment:
    - Automatic level and span
    - Manual level and span
  • Image modes:
    - Infrared image
    - Visual image
    - MSX (Embossed visual details on thermal image)
    - Picture-in-picture (IR area on visual image)
  • Gallery: Thumbnails and custom folder structure
  • Colour palettes:
    - Iron
    - Grey
    - Rainbow
    - Rainbow HC
  • Auto orientation: Yes
  • Touch screen: Capacitive touch

Measurement & Analysis

  • Object temperature range: -20 to 300°C (-4 to 572°F)
  • Accuracy:
    - 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
    - 100 to 300°C (212 to 572°F): ±3%
    - [Ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
  • Measurement functions:
    - Spot
    - Box with max./min.
  • Measurement correction:
    - Emissivity; matt/semi-matt/semi-gloss + custom value
    - Reflected apparent temperature
    - Atmospheric compensation

Image Storage

  • Storage media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
  • Image storage capacity: >5000 images
  • Image file format: Standard JPEG, 14-bit measurement data included

Communication & Connectivity

  • Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
  • USB: USB 2.0, Type-C connector
  • Bluetooth: PAN
  • Image upload: Directly upload images to FLIR Ignite cloud library and services

Additional Information

  • Battery type: Rechargeable built-in Lithium ion battery
  • Battery operating time: 4 hours
  • Charging system: USB-C (1 A)
  • Charging time: 2 hours
  • External power operation: 5 V, USB-C
  • Operating temperature range: -10 to 50°C (14 to 122°F)
  • Storage temperature range: -40 to 70°C (-40 to 158°F)
  • Encapsulation: Camera housing and lens: IP54 (IEC 60529)
  • Drop test: Designed for 2 m (6.6 ft)
  • Weight (including battery): 0.19 kg (0.42 lb)
  • Size (L × W × H): 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
  • Tripod mounting (built-in): UNC 1⁄4”-20
  • Certifications:
    - EN 301 487-1
    - EN 301 489-17
    - CC 47 CFR Part 15 Class B
    - EN 61000-4-8 level 5
    - ETSI EN 300 328EN 301 489
    - FCC Title 47 CFR Part 15
    - RSS-247 Issue 2
    - UL 1642
    - EN 62133 ed 2
    - BC Title 20
    - 10 CFR Section 430.23 (aa)
    - EN 62368-1
    - REACH Regulation EC 1907/2006
