FLIR E8 Wifi Thermal Imaging Camera

SKU
FLIRE8WIFI
  • High thermal sensitivity with a temperature resolution of 320 x 240 pixel
  • Min/max area box with hot/cold spots and Isotherm alarms
  • MSX® image enhancement with integrated digital camera
More Info
inc VAT £3,118.80 ex VAT £2,599.00
Typically ships in 5-7 working days


Product Details

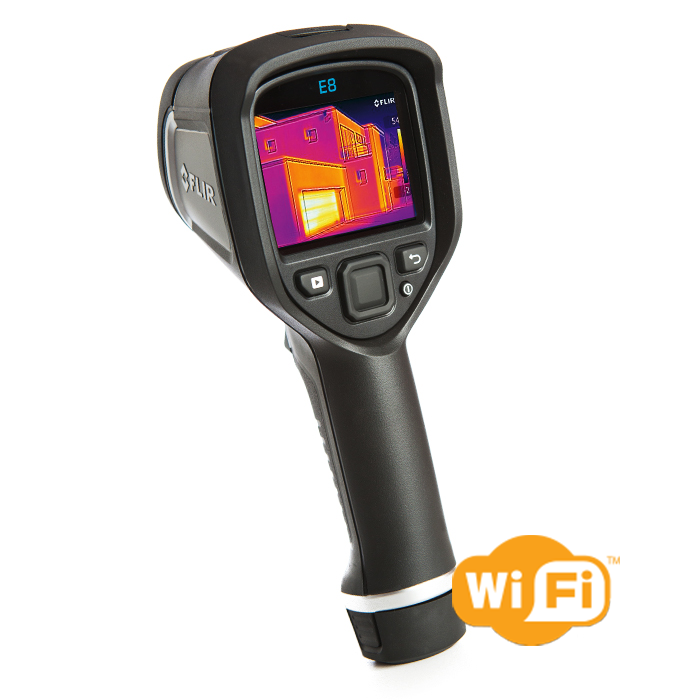

FLIR E8 Wifi Thermal Imaging Camera

The FLIR E8 Wifi Thermal Imaging Camera is a sophisticated instrument that stands out for its powerful thermal imaging capabilities and intuitive operation.

High thermal resolution (320 x 240 pixel) provides an extremely clear thermal image, particularly as the high thermal sensitivity (60mK) detects temperature differences of just 0.06˚C These capabilities make the FLIR E8 Wifi useful in a range of industries and it can even be used for certain veterinary purposes. The large 45˚ field of view aids building inspections by allowing the user to capture a large area at once, thus saving time.

Three measurement modes, a centre spot, a Min/Max box, isotherms and hot/cold spots all add greater detail and depth to inspections undertaken with the FLIR E8 Wifi.

An integrated digital camera takes photographs to go alongside the thermograph files from the thermal sensor which enables easier analysis. Furthermore, the FLIR E8 Wifi also boasts MSX® image enhancement which uses the visible-light image to add detail and perspective to the thermal display.

As the name suggests, the FLIR E8 Wifi can communicate files wirelessly to smart devices over a local wifi signal thus saving time and smoothing the inspection process. Once an image has been uploaded to a smartphone or tablet, it can be edited and put into a report using FLIR Tools Software for Windows and Macs.

With excellent temperature measurement and advanced depiction of heat distribution in an object, the FLIR E8 Wifi constitutes an excellent tool for inspecting buildings and much more.

FLIR part number: 63908-0805

  320 x 240 pixel resolution
The FLIR E8 resolution is 320 x 240 pixels, allowing a range of valuable thermal information to be displayed to isolate faults.

  Temperature Range & Accuracy
Detects 0.15°C temperature differences from -20 to 250°C with 2% accuracy.

  Built-in Digital Camera
Visible light camera captures images for comparison and quicker fault location on thermal images.

  Multi Spectral Dynamic Imaging (MSX)
New feature that overlays a digital image onto thermal image and thus providing greater visual detail.

  Wi-Fi Connectivity
Connects camera to mobile devices so you can analyse stored images, and email findings quickly from the field. *Requires Free FLIR Tools Mobile App for Android and iPhone.

  Picture-in-Picture
Overlays an infrared image onto a digital image to quickly locate faults and anomalies.

  Measurement Functions
Spotmeter, area with max/min, hot & cold spot recognition with colour alarm.

  Thumbnail Gallery
Easy access gallery allows users to quickly review captured infrared imagery.

  Reporting & Analysis Software Included
FLIR Tools software is available for free download, allowing comprehensive inspection reports to be generated.
What's In The Box?
  • FLIR E8 Wifi Thermal Camera
  • Hard transport case
  • 2 x FLIR Li-ion rechargeable batteries
  • Battery charger station
  • USB cable
  • Power supply including multiplugs
  • Calibration Certificate
  • Getting Started Guide
  • Warranty Extension or Registration Card
More Information
Specification
  • Field of view (FOV): 45° × 34°
  • IR resolution: 320 × 240 pixels
  • Image frequency: 9Hz
  • Thermal sensitivity/NETD: < 0.06°C
  • Temperature range: -20°C to 250°C
  • Accuracy: ±2°C or ±2% of reading
  • Adjustable Emissivity: 0.1 to 1.0
  • Digital Camera: 640 x 480 pixels
  • File formats: JPEG
  • Display: 3 inch colour LCD
  • Battery type: Rechargeable Li Ion battery
  • Dimensions: 244 x 95 x 140mm
  • Weight: 575g
