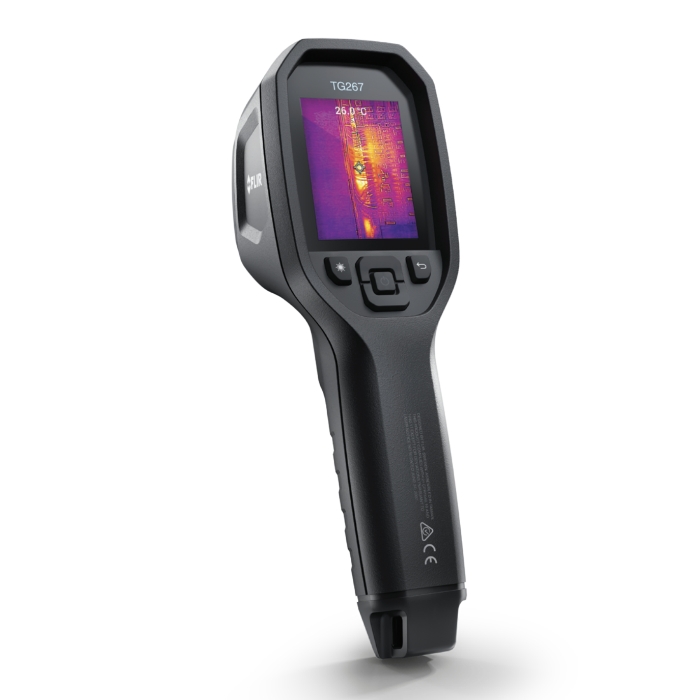

Teledyne FLIR TG267 Thermal Camera

SKU
FLIRTG267
  • Detect heating issues swiftly with patented MSX-enhanced thermal and visual images
  • Measure temperatures (-25 to 380˚C) with a true 160x120 infrared pixel imager
  • Combination contact and non-contact applications for tough working environments
More Info
inc VAT £488.40 ex VAT £407.00
Typically ships in 7-10 working days


Product Details

Teledyne FLIR TG267 Thermal Camera

The Teledyne FLIR TG267 Thermal Camera is far more than a simple single-spot infrared thermometer, by utilising FLIR's patented MSX technology the TG267 is capable of staggeringly effective and efficient thermal troubleshooting. Substantially reducing diagnostic time whilst simultaneously reporting and monitoring equipment over a prolonged period of time, this pixel imager is perfect for examining everything from suspect electrical connections to mechanical breakdowns. Fully capable of measuring temperatures anywhere within a range of -25˚C to 380˚C, the non-contact diagnostic capabilities are complimented by the inclusion of a Type-K Thermocouple probe for contact-measurement readings up to 260˚C.

Featuring FLIR patented Multi-Spectral Dynamic Imaging (MSX), the TG267 produces images with advanced clarity by embossing visual details onto thermal images. This added context within the image itself provides an operator with an efficient method for gauging severity, pinpointing faults and troubleshooting repairs. Marvel at the clear, concise imagery presented by the bright 2.4 inch colour display of the TG267 and select a preferred palette from a pre-set range. The true 160 x 120 IR pixel screen of the camera, with its simple user interface is the perfect tool for demonstrating a problem and the subsequent solution.

Use the intuitive hot / cold spot tracking and bullseye laser pointer of the TG267 to identify the exact area of measurement, keep a documented record of your maintenance history by storing up to 50,000 images in the incorporated 4GB memory card. With Bluetooth connectivity enabled, before and after images can be uploaded and stored while still in the field via a METERLINK connection to the FLIR Tools mobile app. The bright LED flashlight and rechargeable lithium ion battery of the TG267 furthers the portable functionality of the camera, while the IP54 rated and 2-meter drop tested enclosure ensures a heavy-duty device designed for the toughest tasks.

Key Features

  • Single-spot infrared thermometer
  • Combination contact / non-contact temperature measurement capabilities
  • Measure temperature up to -25˚C to 380˚C (-13˚F to 716˚F)
  • Type-K thermocouple probe capable of reading up to 260˚C (500˚F)
  • Patented FLIR MSX technology for additional visual clarity
  • Hot and cold spot tracking
  • Bullseye laser pointer for advanced targeting accuracy
  • Store up to 50,000 images on the 4GB memory card
  • 2.4" inch colour display
  • Customisable palette options
  • Bluetooth connection to the FLIR Tools mobile app
  • Bright LED flashlight
  • Rechargeable Li-ion battery
  • Portable, sturdy design
  • IP54 rated and 2-meter drop tested
  • 2 - 10 year FLIR warranty

FLIR part number: TG267

What's In The Box?
  • 1 x FLIR TG267 Thermal Camera
  • 1 x Type-K Thermocouple
  • 1 x Wrist Strap Lanyard
  • 1 x USB Cable
  • 1 x Pouch
  • 1 x Printed Documentation
More Information
Specification

Imaging and Optical Data

  • IR resolution: 160 × 120 pixels
  • Digital image enhancement: Yes
  • Thermal sensitivity/NETD: <70 mK
  • Field of view (FOV): 57° × 44°
  • Minimum focus distance: 0.3 m (0.98 ft)
  • Distance to spot ratio: 24:1
  • Image frequency: 8.7 Hz
  • Focus: Fixed
  • Focal plane array/spectral range: Uncooled microbolometer/7.5–14 μm
  • Detector pitch: 12μm

Image presentation

  • Display resolution: 320 × 240 pixels
  • Screen size: 2.4 in. portrait
  • Color palettes:
    Iron
    Rainbow
    White hot
    Black hot
    Arctic
    Lava
  • Image adjustment: Automatic
  • Image modes:MSX® (Multi Spectral Dynamic Imaging)
  • Visual with temperature reading
  • Gallery: Yes

Measurement and Analysis

  • Object temperature range : -25°C to 380°C (-13°F to 716°F)
  • Measurement accuracy:
    -25°C to 50°C (-13°F to 122°F): up to ±3°C (±7°F)
    50 to 100°C (122 to 212°F): ±1.5°C (±3°F) or ± 1.5% whichever is greater
    100°C to 380°C (212°F to 716°F): ±2.5°C (±6°F) or 2.5% whichever is greater
  • IR temperature resolution: 0.1°C (0.2°F)
  • Repeatability of reading: ±1% of reading or ±1°C (2°F), whichever is greater
  • Response time: 150ms
  • IR thermometer measurement: Continuous scanning
  • Minimum measurement distance: 0.26 m (0.85 ft)
  • Type-K range: Included Type-K probe: up to 260°C (500°F)
  • Type-K accuracy: ± (1.0% + 3°C (7°F))
  • Spotmeter: Center spot on/off

Set-Up and Service Functions

  • Set-up commands:
    Local adaptation of units, language, date, and time formats
    Screen brightness (high, medium, low)
    Gallery, deletion of images
  • Emissivity correction: Yes - 4 preset levels with custom adjustment of 0.1–0.99

Image Storage and Visual Camera

  • Storage capacity on 4 GB card: 50,000 images
  • Image file format: JPEG w/ spot temp data
  • Digital camera resolution: 2 MP (1600 × 1200 pixels)
  • Field of view (FOV): 71° × 56°, adapts to IR lens

Light and Laser

  • Flashlight: 100 lumens LED, on/off option
  • Class 1 laser: Projects center spot and outlines circular measurement area to indicate size

Data Communication Interfaces

  • Bluetooth®: BLE
  • USB: Type-C: data transfer, power

Additional Data

  • Battery type: Rechargeable 3.7 V Li-ion battery
  • Battery operating time: 5 hrs scanning
  • Battery charging time: 4 hrs to 90%
  • Power management: Adjustable: off, 5 min, 15 min, 30 min
  • Shock/vibration: 25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6)
  • Drop: Designed for 2 m (6.56 ft)
  • Weight: 0.394 kg (13.9 oz)
  • Size (L x W x H): 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
