Fluke 116 True RMS Multimeter

Fluke
SKU: FLUKE116
  • Suitable for HVAC thanks to µA and temperature measurement
  • Takes readings for AC/DC voltage, frequency, resistance & capacitance
  • LoZ and True RMS testing improve accuracy
More Info
In Stock - Available Next Day

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

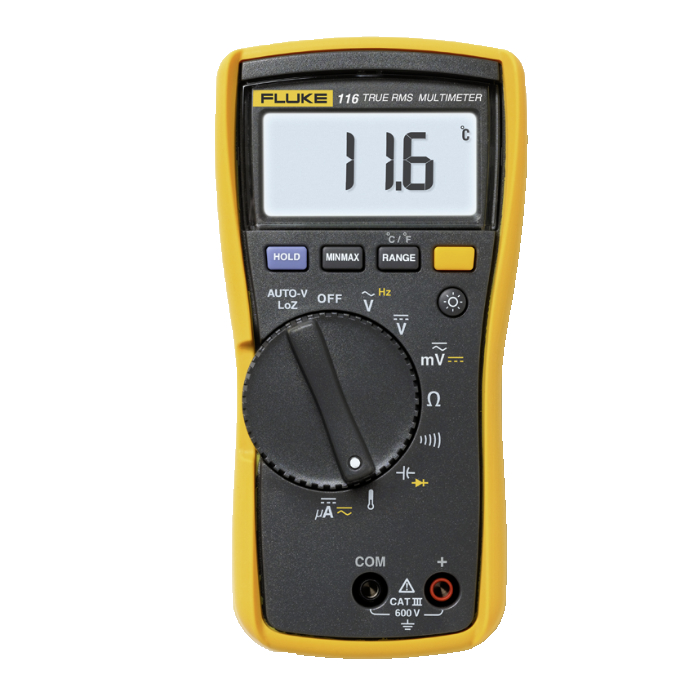

Fluke 116 True RMS Multimeter

The Fluke 116 True RMS Multimeter is a very versatile multimeter which features AC/DC voltage measurement up to 600V, resistance measurement, capacitance measurement and frequency measurement. The device can also carry out continuity and diode testing in addition to showing readings millivolt whilst microamp measurement makes it suitable for testing flame sensors. Finally, there is also an option for temperature measurement between -40˚C to +400˚C via the Type K thermocouple that comes as standard with the Fluke 116 which makes it suitable for inspecting HVAC systems.

The measurement process is accelerated and simplified by the advanced features of the Fluke 116. Firstly, the device can automatically detect whether voltage is AC or DC whilst low input impedance (LoZ) testing eliminates problems caused by ghost voltage. True RMS measurement aids accuracy for AC values whilst auto ranging instantly chooses the best range and resolution for the parameter under inspection unless the user overrides it through manual ranging. Results are shown on the backlit LCD screen which has options for data hold and min/max/avg recording to give the user a detailed picture of a target system’s outputs.

The device inputs are rated as Cat III up to 600V for safety and there is a visual warning for dangerous voltage levels to add a further layer of protection. The Fluke 116 comes supplied with a type-K thermocouple and test leads and constitutes a really handy multimeter for use in the HVAC industry.

Fluke part number: 116

Fluke Digital Multimeter Comparisons:

  Fluke 113 Fluke 114 Fluke 115 Fluke 116 Fluke 117
VoltAlert (Non-contact Voltage Detector         ✔
AutoVolt/LoZ (Automatic AC/DC Voltage Selection) ✔ ✔   ✔ ✔
VCHEK LoZ ✔
Analog bargraph ✔ ✔ ✔ ✔ ✔
True- RMS for accurate measurements on non-linear loads ✔ ✔ ✔ ✔ ✔
Min/Max recording ✔ ✔ ✔ ✔ ✔
Display hold ✔ ✔ ✔ ✔ ✔
Mirco Amp Measurement       ✔
Diode Test ✔   ✔ ✔ ✔
Temperature K-Type Thermocouple       -40º to +400ºC
Display count- 6000 Readings ✔ ✔ ✔ ✔ ✔
Backlit Display- 3 3/4 digits ✔ ✔ ✔ ✔ ✔
CATIII 600V safety rated ✔ ✔ ✔ ✔ ✔
DC Current     10A 600µA 20A
DC Accuracy ±(2.0%+3) ±(0.5%+2) ±(0.5%+2) ±(0.5%+2) ±(0.5%+2)
Resistance 60kΩ 40MΩ 40MΩ 40MΩ 40MΩ
Capacitance 10,000µF   10,000µF 10,000µF 10,000µF
Frequency     50kHz 50kHz 50kHz
Continuity Range   600Ω 600Ω 600Ω 600Ω
Continuity Accuracy Buzzer on <20Ω, off >250Ω; detects opens or shorts of >500µs Buzzer on <20Ω, off >250Ω; detects opens or shorts of >500µs Buzzer on <20Ω, off >250Ω; detects opens or shorts of >500µs Buzzer on <20Ω, off >250Ω; detects opens or shorts of >500µs Buzzer on <20Ω, off >250Ω; detects opens or shorts of >500µs
Three-year Warranty ✔ ✔ ✔ ✔ ✔

Key Features

  • AC/DC voltage range: 0 to 600V
  • AC/DC current range: 0 to 600µA (ideal for testing flame detectors)
  • Resistance range: 0 to 50MΩ
  • Capacitance range: 0 to 9999µF
  • Frequency range: 0 to 50kHz
  • Temperature range: -40˚C to +400˚C
  • Millivolt range for AC and DC
  • True RMS measurement for AC readings
  • Low input impedance (LoZ) testing
  • Auto and manual ranging
  • AutoVolt detects AC or DC voltage
  • Clear, backlit screen
  • Min/max/avg recording and data hold
  • Cat III to 600V

What's In The Box?

  • Fluke 116 True RMS Multimeter
  • Instructions for Fluke 116 True RMS Measurement
  • Type K thermocouple
  • Red/black test leads
  • 1 x 9V battery
Specification

DC Millivolts

  • Range: 600.0mV
  • Resolution: 0.1mV
  • Accuracy: 0.5% + 2

DC Voltage

  • Range: 6V / 60V / 600V
  • Resolution: 0.001V / 0.01V / 0.1V
  • Accuracy: 0.5% + 2

Auto-V Loz True RMS

  • Range: 600V
  • Resolution: 0.1V
  • Accuracy: 2% + 3 (45 to 500Hz) / 4% + 3 (500Hz to 1kHz)

True RMS AC millivolts

  • Range: 600.0mV
  • Resolution: 0.1mV
  • Accuracy: 1% + 3 (45 to 500Hz) / 2% + 3 (500Hz to 1kHz)

True RMS AC Voltage

  • Range: 6V / 60V / 600V
  • Resolution: 0.001V / 0.01V / 0.1V
  • Accuracy: 1% + 3 (45 to 500Hz) / 2% + 3 (500Hz to 1kHz)

Continuity Testing

  • Range: 600Ω
  • Resolution: 1Ω
  • Accuracy: Buzzer sounds at <20Ω, switches off at >250Ω; detects open or short circuits of 500µs or longer

Resistance

  • Ranges: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 40MΩ
  • Resolutions: 0.1Ω / 0.001kΩ / 0.01kΩ / 0.1kΩ / 0.001MΩ / 0.01MΩ
  • Accuracy: 0.9% + 2 / 0.9% + 1 / 0.9% + 1 / 0.9% + 1 / 0.9% + 1 / 5% + 2

Diode Test

  • Range: 2V
  • Resolution: 0.001V
  • Accuracy: 0.9% + 2

Capacitance

  • Ranges: 1000nF / 10.00µF / 100.0µF / 9999µF
  • Resolutions: 1nF / 0.01µF / 0.1µF / 1µF
  • Accuracy: 1.9% + 2 / 1.9% + 2 / 1.9% + 2 / 1.9% + 2 (100µF - 1000µF); 5% + 20 (>1000µF)

LoZ Capacitance

  • Range: 1nF to 500µF
  • Accuracy: 10% + 2 typical
Temperature
  • Range: -40˚C to + 400˚C (-40˚F to +752˚F)
  • Resolution: 0.1˚C (0.2˚F)
  • Accuracy: 1% + 10 (1% + 18)

True RMS AC Current (45 to 1kHz)

  • Ranges: 600µA
  • Resolutions: 0.1µA
  • Accuracy: 1.5% + 3 (≤500Hz) / 2.5% + (>500Hz)

DC Current

  • Ranges: 600µA
  • Resolution: 0.1µA
  • Accuracy: 1% + 2

Frequency

  • Ranges: 99.99Hz / 999.9Hz / 9.999kHz / 50.00kHz
  • Resolutions: 0.01Hz / 0.1Hz / 0.001kHz / 0.01kHz
  • Accuracy: 0.1% + 2
