Fluke FEV350 EV Charging Station Analyser (Type 2 Plug)
SKU: FLUKEFEV350T2
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
Key Features
- A complete solution for safety and performance testing of AC EV charging stations, with Type 1 or 2 Plug Connectors
- The FEV350 can be bought with TruTest EV Charging software which enhances documentation and analysis to be a simple task
- With a plethora of tests and measurements available, the FEV350 is a must-have tool for industry professionals
Related Categories
£1,595.00
£1,914.00
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
Key Features
- A complete solution for safety and performance testing of AC EV charging stations, with Type 1 or 2 Plug Connectors
- The FEV350 can be bought with TruTest EV Charging software which enhances documentation and analysis to be a simple task
- With a plethora of tests and measurements available, the FEV350 is a must-have tool for industry professionals
Related Categories
PROMOTION: Spend £100 (ex VAT) or more on any qualified Fluke products and claim FREE Tools From Fluke!
[Click here to learn more] Offer valid from 1st September to 31st December 2026.
Fluke FEV350 EV Charging Station Analyser (Type 2 Plug)
The Fluke FEC350 EV Charging Station Analyser (Type 2 Plug) has been designed with technicians who need to perform and document multiple tests with high accuracy and speed in mind. The tool eliminates the need for the user to carry multiple tools around, offering an all-in-one tool that is extremely safe for use. With TruTest EV Charging software, the user can document and report on the test results, and also view pass/fail indications and access predetermined test plans.
The FEV350 can perform several test measurements, such as PE (protective) earth pre-testing, visual inspections, 30mA RCD + 6mA RDC-DD trip testing, nominal voltage + phase sequencing, auto control pilot (CP) with waveform analysis, proximity piloting, and error testing.
The FEV350 can also conduct these supporting measurements:
- Earth bond
- Insulation
- Loop/line impedance
The analyser is designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722 standards, which gives electricians free reign to conduct the testing that they require. The FEV350 has a colour LCD display with on-screen instructions, which provide the user with an easy walkthrough of tests and provide a Pass/Fail indication on all test results. The above supporting measurements can be conducted with a compatible Fluke multifunction installation tester, which allows the user to run installation certifications and inspections via wireless Bluetooth connection, wiring configuration diagrams, and info screens for seamless integration with TruTest software for report generation. With predetermined test plans and pass/fail indications on measuremen results, the FEV350 simplifies analysis and the time spent testing.
Key Features
- Complete solution for safety and performance testing of AC EV charging stations
- For use with the TruTest software
- Can run a variety of measurements and tests
- Also available with Type 1 & Type 2 Plug Connectors and as part of a Fluke 1664FC kit
- Provides determined Pass/Fail indications on results
- Designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722
- The Type 2 Connector is unique as it works with stations with a socket outlet or connector
- Compatible with Fluke multifunction installation testers for installation certification/inspections via wireless Bluetooth connection
Fluke part number: 5348097

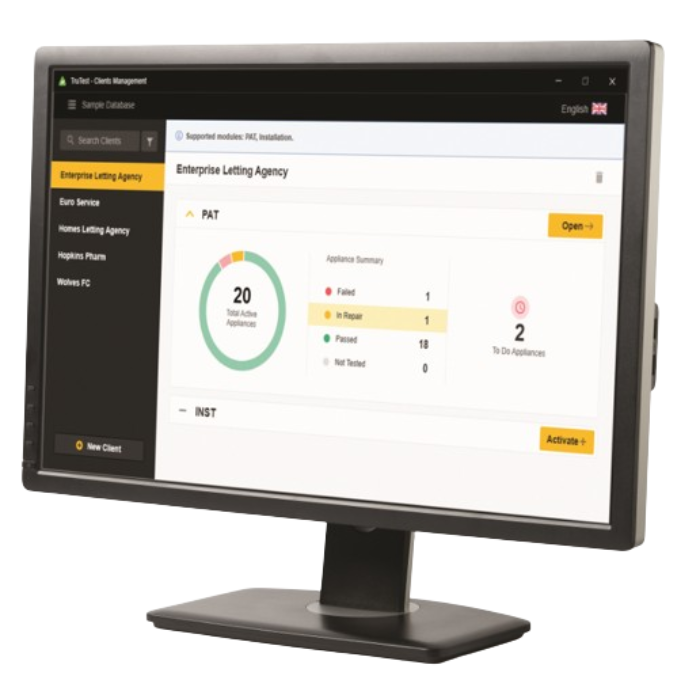

Fluke TruTest Software
Sometimes, compiling a report to close out a project can be time-consuming and challenging. With Fluke TruTest, the user can cover all of the certification and documentation that is needed. TruTest allows for EV Charging asset management, data storage, and reporting on a single, easy-to-use platform. The user can easily manage measurement data from EVSE inspections, quickly create inspection and reports with collated data, and access the latest firmware for the regular upkeep and updates for the FEV350.
The following options of Fluke TruTest are available for this product, and can be selected through the drop-down menu at the top of this page. They are as follows:
- Fluke TruTest software license code Lite- The ability to work on 1 workstation and to add 2 users to the 1 registered workstation
- Fluke TruTest software license code Advanced- The ability to work on 1 workstation and to add unlimited users to the workstation
| Fluke TruTest Lite Version | Fluke TruTest Advanced Version | |
|---|---|---|
| Database Structure (local standalone or server based) | ✔ | ✔ |
| Maximum Addable clients | 2 | Unlimited |
| Maximum Addable Sites/Clients | 5 | Unlimited |
| Maximum Addable Locations /clients | 50 | Unlimited |
| Maximum Addable Appliances/Clients | 1000 | Unlimited |
| Installation Tester (INST) module | ✔ | ✔ |
| Maximum addable Clients | 2 | Unlimited |
| Maximum Addable Sites/clients | 5 | Unlimited |
| Maximum Addable Locations/Clients | 25 | Unlimited |
| Maximum Addable Appliances/Clients | 200 | Unlimited |
| Include Demo Database | ✔ | ✔ |
| Create Clients | ✔ | ✔ |
| Rename Clients | ✔ | ✔ |
| Delete Clients | ✔ | ✔ |
| Create Nodes | ✔ | ✔ |
| Move Nodes | ✔ | ✔ |
| Rename Nodes | ✔ | ✔ |
| Delete Nodes | ✔ | ✔ |
| Edit Client Information | ✔ | ✔ |
| Edit Site Information | ✔ | ✔ |
| Edit Location Information | ✔ | ✔ |
| Edit Appliance Information | ✔ | ✔ |
| Edit Test Information | ✔ | ✔ |
| Edit Site Information | ✔ | ✔ |
| Add Test Step | ✔ | ✔ |
| Delete Tets Step | ✔ | ✔ |
| Edit Test Step | ✔ | ✔ |
| Add Remarks | ✔ | ✔ |
| Add Attachment (file) to Remark | ✔ | |
| Edit Remark | ✔ | ✔ |
| Edit Client Information | ✔ | ✔ |
| Delete Remark | ✔ | ✔ |
| Read Data from Instrument | ✔ | ✔ |
| Read Data from File | ✔ | ✔ |
| Read Data Conflict Management | ✔ | ✔ |
| Read Data Assign Tree Structure | ✔ | ✔ |
| Load Data to Instrument | Compatible tool required | |
| Use search | ✔ | ✔ |
| Show Reports | ✔ | ✔ |
| Show certificates | ✔ | ✔ |
| Save (PDF, XML) Print reports | ✔ | ✔ |
| Save (PDF, XML) Print certificates | ✔ | ✔ |
| Add Engineers | ✔ | ✔ |
| Edit Engineers | ✔ | ✔ |
| Delete Engineers | ✔ | ✔ |
| Print Engineers | ✔ | ✔ |
| Add Test Instruments | ✔ | ✔ |
| Edit Test Instruments | ✔ | ✔ |
| Delete Test Instruments | ✔ | ✔ |
| Print Test Instruments | ✔ | ✔ |
| Edit My Company Information | ✔ | ✔ |
| Edit Company Logo | ✔ | |
| Edit Certification Logo | ✔ | |
| View Auto Test Codes | ✔ | ✔ |
| Select Favourite Auto Test Codes | ✔ | ✔ |
| Print Favourite Auto Test Codes | ✔ | ✔ |
| Create Customised Auto Test Codes | ✔ | |
| Edit Customised Auto Test Codes | ✔ | |
| Copy Customised Auto Test Codes | ✔ | |
| Delete Customised Auto Test Codes | ✔ | |
| Print Customised Auto Test Codes | ✔ | |
| Create Backup | ✔ | ✔ |
| Restore Backup | ✔ | ✔ |
| Maximum Users | 2 | Unlimited |
| Add Users | ✔ | ✔ |
| Edit Users | ✔ | ✔ |
| User Roles | ✔ | ✔ |
| Edit User Roles | ✔ | ✔ |
| Print User Lists | ✔ | ✔ |
| Edit Limits | ✔ | ✔ |
| Expire Duration | Unlimited | Unlimited |
| Free Updates | 5 years (calculated from the serial code entry date) | 5 years (calculated from the serial code entry date) |
| Expiration Pop Up Notice | Every 30 days after 5 year free update period | Every 30 days after 5 year free update period |
| Activation Date With Days Left Until Expiration | ✔ | ✔ |
What's In The Box?
- FEV350 EV Charging Station Analyser
- Type 2 Plug
- Type 2 Zero Adaptor
- TPAK Magnetic Hanger
- Soft Carrying Bag
| Yes |
Temperature
Relative Humidity
Wireless radio, Bluetooth 5.0
|
Kit Options
£2,299.00
(ex VAT)
£2,758.80
(inc VAT)
