Fluke 1664FC + FEV350 Multifunction Tester and EV Analyser Kit

Fluke
SKU: FLUKE1664FEV350
  • This kit allows the user to combine two powerful tools to receive accurate test results and much more
  • The FEV350 can be used with TruTest software to collaborate with other users and share test results that have been collated
  • When used with the 1664FC, the FEV350 can test the saftery of electric vehicle charging stations with AC Charging Mode 3
More Info
£2,638.80 £2,199.00
Typically ships in 5-7 working days

"Buy a Fluke, get a FREE Fluke" promotion. Spend £150 or more on any qualified Fluke product(s) and claim a FREE Fluke gift!
[Click here to learn more] Offer is valid from 1st March to 31st August 2024.

Fluke 1664FC + FEV350 Multifunction Tester and EV Analyser Kit

The Fluke 1664FC + FEV350 Multifunction Tester and EV Analyser Kit allows the user to check on the safety and operation of an electric vehicle charging station. The kit features two Fluke tools, which are:

  • Fluke 1664FC Multifunction Tester
  • Fluke FEV300 EV Charging Test Adaptor with a Type 2 Plug

Fluke 1664FC Multifunction Tester

The Fluke 1664FC Multifunction Tester allows the user to test the safety of electrical installations in a range of environments, whether that be industrial, commercial, or domestic. Equipped with an exciting, innate ability to run 6mA RDC tests, the 1664FC works hand-in-hand with the FEV350 to provide the accurate and reliable testing of electric vehicle supply equipment (EVSE).

The 1664FC can run a variety of tests, including Insulation, Loop, Line, and Earth Resistance, as well as Continuity testing and much more. A rotary dial allows for the simple selection of the required function or test. With Auto Test function, ring testing, High-current Loop mode, Pre-test function, earth volt touchpad, and a zero adaptor, the 1664FC displays results on a large backlit display. The user can also opt for their 1664FC to be calibrated by ticking the checkbox at the top of the page.

If you would like more information on the Fluke 1664FC Multifunction Tester, click here.

Fluke FEV350 EV Charging Test Adaptor with Type-2 Plug

When the FEV350 is used alongside the 1664FC, the Charging Test Adaptor is able to test the functionality and safety of electric vehicle charging stations. It is able to simulate an electric vehicle or charging cable to conduct PE Pre-Tests, Phase Indication Tests, and induce both Proximity Pilot (PP) State and Control Pilot (CP) States.

The FEV350 is a great addition to a toolkit, as it offers speed and high-accuracy without compromising reliability. With additional TruTest software, the user can collaborate with other users and make the most out of testing and results. The analyser meets IEC/EN 61851-1 and IEC/HD 60364-7-722 standards, which enables the electrician to conduct the testing they desire.

If you would like more information on the Fluke FEV350, click here.

Fluke 1664FC Key Features

  • Insulation test voltages of 50V, 100V, 250V, 500V and 1000V DC
  • Measurement of AC voltage, insulation resistance, loop and line impedance (ZI)
  • Measurement of prospective earth fault current, tripping speed, earth resistance, and RCD/FI tripping current
  • Continuity testing, RCD testing, and ramp testing
  • Time-saving auto-test function
  • Insulation PreTest detects appliances to avoid damage
  • Earth Volt Touchpad detects high earth voltage
  • Cat III to 500V overvoltage protection rating/li>
  • Fluke Connect and FlukeCloud connectivity
  • Impressive range of additions including strap, test leads, calibration certificate and carry case
  • Lightweight unit: 1.3kg

Fluke FEV350 Key Features

  • Complete solution for safety and performance testing of AC EV charging stations
  • For use with the TruTest software
  • Can run a variety of measurements and tests
  • Available with Type 1 or Type 2 Plug Connectors
  • Provides determined Pass/Fail indications on results
  • Designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722
  • The Type 2 Connector is unique as it works with stations with a socket outlet or connector
  • Compatible with Fluke multifunction installation testers for installation certification/inspections via wireless Bluetooth connection

Fluke part number: 5265319

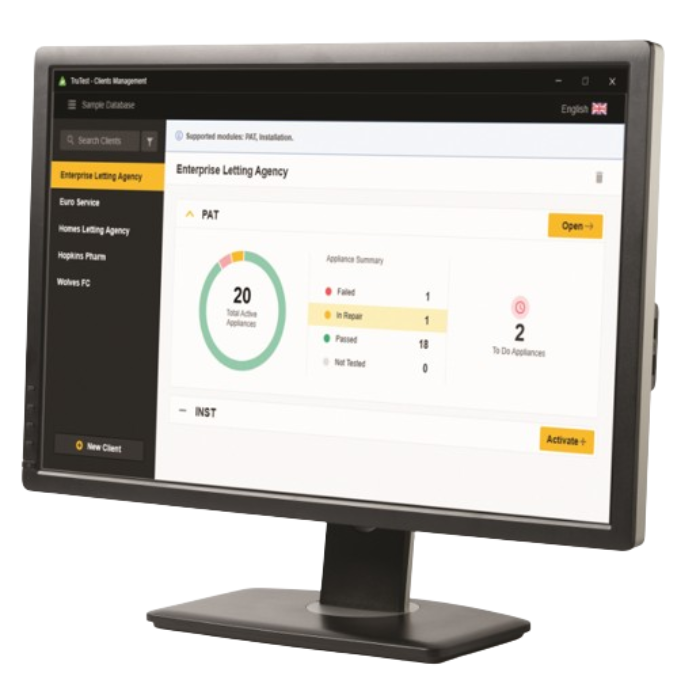

Fluke TruTest Software

Sometimes, compiling a report to close out a project can be time-consuming and challenging. With Fluke TruTest, the user can cover all of the certification and documentation that is needed. TruTest allows for EV Charging asset management, data storage, and reporting on a single, easy-to-use platform. The user can easily manage measurement data from EVSE inspections, quickly create inspection and reports with collated data, and access the latest firmware for the regular upkeep and updates for the FEV350.

The following options of Fluke TruTest are available for this product, and can be selected through the drop-down menu at the top of this page. They are as follows:

The following options are available for the Lite version of TruTest:

  • Fluke TruTest software license code Lite- The ability to work on 1 workstation and to add 2 users to the 1 registered workstation
  • Fluke TruTest software license code Advanced- The ability to work on 1 workstation and to add unlimited users to the workstation
  Fluke TruTest Lite Version Fluke TruTest Advanced Version
Database Structure (local standalone or server based) ✔ ✔
Maximum Addable clients 2 Unlimited
Maximum Addable Sites/Clients 5 Unlimited
Maximum Addable Locations /clients 50 Unlimited
Maximum Addable Appliances/Clients 1000 Unlimited
Installation Tester (INST) module ✔ ✔
Maximum addable Clients 2 Unlimited
Maximum Addable Sites/clients 5 Unlimited
Maximum Addable Locations/Clients 25 Unlimited
Maximum Addable Appliances/Clients 200 Unlimited
Include Demo Database ✔ ✔
Create Clients ✔ ✔
Rename Clients ✔ ✔
Delete Clients ✔ ✔
Create Nodes ✔ ✔
Move Nodes ✔ ✔
Rename Nodes ✔ ✔
Delete Nodes ✔ ✔
Edit Client Information ✔ ✔
Edit Site Information ✔ ✔
Edit Location Information ✔ ✔
Edit Appliance Information ✔ ✔
Edit Test Information ✔ ✔
Edit Site Information ✔ ✔
Add Test Step ✔ ✔
Delete Tets Step ✔ ✔
Edit Test Step ✔ ✔
Add Remarks ✔ ✔
Add Attachment (file) to Remark   ✔
Edit Remark ✔ ✔
Edit Client Information ✔ ✔
Delete Remark ✔ ✔
Read Data from Instrument ✔ ✔
Read Data from File ✔ ✔
Read Data Conflict Management ✔ ✔
Read Data Assign Tree Structure ✔ ✔
Load Data to Instrument   Compatible tool required
Use search ✔ ✔
Show Reports ✔ ✔
Show certificates ✔ ✔
Save (PDF, XML) Print reports ✔ ✔
Save (PDF, XML) Print certificates ✔ ✔
Add Engineers ✔ ✔
Edit Engineers ✔ ✔
Delete Engineers ✔ ✔
Print Engineers ✔ ✔
Add Test Instruments ✔ ✔
Edit Test Instruments ✔ ✔
Delete Test Instruments ✔ ✔
Print Test Instruments ✔ ✔
Edit My Company Information ✔ ✔
Edit Company Logo   ✔
Edit Certification Logo   ✔
View Auto Test Codes ✔ ✔
Select Favourite Auto Test Codes ✔ ✔
Print Favourite Auto Test Codes ✔ ✔
Create Customised Auto Test Codes   ✔
Edit Customised Auto Test Codes   ✔
Copy Customised Auto Test Codes   ✔
Delete Customised Auto Test Codes   ✔
Print Customised Auto Test Codes   ✔
Create Backup ✔ ✔
Restore Backup ✔ ✔
Maximum Users 2 Unlimited
Add Users ✔ ✔
Edit Users ✔ ✔
User Roles ✔ ✔
Edit User Roles ✔ ✔
Print User Lists ✔ ✔
Edit Limits ✔ ✔
Expire Duration Unlimited Unlimited
Free Updates 5 years (calculated from the serial code entry date) 5 years (calculated from the serial code entry date)
Expiration Pop Up Notice Every 30 days after 5 year free update period Every 30 days after 5 year free update period
Activation Date With Days Left Until Expiration ✔ ✔

What's In The Box?

  • FEV350 EV Analyser
  • 1664 FC Multifunction Tester
  • Type 2 Plug
  • Type 2 Zero Adaptor
  • TPAK Magnetic Hanger
  • Soft Carrying Bag
  • 6 x AA (IEC LR6) Cell Batteries
  • C1600 Hard Carrying Case
  • Heavy Duty Mains Cord
  • STD Standard Test Lead Set
  • Padded Carrying and Waist Strap
  • Quick Reference Guide
  • TP165X Remote Control Probe and Lead Set
Specification

Fluke FEV350 Specifications

  • Input electrical ratings - 1 Φ: 250V max, 3 Φ: 230/400V max, 50/60Hz, max 1 A
  • Internal power consumption - 3W max
  • Size (H x W x D) - ∼(263mm x 123mm x 63mm), ∼(10.35in x 4.84in x 2.48in) without the TY1 or TY2 plug
  • Battery - 4 x AA/IEC LR6 alkaline or IEC HR6 NiMH

Temperature

  • Operating - -10°C to 40°C (14°F to 104°F)
  • Storage - -20°C to 50°C (-4°F to 122°F)

Relative Humidity

  • Operating - 10% to 85%, 0°C to 40°C (32°F to 104°F), non-condensing
  • Storage - up to 95%

Wireless radio, Bluetooth 5.0

  • Frequency range - 2412MHz to 2462MHz
  • Output power - <100mW
  • Altitude - 3000m
  • Safety - IEC 61010-1: Pollution Degree 2, IEC 61010-2-030, CAT II 300V, Protection Class II
  • Performance - IEC 61557-1, IEC 61557-6, IEC 61557-7, IEC 61557-10
  • Ingress protection - IEC 60529: IP40

Fluke 1664FC Specifications

AC voltage measurement

  • Range: 500V
  • Resolution: 0.1V
  • Accuracy 45Hz - 66Hz: 0.8% + 3 counts
  • Input impedance: 360kΩ
  • Overload protection: 660V rms

Continuity testing RLO

  • Range (autoranging): 20Ω / 200Ω / 2000Ω
  • Resolution: 0.01Ω / 0.1Ω / 1Ω
  • Open circuit voltage: >4V

Insulation resistance measurement

  • Test voltages:  50-100-250-500-1000V
  • Accuracy of tTest voltage (at rated test current): +10%, -0%
  • Test voltage: 50V; 100V; 250V; 500V; 1000V
  • Insulation resistance range: 20 to 50MΩ; 20 to 100MΩ; 20 to 200MΩ; 20 to 200 to 500MΩ; 20 to 200 to 1000MΩ
  • Resolution: 0.01MΩ / 0.1MΩ; 0.01MΩ / 0.1MΩ; 0.01MΩ / 0.1MΩ; 0.01MΩ / 0.1MΩ / 1MΩ; 0.01MΩ / 0.1MΩ / 1MΩ
  • Test current: 1mA @ 50kΩ; 1mA @ 100kΩ; 1mA @ 250kΩ; 1mA @ 500kΩ; 1mA @ 1MΩ

Loop and line impedance (ZI)

  • Range: 10Ω / 0.001Ω / High current mΩ mode
  • Resolution: 0.01Ω / 0.1Ω / 1Ω

Prospective earth fault current, PSC test

  • Range: 1000A / 10kA (50kA)
  • Resolution: 1A / 0.1kA
  • Computation: Prospective earth fault current (PEFC) or prospective short current (PSC) calculated by splitting actual mains voltage by measured loop (L-PE) resistance or line (L-N) resistance respectively

RCD testing, RCD types tested

  • RCD type: AC1; G2, S3
  • Model 1664: A, AC, B5, S

Notes: 1Responds to AC; 2General no delay; 3Time delay; 4Responds to pulsed signal; 5Responds to smooth DC signal.

Tripping speed test (ΔT)

  • Current settings1: 10-30-100-300-500-1000mA - VAR; 10-30-100mA
  • Multiplier: x0.5, x 1; x5
  • Measurement range: 310ms, 50ms (RCD Type G); 510ms, 160ms (RCD Type)

Notes: 1000mA with type AC only, 700mA maximum type A in VAR mode, VAR mode not available for type B

RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)

  • Current range: 30% to 110% of RCD rated current1
  • Step size: 10% of IΔN2
  • Dwell time: 300ms/step (Type G); 500ms/step (Type S)
  • Measurement accuracy: ±5%
  • Specified trip current ranges (EN 61008-1): 50% to 100% for Type AC; 35% to 140% for Type A (>10 mA); 35% to 200% for Type A (≤10 mA); 50% to 200% for Type B; ²5% for Type B

Notes: ¹30% to 150% for Type A IΔN > 10 mA; 30% to 210% for Type A IΔN = 10 mA; 20% to 210% for Type B

Earth Resistance Test (RE)

  • Range: 200Ω / 2000Ω
  • Resolution: 0.1Ω / 1Ω
  • Frequency: 128Hz
  • Output voltage: 25V

General

  • Size (L x W x H): 10 x 25 x 12.5cm
  • Weight (incl. batteries): 1.3kg
  • Batteries:  6 x AA
  • Sealing: IP-40
  • Safety: Meets requirements for EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
  • Overvoltage: Cat III to 500V; Cat IV to 300V
  • Performance: EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition

Fluke Connect

  • Fluke connect is compatible with operating systems iOS 8 and above or on Android 4.4.x or above
