- Fluke Ti401U Thermal Imager
- Charger
- Battery
- Carrying case
- HDMI cable
- USB cable
- Safety information
- Report

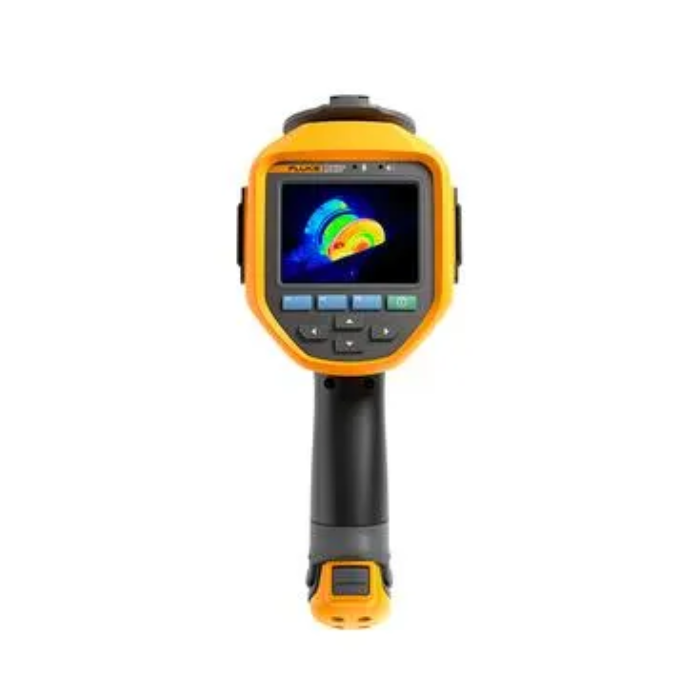

Fluke Ti401U Thermal Imaging Camera
SKU: FLUKETI401U
- High-resolution thermal imaging with 640 × 480 infrared resolution combined with 75 mK thermal sensitivity
- Advanced inspection capabilities including Picture-in-Picture (PIP), IR-Fusion®, and multiple measurement tools
- Enhances productivity with seamless connectivity and smart reporting tools
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Fluke Ti401U Thermal Imaging Camera
The Fluke Ti401U Thermal Imaging Camera is a mid-end model in Fluke's Classic Ultra Series, delivering a 640 × 480 infrared resolution that produces detailed thermal images. With a thermal sensitivity of 75 mK (0.075°C), it can detect small temperature differences that may indicate developing faults before they become serious problems. It includes both automatic and manual focus, a 25° × 19° field of view, and 1-10x digital zoom, offering flexibility when inspecting equipment at various distances.
The Ti401U has a temperature measurement range of between -20°C to 650°C and a temperature measurement accuracy of ±2°C or 2%, whichever is greater. It also includes intelligent range selection and compensation settings to improve measurement reliability. These settings account for:
- Emissivity
- Ambient temperature
- Reflected temperature
- Relative humidity
- Measurement distance
- IR windows
This allows users to take measurements across 16 spots, 8 lines and 12 areas, with high and low temperature alarms as well as temperature rise measurements, helping users identify potential issues more quickly.
The Ti401U also provides useful analysis directly on the camera. High and low temperature tracking automatically identifies temperature extremes, while maximum, minimum and average temperatures can be displayed on the thermal image. Captured images can be analysed using SmartView IR PC software, making it easier to review findings and document inspection results.
Combining thermal and visual information is straightforward with IR-Fusion and Picture-in-Picture (PIP). Users can adjust the blend between the infrared and visual images from 0% to 100%, helping pinpoint the exact component or area associated with a thermal anomaly. Additonal imaging features include:
- 13-megapixel digital camera
- Laser pointer
- LED torch
- Optional wide-angle lens
- Optional 2x telephoto lens
- Optional 4x telephoto lens
These features further extend the camera's versatility for different inspection environments.
For field inspections, the Ti401U features a 3.5-inch 640 × 480 LCD display, Bluetooth connectivity, USB and Mini HDMI interfaces, and a 64 GB Micro SD card expandable to 128 GB. Voice, text and label annotations, QR code scanning and time-lapse imaging help users record inspection information alongside captured images. The replaceable rechargeable battery provides around 2 to 3 hours of operating time, and a two-bay charger is included. The camera is designed to operate in ambient temperatures from-10°C to 50°C. A 2-year warranty and recommended two-year calibration interval provide additional support for long-term professional use.
Part number: 5580562
Specialists In Solar PV Test Equipment
Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
Key Features
- 640 × 480 infrared resolution
- 75 mK thermal sensitivity
- Auto and manual focus
- 25° × 19° field of view
- 1-10x digital zoom
- Temperature range: -20°C to 650°C
- Accuracy: ±2°C or 2%
- 16 spot, 8 line and 12 area measurements
- IR-Fusion® and Picture-in-Picture
- 13 MP digital camera
- Bluetooth, USB and Mini HDMI connectivity
- 64 GB Micro SD card (expandable to 128 GB)
- Voice, text and QR code annotations
- 2 to 3 hour battery life
- 2-year warranty
What's In The Box?
|
Basic parameters
Measurement analysis
Image display
IR Fusion
Shooting function
Data Connection
Ancillary Function
Power System
Physical parameters
Warranty and Maintenance
Optional Lenses
|
