- Fluke Ti480U Thermal Imager
- Charger
- Battery
- Hard carrying case
- HDMI cable
- USB cable
- Safety information
- Report

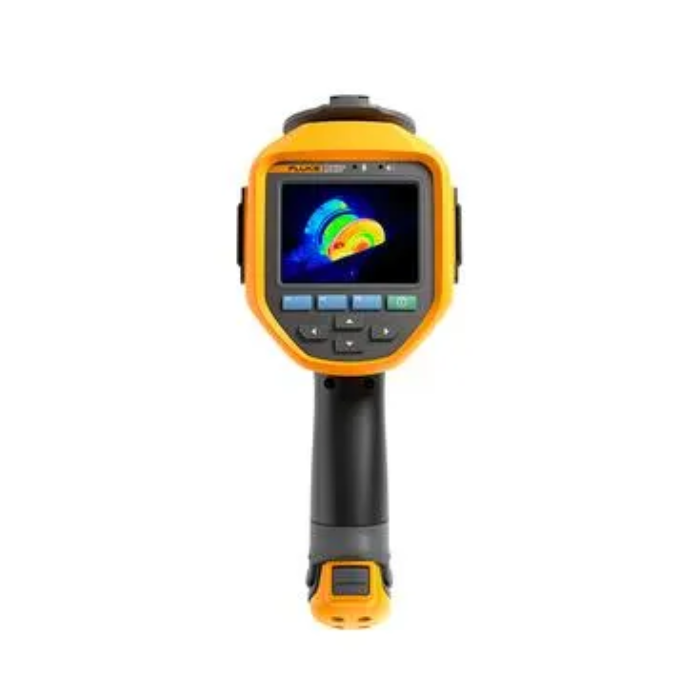

Fluke Ti480U Thermal Imaging Camera
SKU: FLUKETI480U
- Combines a 640 × 480 infrared resolution with SuperResolution up to 1280 × 960 for highly detailed thermal imaging
- Features a 50 mK thermal sensitivity for the detection of subtle temperature differences
- Supports voice, text and label annotations, QR code scanning, and time-lapse imaging
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Fluke Ti480U Thermal Imaging Camera
The Fluke Ti480U Thermal Imaging Camera is the flagship model of the Fluke’s Classic Ultra Series, featuring a 640 × 480 infrared resolution along with a Super Resolution of up to 1280 × 960. These features provide detailed thermal images that help identify potential faults, hotspots and temperature variations while a thermal sensitivity of 50 mK (0.05°C) allows the Ti480U to detect subtle temperature differences that may otherwise be difficult to identify.
With a wide -20°C to 1,200°C temperature range, the camera is able to inspect a broad range of applications such as:
- Electrical installations
- Industrial machinery
- HVAC systems
- Manufacturing processes
- High-temperature equipment
Temperature measurement is accurate to ±2°C or ±2%, whichever is greater, while intelligent range selection and adjustable emissivity, reflected temperature, humidity, measurement distance and IR window corrections help improve measurement reliability across different applications.
The Ti480U provides extensive set of analysis features directly on the camera with up to 16 measurement spots, 8 lines and 12 areas, alongside high and low temperature alarms and temperature rise measurements. High and low temperature tracking automatically identifies temperature extremes, while the camera can display maximum, minimum and average temperatures directly on the image. The camera also supports fully radiometric thermal video recording, allowing thermal data to be reviewed and analysed after an inspection. Images and videos can be processed using SmartView IR PC software to support reporting, trend analysis and documentation.
For easier fault identification, the Ti480U combines thermal and visual imaging with IR-Fusion and Picture-in-Picture (PIP). Users can adjust the blend between the infrared image and the 13-megapixel visual camera image from 0% to 100%, making it easier to pinpoint the exact component or area responsible for a thermal anomaly. The visual camera features:
- Automatic and manual focus
- 1-10x digital zoom
- Optional wide-angle lens
- Optional 2x telephoto lens
- Optional 4x telephoto lens
Designed for professional field use, the camera features a 3.5-inch 640 × 480 LCD touchscreen, Bluetooth connectivity, USB and Mini HDMI outputs, and a 64 GB Micro SD card that can be expanded to 128 GB. Document inspection findings and result organisation are made easier through voice, text and label annotations, QR code scanning, and time-lapse imaging. Its replaceable rechargeable battery provides approximately 2 to 3 hours of operation, and it is rated to IP52 with a 1 m drop resistance for added durability in demanding working environments.
Part number: 5580570
Specialists In Solar PV Test Equipment
Watch the video above to see how we can help you find the right solar pv test equipment & get in touch on 0113 248 9966 or sales@test-meter.co.uk.
As a leading Solar PV Test Equipment and Solutions provider in the UK, we have a wide range of expertise. Whether you're conducting simple commission tests, small-scale 1000V solar PV rooftop installations or 1500V commercial solar farms to more in-depth IV curve trace analysis, our team ensures your enquiry is looked after from start to finish, providing you with the perfect solution.
Find the best solution for your application and budget through:
- Onsite-demo/remote consultations on request
- 'Try Before You Buy' and hire options available
- After-sales care that provides ongoing calibration and servicing
- Finding the optimal software package, ensuring the correct reporting and data functionality for your needs
Can't find the right Solar PV Test Equipment or solution? We're on hand to help, please get in touch on 0113 248 9966 or sales@test-meter.co.uk
Key Features
- 640 × 480 infrared resolution
- Super Resolution up to 1280 × 960
- 50 mK (0.05°C) thermal sensitivity
- Temperature range: -20°C to 1,200°C
- Accuracy: ±2°C or ±2%
- 16 spot, 8 line and 12 area measurements
- Fully radiometric thermal video recording
- IR-Fusion® and Picture-in-Picture
- 13 MP digital camera
- Auto and manual focus
- 1-10x digital zoom
- Bluetooth, USB and Mini HDMI connectivity
- 64 GB Micro SD card (expandable to 128 GB)
- Voice, text and QR code annotations
- 2 to 3 hour battery life
- IP52 protection rating
- 1 m drop resistance
What's In The Box?
|
Basic parameters
Measurement analysis
Image display
IR Fusion
Shooting function
Data connection
Ancillary Function
Power System
Reliability and Certification
Physical parameters
Warranty and Maintenance
Optional Lenses
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Fluke’s Classic Ultra Series Datasheet | 153.9 KB | Download |
