- Hikmicro G40 Thermal Camera
- Type-C cable
- Power adaptor
- Hand Strap
- Charging base
- Battery x2
- MicroSD card
- CVBS Cable
- Tools package
- Charger
- Lens Cover
- Box
- Quick start guide
Hikmicro G40 High Resolution Thermal Imaging Camera
SKU: HIKMG40
- 480 x 380 (172,800 pixel) Resolution Thermal Camera
- Wide temperature measurement range of -20°C to 650°C with an accuracy of up to ± 2°C, ± 2%
- Long-distance laser light supplement for thermography targets (50m indoors and 10m outside)
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
£3,995.00
£4,794.00
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
Found this product cheaper & in stock somewhere else? Give us the details and we'll endeavour to match the price.
To price match, contact us online or call 0113 248 9966.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
We want our customers to be fully satisfied with the goods they purchase from us, offering returns for up to 60 days.
Find out more about our refunds policy here.
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Hikmicro G40 High Resolution Thermal Imaging Camera

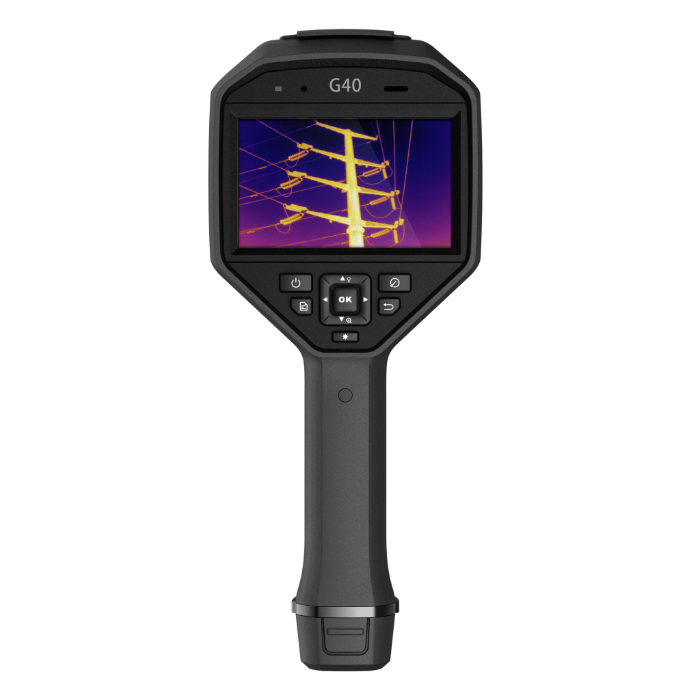

The Hikmicro G40 High Resolution Thermal Imaging Camera is a handheld thermal imager that provides many high-performance features, easily and accurately detect hot spots and hidden deficiencies which are invisible to the naked eye. A resolution of 480 x 380 (172,800 pixel) providing a distinct thermal vision of the target. The 50Hz frequency give a clear vision when panning across target objects and scenes and moving targets. The G40 is ideal for use in many industries such as mechanical inspections, power utilities and building inspections to identify unseen issues. The 800 x 480 resolution 4.3inch LCD touchscreen provides a clear image and measurement of a chosen target. With the digital zoom of 1x, 2x, 4x and 8x in the live view interface, operators can adjust the digital zoom allowing for viewing of the target or scene in larger size.
The G40 has a temperature range of -20°C to 650°C whilst maintaining an high degree of accuracy (Up to ± 2°C, ± 2%). The cameras automatically changes the temperature measurement range based on the field of view.
The camera has four Image modes available: Thermal, Fusion, PIP and optical Modes, to suit a users preferred mode. The Hikmicro G40 also supports four types of focus modes continuous autofocus, Autofocus, Laser assisted focus and manual focus, to produce clear images leading to more accurate temperature measurements.
Hikmcro Viewer App and Analyser Software.
The Hikmicro G40 has inbuilt Wi-Fi to connect the camera to the Hikmcro Viewer App and Analyser Software. The App allows for images and videos to be viewed and shared, quickly and easily, the smart device can also be used as a second screen when using the App allowing for dual screening and remote viewing when measuring from a distance is safer for the operator. The Hikmicro Analyser software, allows users to further analyse captured thermographic data of pictures and videos to generate comprehensive professional reports. The G40 has a removable 64GB MicroSD memory card with storage for approximately 60,000 images or 54 hours of MP4 videos. Operators of the G40 are able to add text notes (up to 200 characters) and up to 60 seconds of audio to thermal images.
The G40 comes equipped with an integrated laser distance meter, allowing users to clearly view the centre point of the target on screen, helping increase the accuracy of the measurement. The laser can be used up to 50m indoors and up to 10m outside. Thanks to the 1-Tap level and span capabilities, the G40 allows users to focus on one area of a captured image and narrow the span with 1-Tap of the LCD screen.
The Camera is IP54 rated, offering protection from water and dust ingress. Further protection is provided by the drop test from 2m and hard carry case. Each of the two batteries provided, offer up to 4 hours operating time allowing for a full days use in the field. The Hikmicro G40 also features an LED light, allowing for testing to be conducted even under dark environments. The built in speaker of the G40 gives the operator an audible alarm should high temperatures be detected.
Hikmicro G Series Comparison table
| Hikmicro G40 | Hikmicro G60 | |
|---|---|---|
| IR Resolution | 480 x 360 (172,800pixels) | 640 x 480 (307,200pixels) |
| Temperature Range -20°C to 650°C (-4°F to 1202°F): | ✔ | ✔ |
| NETD: | <35 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency 50 Hz: | ✔ | ✔ |
| Detector Pitch: | 17μm | 17μm |
| Spectral Range 7.5 to 14μm | ✔ | ✔ |
| Field of View (FOV): | 18.7° × 14° | 25° × 19° |
| Spatial Resolution (IFOV): | 0.68 mrad | 0.68 mrad |
| SuperIR: | 960 x 720 (691,200 pixels) | 1280 x 960 (1,228,800 pixels) |
| Visual Camera: 3264 x 2448 (8 MP) | ✔ | ✔ |
| Digital Zoom | 1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X |
| Image Modes: | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending |
| Colour Palette: | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain |
| Colour Alarm: | Above/Below/Interval/Insulation | Above/Below/Interval/Insulation |
| Storage Media | Removable 64 GB Micro SD Card | Removable 64 GB Micro SD Card |
| Image Storage Capacity | Approx 60,000 images | Approx 60,000 images |
| Video Storage Capacity | Approx 54 hours | Approx 54 hours |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Battery life: | Approx 4 hours | Approx 4 hours |
| Weight: | Approx. 1000 g (2.2 lb) | Approx. 1000 g (2.2 lb) |
Key Features
- High sensitivity thermal module with 480 × 360 (172,800 pixel) resolution
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Supports seven colour palettes
- High quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Temperature measurement range: -20°C to 650°C
- Temperature measurement accuracy: Up to ± 2°C, ± 2%
- 800 × 480 resolution 4.3'' LCD touch display
- Long-distance class II laser light supplement for thermography targets
- LED light supplement makes the device a torch in required scenarios
- Supports 1×, 2×, 4× and 8× digital zoom
- Hand and neck strap for user comfort
- Four measurement tools: Centre Spot, Hot Spot, Cold Spot, and User Preset Point/Line/Area
- Four hour battery life per battery (2 batteries included)
- 64GB MicroSD memory card
- Storage of approximately 60,000 images or 54 hours of MP4 video
- Add voice notes up to 60 seconds or 200 characters of text to images or videos
What's In The Box?
|
Infrared Image
Image Display
Measurement and Analysis
Data, Storage and Communication
General
|
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Hikmicro G40 Datasheet | 1 MB | Download |
