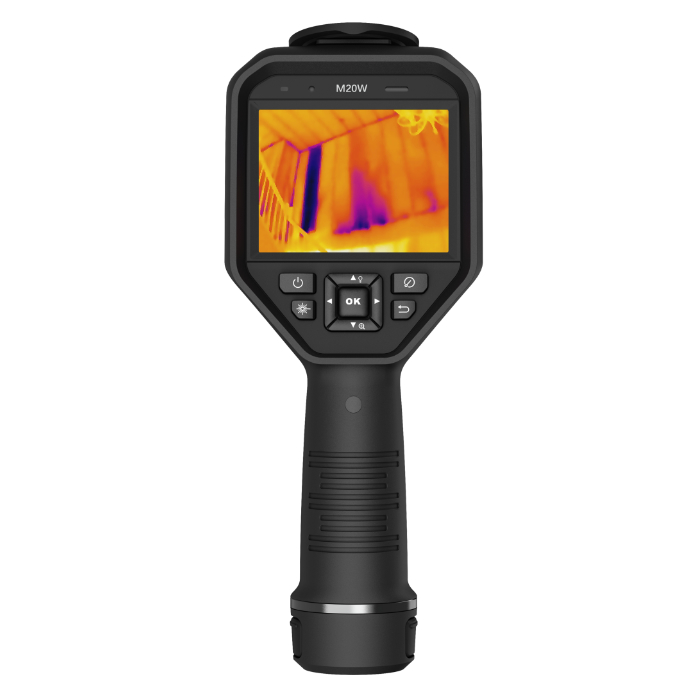

Hikmicro M20W Thermal Imaging Camera (Auto Focus)

Hikmicro M20W Thermal Imaging Camera (Auto Focus)

The Hikmicro M20W Thermal Imaging Camera (Auto Focus) features a 50º x 37.2º FOV and a fixed focus lens providing a wide field of view to allow for inspections of large object by capturing more scene in one image. The M20W boasts an 8MP resolution visual camera and a 256 x 192 (49,152) thermal resolution, images can be enhanced thanks to Hikmicros SuperIR technology to enhance the cameras resolution to 512 x 384 (196,608 pixels). With a 3.5 inch touchscreen display, the M20W provides users with a crisp clear display, with images modes including thermal, visual, Picture in Picture of the optical and thermal view and fusion on both channels and IR sensitivity <40mK and a 25Hz frame rate.

The M20W allows for temperature measurements can be conducted with a range of -20ºC to 550ºC (with an accuracy of max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F). Accuarcy is further enhanced thanks to the incorporated long distance laser light that shows the centre point on objects and the LED light to provide the camera with a torch in low light environments. Users are able to view the centre spot, hot and cold spots on images with user definable 10 spots, 1 line, 5 rectangle and 5 circle level and span mode. Users are also able to choose 8 colour palettes (White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red) and a 1.0x to 8.0x continuous digital zoom.

Hikmicro Viewer App

The Hikmicro M20W is compatible with Hikmicros Viewer App, which via Wi-Fi, allows for the transfer of images and videos from the camera to a mobile device. Using the app, operators can analyse, share images and generate reports in real time even on-site.

Hikmicro Analyser

Hikmicro Analyser is a free licensed PC software that has been designed to help users to manage and analyse their thermal images and videos and quickly generate professional reports.

The M20W features a removable 16GB that provides storage for approximately 60,000 images or approximately 15 hours of MP4 video files. Analysis can be enhanced thanks to 60 second voice notes or 200 character text notes that can be added to images or videos.

The M20W comes provided with 2 interchangeable Li-ion batteries and a dual bay charger to provide users with up to 12 hours of operation allowing for longer inspections to be conducted without having to re charge the batteries. The M20W is IP54 rated offering protection against water and dust and is drop tested to 2m (6.6ft)

Key Features

• High sensitivity thermal module with 256 x 192 resolution
• 50º x 37.2ºª Fix focus lens
• Supports multiple palettes
• 8MP resolution visual camera
• 50º x 37.2ºª Fix focus lens
• 640 x 480 resolution 3.5 inch touchscreen
• <40mK IR sensitivity
• 25Hz frame rate
• 1-Tap level and span
• Centre spot, Hot and cold spots on images
• Measure temperature from -20ºC to 550ºC
• High degree of accuracy (Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
• Long distance laser showing the centre point of a target object
• LED light to provide light in dark working environments
• 1.0x to 8.0x continuous digital zoom
• Co pitiable with the Hikmicro Viewer App and Hikmicro Analyser for remote access and report generation
• 12 hour battery life thanks to the included two rechargeable batteries
• Removable 16GB memory card for approximately 60,000 images 04 15 hours of MP4 video
• Add voice and text note annotations to images and videos
• IP54 protection level and drop tested to 2m
