Hikmicro SP60 High Performance Thermal Imaging Camera

Hikmicro
SKU: HIKMSP60
  • High performance handheld thermal camera with a thermal resolution 640 x 480 (307,200 pixels)
  • 90° rotating screen and the 180° rotating lens design
  • 1024 × 768 OLED electronic viewfinder and auto-brightness 5-inch colour LCD display
More Info
Typically ships in 1-3 working days

Hikmicro SP60 High Performance Thermal Imaging Camera

The Hikmicro SP60 High Performance Thermal Imaging Camera suitable for industrial, predictive, oil and gas and utility maintenance inspections. The SP60 boasts a temperature measurement range of -20°C to 650°C (-4°F to 1202°F) with an accuracy of ± 2°C/3.6°F, ± 2%. Equipped with a 180º rotating lens as well as a 90º rotating screen, this allows the operator to easily view around, above or below any target object. The thermal sensivity of the SP60 is <35mK providing clear thermal images and videos.

Hikmicro SP60 Lens Comparison Table

  Hikmicro L8 Hikmicro L12 Hikmicro L25 Hikmicro L50
Focal Length 77.4mm 51.4mm 25mm 12.6
F-Number: F1.2 F1.1 F1.0 F1.0
Field View 8° × 6° 12° × 9° 50° × 37.3° 24.8° × 18.7°
Spatial Resolution (IFOV): 0.22 mrad 0.33 mrad 0.68 mrad 1.35 mrad
Minimum Focus Distance: 2m (6.56ft) 1m (3.3ft) 0.2m (0.65ft) 0.2m (0.65 t)

The SP60 is designed to be used outdoors, which thanks to the 10924 x 768 OLED electronic viewfinder and auto-brightness 5inch colour LCD touchscreen, outdoor use and inspections can be conducted even under bright, challenging lights and tough environments. The SP60 supports four focus modes (manual focus, continuous autofocus, autofocus and laser-assisted focus and a one second fast focusing speed to potentially save time by producing sharper images which can produce more accurate temperature measurements. Image details can be enhanced using the continuous digital zoom of 1.0x to 12.0x. The SP60 supports 3-level/span modes (manual, automatic and 1-Tap) to improve the image contrast and highlight potential problems quickly. Multiple images modes (Thermal, Fusion, PIP and Optical modes) can also be selected to suit the operators preferred view.

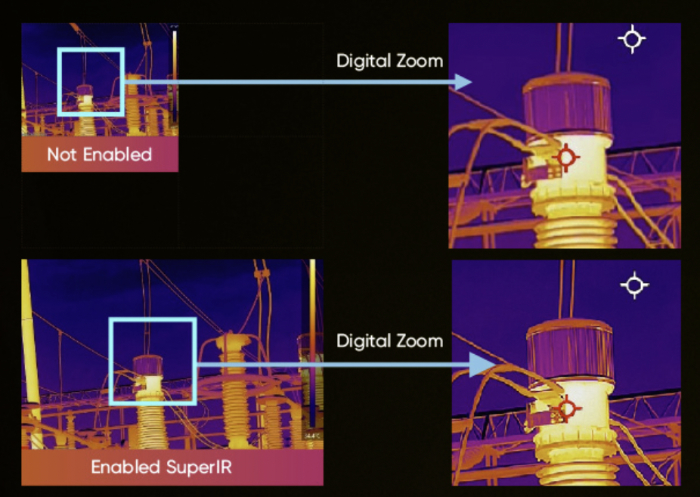

SuperIR

The SP60's 640 x 480 (307,200 pixels) thermal resolution can be increased 4x using Hikmicro's SuperIR technology, allowing for ultra sharp thermal images to be captured. Using SuperIR, image quality is improved by four times  to 1280 x 960 (1,228,800 pixels) allowing a more detailed analysis on smaller or distance targets.

The Hikmicro SP60 has an image frequency of 25Hz, allowing for a smooth image even when panning across scenes or viewing a moving target.

Up to 60,000 Images and MP4 and radiometric videos (up to 64 hours) can be stored on the 64GB SD memory card. Up to 200 characters and 60 seconds of audio annotations can be added to the images and videos enabling further analysis or reminders for future reference. Each image and video automatically has the GPS and compass directions for geolocation and orientation added.

The SP60 has an integrated laser distance meter providing distance measurements from 10m outdoors and up to 50m indoors. Area measurements in M2 or ft2 can also be conducted allowing for parameters to be set and generating a report.

Hikmicro Viewer App

The Hikmicro Viewer App is a downloadable application allowing users to wirelessly transfer stream videos and images from the camera to a smart device. Images and videos can be analysed and shared via generated reports to colleagues or customers. The App can be used to take photos and change parameters using their device. Using the App enables an operators smart device to be used for mirror streaming enabling remote screening.

Hikmicro Analsyer Software

The Hikmicro Analyser Software is a free licensed PC software helping users to manage and analyse images and videos and quickly generate professional reports. Radiometric video analysis can be recorded to the incorporated SD card for further analysis on a PC. Using the software radiometric images and videos can be viewed, edited and analysed. The software allows for advanced analysis and processing of thermal data and batch processing of images and measurements. Reports can be generated with pre defined or customised reports.

Hikmicro Inspector

The free licensed PC software Hikmicro Inspector provides operators to simplify the inspection process complete it efficiently. Inspection routes can be pre planned and download them directly to the SP60 camera. The software will guide the operator between locations whilst collecting images or videos at each station. When an inspection has been completed, image data and annotations can be imported into the Hikmicro Analyser Software for professional analysis and report generating.

The SP60 includes two interchangeable Li-ion batteries and a dual bay charger which provide up to eight hours of continuous use, enabling the operator to have a functional camera for a full day in the field. The included neck and wrist strap offer protection and added comfort when using the camera. The camera is IP54 protected offering protection from water and dust ingress. Drop tested to 1m the SP60 is a rugged and reliable thermal image camera which can be used in challenging environments.

Key Features

  • Thermal resolution: 640 × 480 (307,200 pixels), NETD: < 30 mK (@ 25°C, F# = 1.0)
  • Temperature measurement range : -20°C to 650°C (-4°F to 1202°F)
  • Temperature Accuracy: Max. (± 2°C/3.6°F, ± 2%)
  • The 90° rotating screen and the 180° rotating lens design
  • Multiple lens options offing different FOV
  • 1024 × 768 OLED electronic viewfinder and auto-brightness 5-inch colour LCD display
  • 1.0× to 12.0× continuous digital zoom
  • Manual, automatic, and 1-Tap Level and Span
  • Manual focus, continuous autofocus, autofocus, and laser-assisted focus
  • GPS & compass annotation functions
  • 25 Hz image frequency
  • 8 MP Optical camera
  • Up to 4 hours continuous running per battery (2 supplied)
  • Use Hikmicro Viewer App, Analyser Software and Inspector for storage, analysis and generating reports
  • Laser Distance Meter: Indoor distance: 50m (164ft); Outdoor distance: 10m (33ft)
  • SuperIR offering 4 times the resolution: 1280 x 960 (1,228,800)
  • Removable 64GB SD card for storage up to 60,000 images or 64 hours of video
  • Image and video annotations: Voice note: 60 Seconds. Text note: max 200 characters
  • Video File Format: MP4 video and radiometric video
  • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
  • Image modes: Thermal/Visual/Fusion/PIP/Blending
  • Manual, automatic, and 1-tap level and span

What's In The Box?

  • Hikmicro SP60 High Performance Thermal Imaging Camera
  • Choice of Lens/Lenses
  • Power Adaptor
  • Charging Base
  • 2x Battery
  • USB Cable
  • HDMI Cable
  • Hand and Neck Straps
  • Adapter Plugs (AU, EU, UK, US)
  • Dust proof Cover
  • Carrying Case
  • Quick Start Guide
Specification

Infrared Image

  • IR Resolution: 640 x 480 (307,200 pixels)
  • NETD: <30mK (@ 25°C, F#=1.0)
  • Image Frequency: 25Hz
  • Detector Pitch: 17μm
  • Spectral Range: 7.5 to 14μm
  • Focal length: L8: 77.4mm; L12: 51.4mm; L25: 25mm; L50: 12.6mm
  • F-number: L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0
  • Field of View (FOV): L8: 8° × 6°; L12: 12° × 9°; L25: 50° × 37.3°; L25: 24.8° × 18.7°
  • Spatial Resolution (IFOV): L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.68 mrad; L50: 1.35 mrad
  • Focal mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
  • Focus speed: Approx 1 seconds
  • Min. Focus Distance: L8: 2m (6.56ft); L12: 1m (3.3ft); L25: 0.2m (0.65ft); L50: 0.2m (0.65ft)
  • SuperIR: 1280 x 960 (1,228,800)

Image Display

  • Visual camera: 3264 x 2448 (8MP)
  • Display: 1280 × 720 Resolution, 5” LCD Touch Screen
  • View finder: 1024 × 768 pixels OLED
  • Screen brightness: 640 x 480 Resolution, 5inch LCD Touch Screen
  • Screen brightness: Manual/Auto
  • Digital zoom: 1.x to 12.x continuous
  • Image modes: Thermal/Visual/Fusion/PIP/Blending
  • Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
  • Focus mode Palette: Above/Below/Interval
  • Colour alarm: Above/Below/Interval/Insulation

Measurement and Analysis

  • Object Temperature Range: -20°C to 650°C(-4°F to 1202°F)
  • Accuracy: Max. (± 2°C/3.6°F, ± 2%)
  • Measurement Tools: Centre Spot, Hot Spot, Cold Spot users definable: 10 Spots, 1 line and 10 rectangles
  • Level and Span Mode: Auto/Manual/1-Tap Touch screen
  • Inspection route: Yes

Data, Storage and Communication

  • Storage Media: Removable 64GB SD card
  • Image Storage capacity: Approx 60,000 images
  • Annotation: Voice note: 60 Seconds. Text note: max 200 characters
  • Video Storage capacity: Approx 64 hours
  • Video File Format: MP4 video and radiometric video

General

  • Wi-Fi: 802.11 b/g/n (2.4GHz and 5 GHz)
  • Bluetooth: Bluetooth 4.2
  • USB Interface: USB Type-C
  • HDMI Interface: HDMI-D
  • LED Light: Yes
  • Laser: Yes, Class II, Wavelength 635nm, Power:<1mW
  • Laser Distance Meter: Indoor distance: 50m (164ft); Outdoor distance: 10m (33ft)
  • GPS & Compass: Yes
  • Battery Type: Interchangeable and Rechargeable Li-ion battery
  • Battery Operating Time: Approx 4 hours
  • Battery Charging Time: Approx 2.5 hours fully charged
  • Power Saving Mode: Yes
  • Programmable Buttons: 2
  • Protection level: IP54 IEC 60529
  • DropTest Height: 1m (3.28ft) IEC 60068-2-31
  • Safety: IEC 61010-1
  • EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3
  • Vibration: 2 g, IEC 60068-2-6
  • Shock: 25g, IEC 60068-2-27
  • Working Temperature range: -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Relative Humidity: <95% non-condensing
  • Weight: Approx 1481g (3.27lb)
  • Dimension: 204.7 × 153.6 × 87.8mm (8.06 × 6.05 × 3.45in)
  • Tripod mounting: UNC ¼”-20
Label Type Size Download
pdf Hikmicro SP60 Datasheet pdf 1 MB Download
