Kane DT720 2 Channel Differential Thermometer

SKU: KANEDT720
  • Dual thermocouple inputs for measuring liquid, ambient and surface temperatures
  • Includes a ATT29 K-Type Thermocouple for measuring temperature from -200° to 1370°C (-328° to 2498°F)
  • Back lit display and 9,999 memory positions for temperature tests
More Info
Typically ships in 5-7 working days

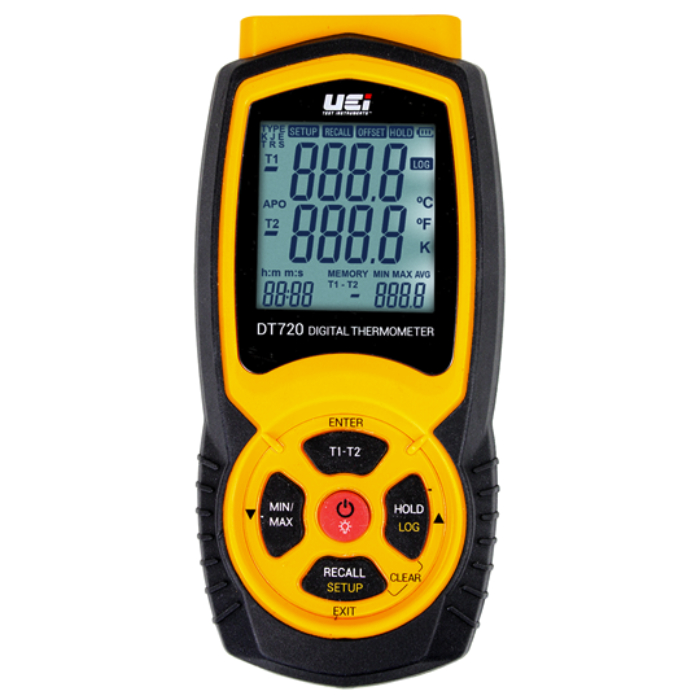

 Kane DT720 2 Channel Differential Thermometer

The Kane DT720 2 Channel Differential Thermometer features dual thermocouple inputs allowing for two measurements of liquid, ambient and surface temperatures to be taken simultaneously. Using the included ATT29 K-Type Thermocouple, users can measure temperature ranging from -200° to 1370°C (-328° to 2498°F)

The DT720 calculates the differential temperature in either Fahrenheit or Celsius and has a 9,999 memory positions for temperature tests. Maximum/Minimum, Average temperatures and "Hold" readings can also be displayed.

Battery powered and with a backlit display, the DT720 can be used even in poorly lit working conditions. Compatible with J,K, T, E, R and S thermocouples, the DT720 also features a built in magnetic mount for hands free operation. With a protective over-moulding design and a zippered pouch, the DT720 is protected in the field and in storage.

Key Features

  • Dual thermocouple inputs allowing for two measurements of liquid, ambient and surface temperatures
  • Calculates the differential temperature in either Fahrenheit or Celsius
  • 9,999 memory positions for temperature tests
  • Back lit LCD screen
  • Includes a type K Thermocouple measuring temperature from -200° to 1370°C (-328° to 2498°F)
  • Accurate to ±[1.0% + 0.5°C (1.0°F)
  • Compatible with J, K, T, E, R and S thermocouples
  • Maximum/Minimum and Average temperatures can be displayed
  • "Hold" readings can also be displayed
  • Battery powered
  • One year limited warranty

What's In The Box?

  • DT720 2 Channel Differential Thermometer
  • K-Type thermocouples x 2
  • Batteries AA x3
  • Zippered Pouch
Specification

Environmental

  • Operating Temperature: 32º to 122ºF (0ºC to 50ºC)
  • Storage temperature: -4 to 140ºF -20 to 60ºC)
  • Non condensing <50°F (10°C)
    85% RH: 50° to 86°F (10° to 30°C)
    70% RH: 86° to 104°F (30° to 40°C)
    45% RH: 104° to 122°F (40° to 50°C)

General

  • Dimensions: 6.34 x 2.95 x 1.38in (161 x 75 x 35mm)
  • Weight: Approx 0.63lb (285g)
  • Battery: 3 x AA batteries
  • Certification: CE, FCC, ISED, UKCA, RoHS, REACH, WEEE
  • Safety: EN66010-1; 2010/A1 2019
  • CAT I:
    OVERVOLTAGE (Installation) CATEGORY I
    Pollution Degree 2 per IEC 1010-1

ATT29 K-Type Thermocouple (included accessory)

  • Type: K-Type, Chromel Alumel
  • Temperature range: -200° to 1370°C (-328° to 2498°F)
  • Accuracy: ±[1.0% + 0.5°C (1.0°F)]
Label Type Size Download
pdf Kane DT720 2 Channel Differential Thermometer Datasheet pdf 1 MB Download
