Kewtech EZYPAT Landlords PAT Testing Kit

Kewtech
SKU: KEWTEZYPATLKIT
  • Configured for landlords & letting agents responsible for rental property safety
  • Covers common household appliances
  • Includes a 13A Plug Lockout and Padlock
More Info
Typically ships in 3-5 working days

Kewtech EZYPAT Landlords PAT Testing Kit

The Kewtech EZYPAT Landlords PAT Testing Kit combines the easy-to-use Kewtech EZYPAT tester with a carefully selected range of accessories, providing a practical and cost-effective solution for landlords, letting agents, and property managers to manage electrical safety responsibilities across their property portfolio. It includes everything needed to test, record, and identify electrical appliances while maintaining clear compliance records.

Rental properties often contain a variety of portable appliances, extension leads, and IT equipment that require regular inspection as part of an effective electrical safety programme. The Kewtech EZYPAT simplifies this process through dedicated automatic test sequences for Class I appliances, Class II appliances, and extension leads. Clear PASS/FAIL indications, supported by red and green visual alerts, allow users to make immediate decisions without having to interpret complex readings.

The tester performs all the essential checks required for routine PAT testing, including earth bond continuity testing, insulation resistance testing, substitute leakage current measurement, and extension lead polarity testing. It also offers dual insulation test voltages of 250V and 500V, providing greater flexibility when testing modern appliances and surge-protected equipment commonly found in rental accommodation. A test lead compensation function further improves accuracy by eliminating resistance introduced by the test leads themselves.

The included PAT Register Book and PAT Certificate Pad make it easy to document inspections, record results, and provide evidence of testing where required, while large quantities of pass, wrap-around, and fail labels help ensure every tested appliance is clearly identified. The supplied Test Meter PRO socket tester enables quick verification of socket wiring before appliances are tested, while the IEC cloverleaf adaptor allows a wider range of equipment to be included in the testing programme, particularly laptop power supplies and other commonly used household electronics.

A PL13 230V 13A plug lockout and padlock is also included, allowing faulty or failed appliances to be isolated from use immediately until repairs or replacement can be arranged. This provides an additional layer of safety when managing occupied properties. Everything is stored in a durable Test-Meter kit bag, making it easy to transport between properties and keep testing equipment organised.

Part number: EZYPAT

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Earth bond continuity testing with 200mA test current
  • Quick and 5-second continuity testing
  • Insulation resistance testing at 250V and 500V
  • Substitute leakage current measurement
  • Test lead resistance compensation
  • Automatic test sequences for Class I, Class II and extension leads
  • Clear backlit LCD display
  • Instant PASS/FAIL indication with red and green visual alerts
  • Compact battery-powered operation
  • Supplied with documentation, adaptors, labels and carry bag

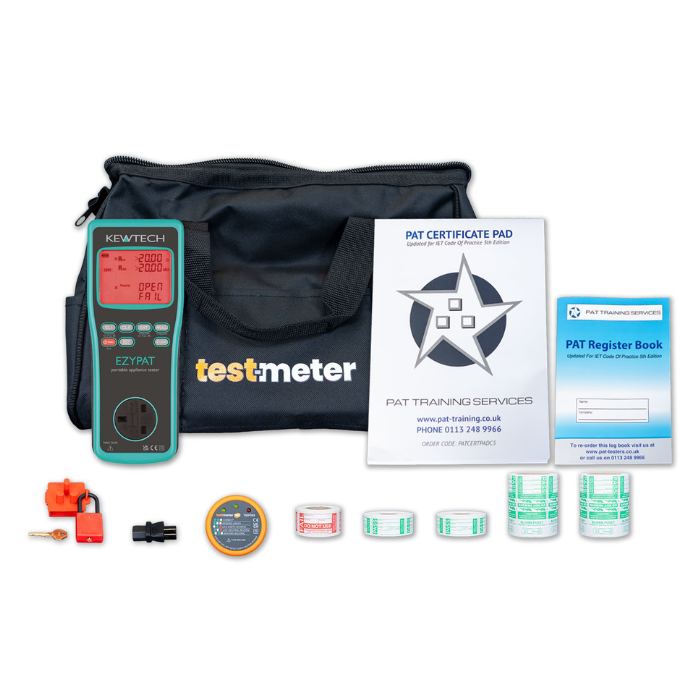

What's In The Box?

  • Kewtech EZYPAT PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Cloverleaf Adaptor
  • 2 x 500 Pass labels
  • 2x 250 Pass Wrap labels
  • 200 Fail labels
  • PL13 230V 13A Plug Lockout & Padlock
Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V / 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ / 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Applicable Standards

  • Safety: IEC/EN61010-1 CAT II 300V-instrument; IEC/EN61010-2-030; IEC/EN61010-031 CAT III 600V
  • EMC: EN61326-1, 2-2
  • Possible number of measurements where battery voltage is within the effective range (measuring every 30 sec): Approx. 1400 times (CLI Rpe: 0 Ω, Rins: 1.1 MΩ)
