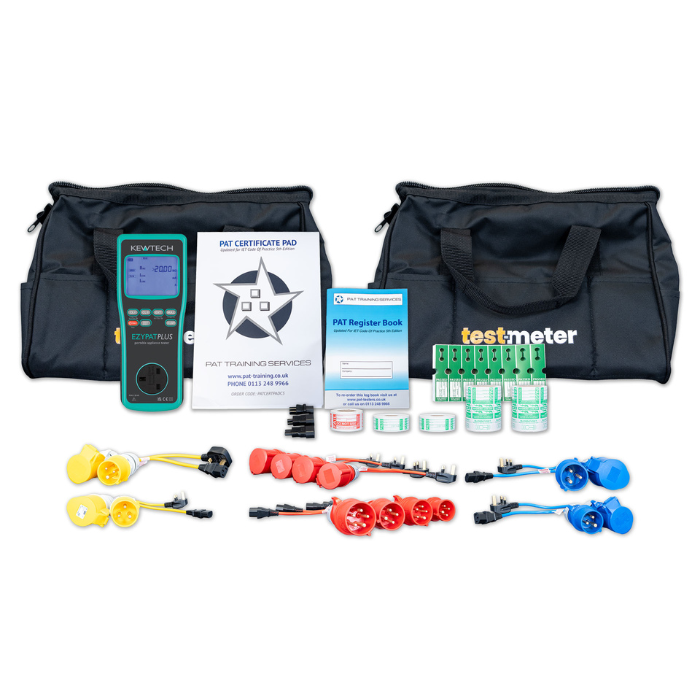

Kewtech EZYPAT Plus Industrial PAT Testing Kit

Kewtech EZYPAT Plus Industrial PAT Testing Kit

The Kewtech EZYPAT Plus Industrial PAT Testing Kit is designed to handle a wide variety of equipment and connector types, combining the advanced capabilities of the Kewtech EZYPAT Plus with an extensive range of industrial adaptors to make a comprehensive solution for electrical professionals needing to maintain electrical safety across diverse asset inventories.

At the heart of the kit is the Kewtech EZYPAT Plus PAT Tester – a versatile battery-powered instrument that performs all essential PAT testing functions while offering a unique advantage over other battery-operated testers: load and run testing at both 230V and 110V. This feature allows appliances and power tools to be assessed under normal operating conditions, helping users identify faults that may not be detected through static testing alone. Because the tester does not require a mains supply, it is particularly well suited to inspections in plant rooms, workshops, warehouses, and construction sites where portability is essential.

The EZYPAT Plus supports a complete range of PAT testing requirements, including earth continuity, insulation resistance, substitute leakage and extension lead polarity testing. A 200mA continuity test current makes it suitable for testing sensitive electronic equipment, while selectable 250V and 500V insulation test voltages provide flexibility when testing both standard and surge-protected appliances. Automatic Class I, Class II, and extension lead test routines simplify operation, with clear PASS and FAIL indications displayed on a large backlit LCD screen. A built-in null function improves accuracy by compensating for test lead resistance, and battery operation supports up to 1,500 tests from a single set of batteries.

What defines this industrial kit is its extensive selection of specialist adaptors, designed to significantly expand testing capability beyond standard PAT applications. In addition to the IEC Adaptor Kit, it includes 16A and 32A appliance and extension lead adaptors for both 110V and 230V systems, allowing users to test equipment commonly found in industrial facilities and construction environments. The inclusion of 16A and 32A four-pin and five-pin appliance adaptors further expands compatibility with industrial machinery, site equipment and specialist electrical assets. Together, these accessories reduce the need for separate purchases and allow engineers to test a broader range of equipment using a single, integrated kit.

The supplied PAT Register Book and PAT Certificate Pad provide a straightforward method of recording inspections and maintaining compliance documentation. A generous supply of pass and fail labels allows equipment to be clearly identified following testing, while durable Tuff Tag Cable Wrap Labels provide a long-lasting solution for marking leads and cables exposed to demanding industrial environments. Two Test-Meter Kit Bags are included, with separate storage for the PAT tester and accessories.

For users who require digital record management, the EZYPAT Plus is manually compatible with the KEWPAT App, enabling the storage of test information and generation of reports.

Part number: EZYPATPLUS

Key Features

• Earth bond continuity test
• Insulation resistance test (250V & 500V)
• Battery powered
• 110V & 230V load and run testing
• Backlit LCD display with red/green indication
• Automatic test sequences
• Class I, Class II, extension leads
