Kewtech EZYPAT Plus Small Business PAT Testing Kit

Kewtech
SKU: KEWTEZYPATPLUSSBKIT
  • Performs 110V and 230V load and run tests
  • Makes compliant PAT testing easy with minimal training required
  • Complete kit with essential accessories to support small business testing, record keeping and compliance
More Info
Typically ships in 3-5 working days

Kewtech EZYPAT Plus Small Business PAT Testing Kit

The Kewtech EZYPAT Plus Small Business PAT Testing Kit is designed for users who need a practical and portable solution to carry out professional appliance testing in offices, retail premises, workshops and other small business environments. The kit combines the versatile EZYPAT Plus PAT Tester with the essential accessories, documentation and labelling required to manage compliance efficiently.

Unlike many PAT testers, the EZYPAT Plus is lightweight and fully battery powered using standard AA batteries. It is also capable of both 110V and 230V load and run testing when connected to a suitable power supply, allowing users to accurately test standard office equipment, kitchen appliances, handheld power tools and more. This makes it particularly useful for businesses that operate a mix of electrical equipment and need to meet ongoing workplace safety responsibilities.

The EZYPAT Plus simplifies the process of identifying damaged or faulty appliances before they become a safety risk, with automatic test sequences for Class I appliances, Class II appliances and extension leads. Earth continuity (200mA), insulation resistance, polarity and both substitute and run leakage testing can all be carried out quickly. Clear PASS/FAIL indications and a colour‑coded backlit display make results easy to interpret in any working environment. The ability to use both 250V and 500V insulation testing also ensures that sensitive or surge‑protected equipment can be tested safely

Accessories included in the small business kit have been carefully selected to support day‑to‑day PAT testing activities. For example, the IEC adaptor kit expands testing capability for a wider range of appliance types, while the socket tester provides a quick way to verify socket wiring before testing begins. The kit also comes with a PAT Register Book and PAT Certificate Pad to support accurate record keeping and compliance documentation, whilst the included pass, wrap and fail labels allow equipment to be clearly identified and tracked throughout its inspection cycle.

Everything is supplied in a durable Test‑Meter kit bag, keeping equipment organised and easy to transport between sites. The EZYPAT Plus itself is capable of performing approximately 1,400–1,500 tests from a single set of batteries, helping to minimise downtime during large testing schedules. It also offers compatibility with the KEWPAT App, enabling users to manually record, store and report test results digitally for improved traceability and audit readiness.

Part number: EZYPATPLUS

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Earth bond continuity test
  • Insulation resistance test (250V & 500V)
  • Battery powered
  • 110V & 230V load and run testing
  • Backlit LCD display with red/green indication
  • Automatic test sequences
  • Class I, Class II, extension leads

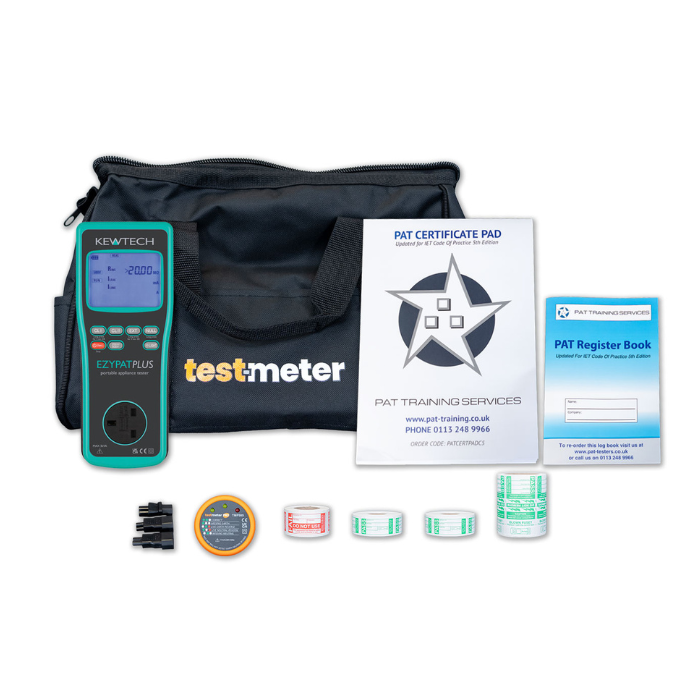

What's In The Box?

  • Kewtech EZYPAT Plus PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Mains Voltage

  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V; 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A / > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • rating: 3 kVA max., 15 sec. cont. / -
