Kewtech EZYPAT Small Business PAT Testing Kit

Kewtech
SKU: KEWTEZYPATSBKIT
  • Helps small businesses manage electrical safety checks
  • Ideal for low-volume workplace testing
  • Supplied with a PAT Register Book, Certificate Pad and a large quantity of labels
More Info
Typically ships in 3-5 working days

Kewtech EZYPAT Small Business PAT Testing Kit

The Kewtech EZYPAT Small Business PAT Testing Kit is ideal for businesses such as offices, retail premises, workshops, hospitality venues, and other small organisations that manage their own electrical safety checks while maintaining accurate records and professional testing standards. It combines the Kewtech EZYPAT tester with essential accessories needed to test, record, and label appliances efficiently.

Included is the compact, battery-powered Kewtech EZYPAT PAT Tester, designed for low-volume testing programmes. It enables users to test Class I appliances, Class II appliances, and extension leads using dedicated automatic test sequences, helping to simplify routine inspections and reduce the chance of user error. Clear PASS/FAIL indications, supported by red and green visual alerts, allow results to be interpreted quickly, even by users with limited PAT testing experience.

The tester performs the key checks required for workplace electrical safety, including earth bond continuity testing, insulation resistance testing, substitute leakage current measurement, and polarity testing for extension leads. A choice of 250V or 500V insulation test voltages provides additional flexibility, allowing surge-protected equipment and extension leads to be tested safely without unnecessary risk of damage. Test lead resistance compensation further improves accuracy by accounting for resistance within the test leads before testing begins.

The accessories included in this small business kit feature a PAT Register Book and PAT Certificate Pad, making it easy to maintain testing records and demonstrate compliance with workplace electrical safety procedures. Over 500 pass, wrap-around, and fail labels are also included to ensure appliances can be clearly identified following inspection.

Additional accessories such as the IEC adaptor kit and Test Meter PRO socket tester extend the range of equipment that can be tested, while also providing a quick method of checking socket wiring before testing begins. Everything is supplied in a durable Test Meter kit bag, making storage, transport, and on-site testing straightforward.

Part number: EZYPAT

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • Earth bond continuity testing with 200mA test current
  • Quick and 5-second continuity testing
  • Insulation resistance testing at 250V and 500V
  • Substitute leakage current measurement
  • Test lead resistance compensation
  • Automatic test sequences for Class I, Class II and extension leads
  • Clear backlit LCD display
  • Instant PASS/FAIL indication with red and green visual alerts
  • Compact battery-powered operation
  • Supplied with documentation, adaptors, labels and carry bag

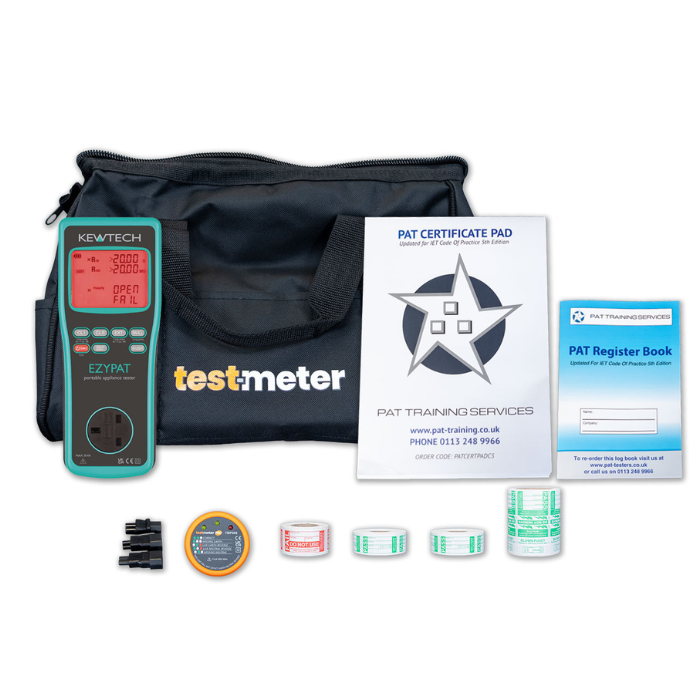

What's In The Box?

  • Kewtech EZYPAT PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification
  • Kewtech EZYPAT PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels



Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V / 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ / 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Applicable Standards

  • Safety: IEC/EN61010-1 CAT II 300V-instrument; IEC/EN61010-2-030; IEC/EN61010-031 CAT III 600V
  • EMC: EN61326-1, 2-2
  • Possible number of measurements where battery voltage is within the effective range (measuring every 30 sec): Approx. 1400 times (CLI Rpe: 0 Ω, Rins: 1.1 MΩ)
