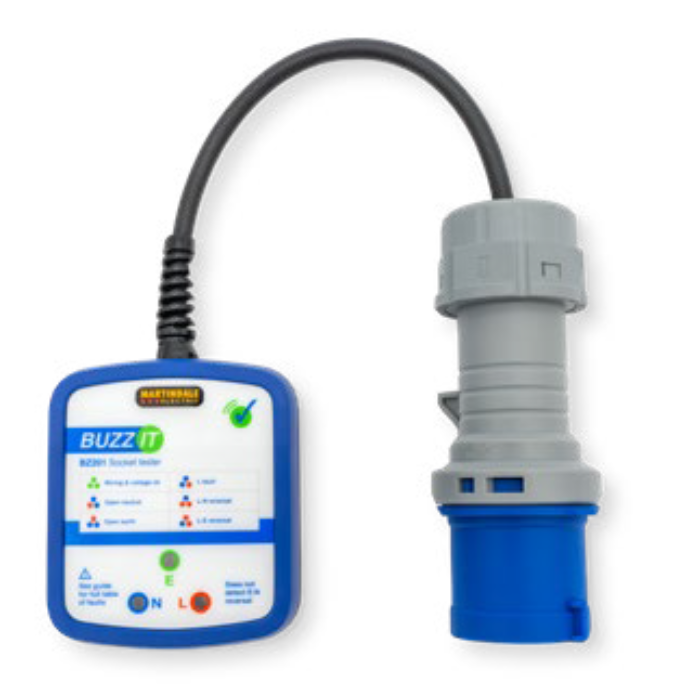

Martindale BZ201 16A 230V Industrial Socket Tester

Martindale
SKU: MARTBZ20116
  • Instant fault detection with three bright LEDs identifying up to 28 wiring issues
  • Has a built-in audible sounder for quick pass confirmation
  • Made from robust ABS moulded housing
More Info
Typically ships in 3-5 working days

Martindale BZ201 16A 230V Industrial Socket Tester

The Martindale BZ201 16A 230V Industrial Socket Tester is designed to efficiently identify potentially unsafe wiring and installation faults in industrial power sockets, making it a useful service tool which helps maintenance teams check socket wiring before installing new plant or equipment.

Conducting test is easy by simply plugging it into a compatible socket. The tester uses clear LED indication system to highlight wiring faults, with up to 28 fault conditions identifiable via the pattern of lit LEDs. If one or more LEDs fail to illuminate, the pattern immediately points to a potential problem. A lookup chart on the tester helps users quickly diagnose common faults, making the process easy even in busy industrial environments.

The tester is fitted with a classic check 230V 16A industrial plug that complies with BS EN IEC 60309-1 standards and it also checks the mains voltage level during testing, providing an additional layer of verification when assessing socket condition.

An integrated audible sounder confirms correct wiring, which is particularly helpful when sockets are difficult to see or located in hard-to-reach areas. The sounder can also be used as a basic fuse finder. When the correct fuse is removed, the buzzer stops, allowing users to quickly identify the correct circuit.

The tester features a robust ABS moulded housing designed for regular use in demanding workplaces. It is maintenance-free and suitable for routine inspection tasks carried out by maintenance and service teams. It is rated for both indoor and outdoor use in dry weather conditions, up to 2000 m altitude, and operates reliably in temperatures of between ‑10°C and 40°C.

Part number: BZ201-16

Key Features

  • Quick & easy testing of single phase industrial socket wiring
  • Detects 28 fault conditions
  • Three bright LEDs with clear & simple fault codes
  • Tough, no maintenance design
  • High / low voltage indication
  • Buzzer for instant pass confirmation
  • Can be used as a basic fuse finder
Specification

Electrical Specifications

  • Nominal operating voltage: 230V AC rms
  • Operating frequency: 50Hz
  • Power consumption: <2.5W
  • Power: from socket under test
  • Standby: after approx. 10 minutes
  • Voltage low indication: <195V ± 5%
  • Voltage high indication: >270V ± 5%
  • Earth neutral voltage high indication: >30V nominal

General specifications

  • Plug type: 16A, 3-pin plug to BS EN IEC 60309-1
  • Dimensions : 91(L) x 80(W) x 38(D)mm
  • Weight: 195g

Environmental specifications

  • Location: Indoor & outdoor use in dry weather conditions only
  • Altitude: up to 2000m
  • Operating environment: -10°C to 40°C at max. 85%RH
  • Mains supply voltage fluctuations: ± 10%
  • Overvoltage category: CAT III 300V

Safety

  • Conforms to: BS EN 61010-1, CAT III 300V, Class II, double insulation

EMC

  • Conforms to: BS EN61326-1, BS EN 61326-2-2
Label Type Size Download
pdf Martindale BZ201 !6A & 32A 230V Industrial Socket Tester Datasheet pdf 319.1 KB Download
