Martindale BZ201 32A 230V Industrial Socket Tester

Martindale
SKU: MARTBZ20132
  • Specifically designed for higher current 32A industrial applications
  • Fitted with a 230V 32A BS EN IEC 60309‑1 plug
  • Made from durable, maintenance‑free ABS housing
More Info
Typically ships in 3-5 working days

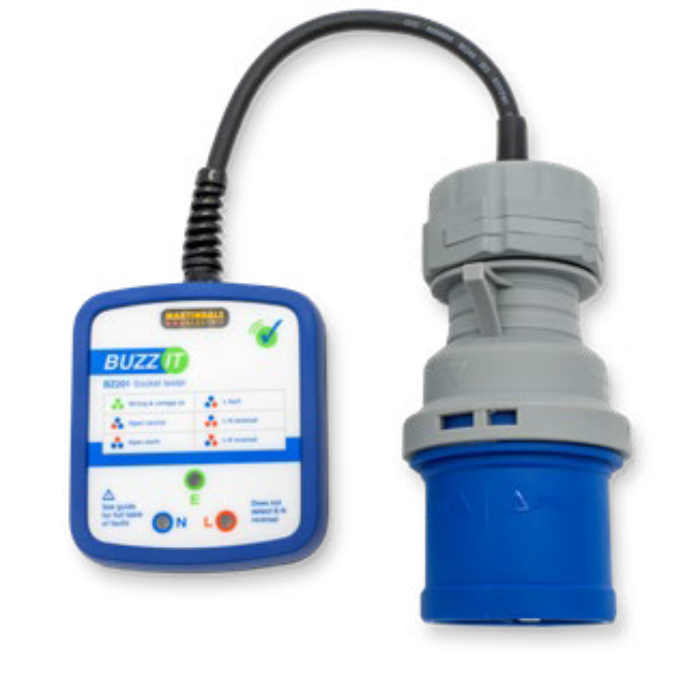

Martindale BZ201 32A 230V Industrial Socket Tester

The Martindale BZ201 32A 230V Industrial Socket Tester is specifically designed for higher current 32A industrial applications, ensuring that even heavy-duty equipment can be tested safely and efficiently. Operation is easy with a simple connection into a compatible 32A BS EN IEC 60309-1 socket.

Three bright LEDs immediately display wiring status, using a clear fail‑safe indication method that identifies up to 28 different wiring fault conditions. Any LED pattern that deviates from the correct configuration should signal a potential issue, allowing users to spot unsafe wiring quickly. A lookup chart on the tester helps simplify fault diagnosis on the spot.

The tester includes high- and low-voltage indications which alert users when there are supply irregularities over 270V or below 195 during testing. This provides an extra layer of safety when assessing industrial power circuits before connecting sensitive or high‑load equipment.

An integrated audible buzzer gives instant confirmation of correct wiring, which comes in handy in environments where sockets are hard to see or located behind machinery and panels. The buzzer also doubles as a basic fuse finder, stopping immediately when the correct circuit fuse is pulled. It features a tough, maintenance‑free ABS moulded housing that withstands regular site use.

Part number: BZ201-32

Key Features

  • Quick & easy testing of single phase industrial socket wiring
  • Detects 28 fault conditions
  • Three bright LEDs with clear & simple fault codes
  • Tough, no maintenance design
  • High / low voltage indication
  • Buzzer for instant pass confirmation
  • Can be used as a basic fuse finder
Specification

Electrical Specifications

  • Nominal operating voltage: 230V AC rms
  • Operating frequency: 50Hz
  • Power consumption: <2.5W
  • Power: from socket under test
  • Standby: after approx. 10 minutes
  • Voltage low indication: <195V ± 5%
  • Voltage high indication: >270V ± 5%
  • Earth neutral voltage high indication: >30V nominal

General specifications

  • Plug type: 32A, 3-pin plug to BS EN IEC 60309-1
  • Dimensions : 91(L) x 80(W) x 38(D)mm
  • Weight: 195g

Environmental specifications

  • Location: Indoor & outdoor use in dry weather conditions only
  • Altitude: up to 2000m
  • Operating environment: -10°C to 40°C at max. 85%RH
  • Mains supply voltage fluctuations: ± 10%
  • Overvoltage category: CAT III 300V

Safety

  • Conforms to: BS EN 61010-1, CAT III 300V, Class II, double insulation

EMC

  • Conforms to: BS EN61326-1, BS EN 61326-2-2


Label Type Size Download
pdf Martindale BZ201 !6A & 32A 230V Industrial Socket Tester Datasheet pdf 319.1 KB Download
