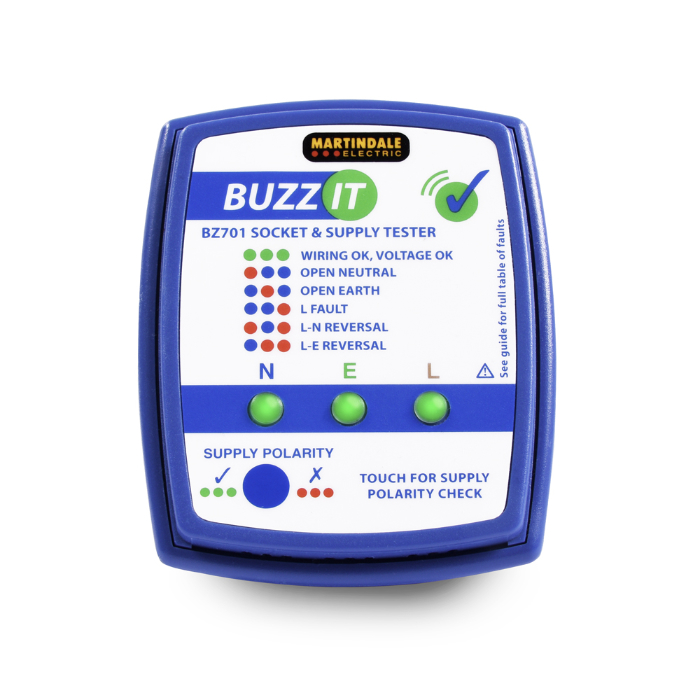

Martindale BZ701 Audible Socket Tester with Mains Polarity Check

Martindale
SKU: MARTBZ701
  • Identify 28 different fault conditions
  • Bright LEDs display
  • Indications for correct wiring
More Info
In Stock - Available Next Day

Martindale BZ701 Audible Socket Tester with Mains Polarity Check

The Martindale BZ701 Audible Socket Tester with Mains Polarity Check provides users with indications for the correct wiring and 28 different fault conditions of sockets.

The BZ701 provides users the ability to check the polarity of the incoming supply using the Blue Polarity Touchpad on the front of the unit. If the supply polarity is correct the operator is alerted by a flashing green LED's and a continuous buzzer. If the polarity is incorrect the LEDs will turn red and a pulse tone on the buzzer. The alerts will continue even after the removal of the finger from the touchpad and further investigation is required.

The BZ701 has a standby mode should the unit be inactive for ten minutes. In stand by mode the lights will extinguish and the central LED will flash Amber and the tone will alert the user every 5 seconds. The BZ701 is Cat III 300V rated.

Key Features

  • Check the incoming mains supply polarity
  • 28 different fault indications
  • Check socket wiring
  • Quick and easy main socket testing
  • High/low voltage indication
  • Red/green LEDs and buzzer indication for 28 fault conditions
  • N E L labelled LEDs quickly identify the source of common faults
  • Stand by mode after ten minutes of inactivity

What's In The Box?

  • Martindale BZ701 Audible Socket Tester
  • BZ701 instruction manual
Specification

Electrical

  • Nominal operating Voltage: 230V AC rms
  • Operating frequency: 50Hz
  • Power consumption: <2.5W
  • Power: From main socket under test
  • Standby: After approx 10 minutes
  • Voltage low indication: <195V ± 5%
  • Voltage high indication: >270V ± 5%
  • Earth Neutral voltage high indication: >30V nominal
  • Supply polarity: Reversal test (L-NE swap at incoming supply)

General

  • Dimensions: 65 x 80 x 59mm
  • Weight: 93g

Environmental

  • Location: Indoor use only
  • Altitude: Up to 2000m
  • Operating environment: -10°C to 40°C at max. 60%RH
  • Mains supply voltage fluctuations: ± 10%
  • Overvoltage category: CAT III 300V
  • Pollution degree: 2

Safety

  • Conforms to: Conforms to BS EN 61010-1:2010+A1:2019, Class II, Reinforced insulation

EMC

  • Conforms to: BS EN 31326-1/li>
Label Type Size Download
pdf Martindale BZ701 Audible Socket Tester Datasheet pdf 357.1 KB Download
