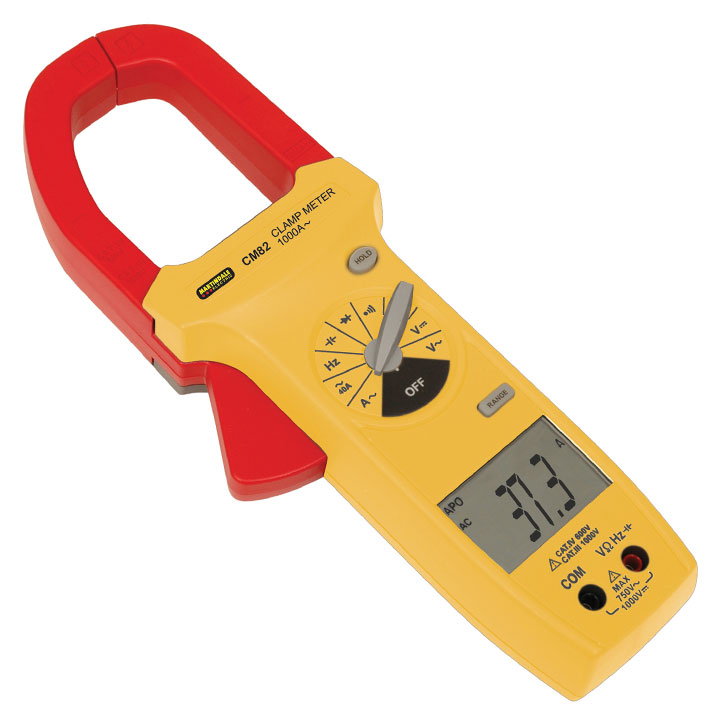

Martindale CM82 AC Clamp Meter

Martindale
SKU: MARTCM82
  • Accurate measurement of AC voltage to 750V
  • DC voltage to 1000V and AC current to 1000A
  • Light enough for one handed operation but still robust enough for use in harsh environments
More Info
In Stock - Available Next Day

Martindale CM82 AC Clamp Meter

The Martindale CM82 is a high specification 1000A clamp meter, a compact meter that provides accurate measurement of AC voltage to 750V, DC voltage to 1000V and AC current to 1000A. It is light enough for use with one hand but still robust enough for use in harsh environments.

The Martindale CM82 is performs the following measurements: resistance measurements to 40MΩ, capacitance to 4mF, frequency to 1mHz and a 400Ω continuity test and diode test.

The CM82 is both manual or auto ranging and with a large 51mm clamp jaw size opening making it suitable for use within an industrial ewnvironment where larger cables and conductors are found. The CM82 also has a hold function which stores the last reading obtained for temporary recall.

What's In The Box?

  • Martindale CM82 AC Clamp Meter
  • Bespoke carry case
  • Set of TL16 Test Leads
  • 9V PP3 Battery (Installed)
  • Instruction manual
  • Manufacturers 12 month warranty
Specification

All specified accuracies are at 23°C ± 5°C, <70% RH for 1 year

Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)

All accuracies below are expressed as ± (percentage of reading + digits)

DC Voltage
Range Resolution Input Impedance Accuracy
400mV 0.1mV >100MΩ 0.5% + 2
4V 0.001V 10MΩ
40V 0.01V 9.1MΩ
400V 0.1V
1000V 1V
AC Voltage
Range Resolution Input Impedance Accuracy (50Hz to 500Hz)
400mV 0.1mV >100MΩ Not specified
4V 0.001V 10MΩ 1.5% + 5
40V 0.01V 9.1MΩ
400V 0.1V
750V 1V
AC Current
Range Resolution Accuracy
50Hz to 60Hz/60 to 400Hz
40A 0.01A 2.0% + 6
3.0% + 6
400A 0.1
1000A 1A 2.0% + 6 (≤600A)
2.5% + 6 (>600A)
3.0% + 6 (≤600A)
3.5% + 6 (>600A)
Resistance
Range Resolution Open Circuit Voltage Accuracy
400Ω 0.1Ω -1.2V DC 1.0% + 5
4kΩ 0.001kΩ -0.45V DC
40kΩ 0.01kΩ
400kΩ 0.1kΩ
4MΩ 0.001MΩ 2.0% + 5
40MΩ 0.01MΩ 3.5% + 5
Capacitance
Range Resolution Accuracy
4nF 0.001nF Not specified
40nF 0.01nF
400nF 0.1nF
4μF 0.001μF 3.0% + 15
40μF 0.01μF 3.0% + 10
400μF 0.1μF
4mF 0.001mF 5.0% + 10
Frequency
Range Resolution Accuracy
4kHz 0.001kHz 0.1% + 3
40kHz 0.01kHz
400kHz 0.1kHz
1MHz 0.001MHz
