Martindale IN2203 Advanced Insulation Tester

Martindale
SKU: MARTIN2203
  • Wide-range insulation testing up to 1000V / 20GΩ
  • PI & DAR functions for advanced insulation analysis
  • Safe, rugged design with live circuit detection and backlit display
More Info
In Stock - Available Next Day

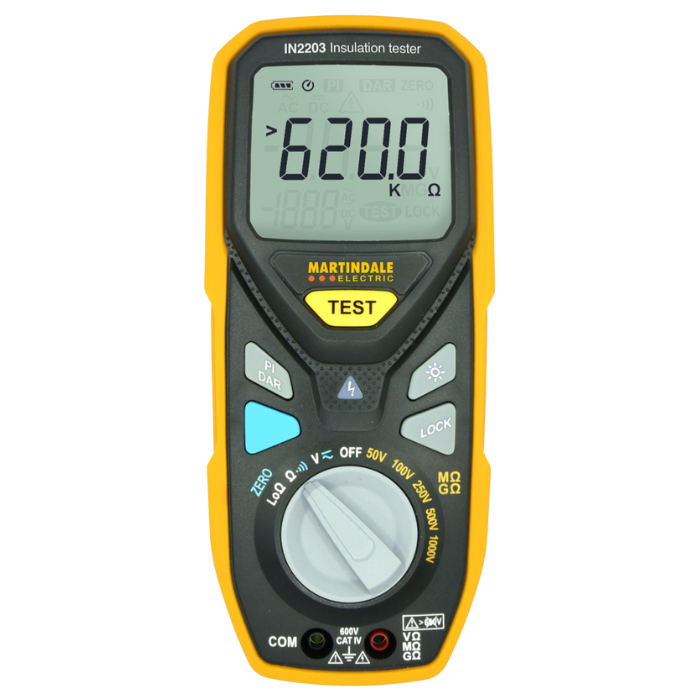

Martindale IN2203 Advanced Insulation Tester

The Martindale IN2203 Advanced Insulation Tester is a versatile instrument designed for both installation and service applications, offering a comprehensive range of measurement functions in one compact device. The unit combines a fully featured insulation tester with additional essential electrical test functions. It provides five selectable insulation test voltages up to 1000V, with measurement capability up to 20GΩ. A low-ohms earth-bond continuity test (200mA) is also included. For enhanced safety, the IN2203 features live circuit detection that prevents testing when voltage is present.

The IN2203 can accurately assess insulation quality and its stability over time by supporting measurement of both the Polarisation Index (PI) and the Dielectric Absorption Ratio (DAR). Additional functions include AC/DC voltage measurement up to 1000V, resistance measurement up to 600kΩ, and a continuity test with audible buzzer.

Built for durability, the IN2203 features a rugged design with a protective rubber holster for use in demanding environments. The large backlit LCD display ensures clear visibility in all lighting conditions, while auto power-off after 10 minutes helps extend battery life. The instrument comes complete with a Martindale TC57 heavy-duty nylon carry case for convenient storage of accessories, and a Martindale TL47 unfused test lead set is also included.

Martindale part number: IN2203

Key Features

  • 5 selectable insulation test voltages up to 1000V
  • Insulation resistance measurement up to 20GΩ
  • Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) measurements for assessing insulation quality over time
  • Lo-ohms earth bond continuity test (200mA) for accurate ground connection verification
  • Automatic live circuit detection prevents testing on love circuits for user safety
  • AC and DC voltage measurement up to 1000V
  • Resistance measurement up to 600kΩ
  • Continuity testing with audible buzzer for quick identification of circuit integrity
  • Large backlit LCD display for easy reading in all lighting conditions
  • Rugged construction with protective rubber holster for durability in harsh environments
  • Auto power-off function (after 10 minutes) to extend battery life
  • Supplied with TC57 carry case and TL47 unfused test lead set

What's In The Box?

  • IN2203 Insulation Tester
  • TC57 Carry Case
  • TL47 Unfused Test lead Set
  • User Manual
Specification

AC/DC Voltage

  • Range – 60.00V / 600.0V / 1000V
  • Resolution – 0.01V / 0.1V / 1V
  • Accuracy (AC: 45 – 500Hz) - ± 2% of reading + 5 digits

Resistance

  • Range - 600.0Ω / 6.000KΩ / 60.00KΩ / 600.0KΩ
  • Resolution - 0.1Ω / 0.001KΩ / 0.01KΩ / 0.1KΩ
  • Accuracy - ± 2% of reading + 5 digits

Continuity

  • Range - 600.0Ω
  • Resolution - 0.1Ω
  • Beeper - ≤7Ω ± 1Ω

LoΩ

  • Range - 6.00Ω / 60.0Ω
  • Resolution - 0.01Ω / 0.1Ω
  • Accuracy - ± 2% of reading + 3 digits

General Specifications

  • Auto power off – Approx. 10 minutes
  • Approvals – EN 61010 600V CAT IV / 1000V CAT III
  • Electromagnetic compatibility – EN 61326-1
  • Dimensions/weight - 206(L) x 90(W) x 51(H) mm / Approx. 510g (with holster & battery)
