Martindale NC1 Non-Contact Magnetic Field Detector

SKU
MARTNC1
  • Detects magnetic fields greater than 10mT
  • Yellow LED and audible buzzer indicate magnetic field
  • Ideal for testing solenoid valves and relays
More Info
inc VAT £19.20 ex VAT £16.00
In Stock - Available Next Day


Product Details

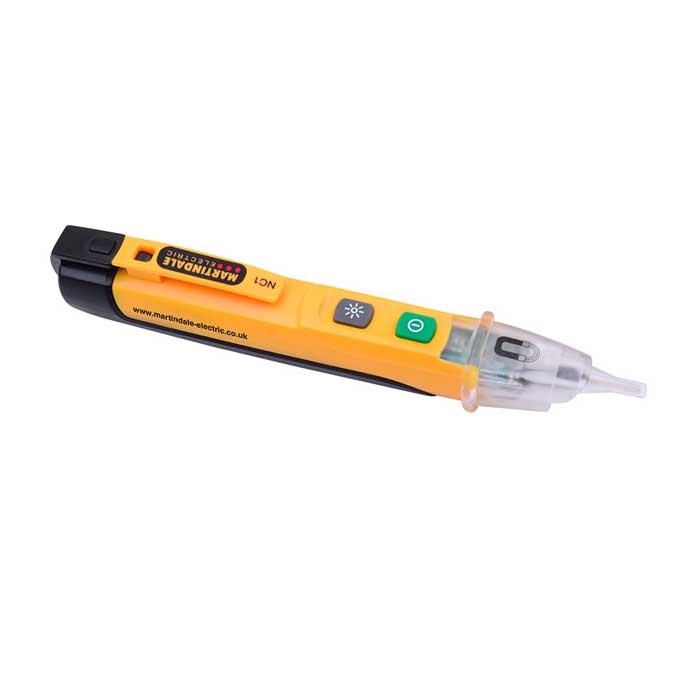

Martindale NC1 Non-Contact Magnetic Field Detector

Martindale NC1

The Martindale NC1 Non-Contact Magnetic Field Detector is capable of detecting magnetic fields greater than 10mT. It allows the user to test solenoid valves and relays without needing to dismantle the system and gives an audible and visual indication of magnetic fields via a yellow LED and buzzer.

Operating the Martindale NC1 is very easy. It has just two buttons and the extended probe design makes it very easy to target a conductor. The tester has an integrated LED torch and the indicator LED will pulse when it is on. The ergonomic pen design makes the detector easy to use and there is a clip to attach to a belt.

The Martindale NC1 has a safety rating of Cat IV 1000V and is particularly useful for troubleshooting and servicing on control equipment in manufacturing, energy, transport, and any industry employing process control.

Martindale part number: MARNC1

Key Features

  • Detects magnetic fields over 10mT
  • Audible and visual indication
  • Ideal for testing solenoid testing
  • Integrated LED torch
  • Ergonomic pen-style design
  • Cat IV 1000V safety rating
NC1 NC2 NC3 NC4
AC Voltage Range 200-1000V 200-1000V 12-1000V
50-1000V
Frequency Range 40-400Hz 40-400Hz 40-400Hz
Magnetic field detection >10mT >10mT
LED indication Yellow LED Red LED Yellow / Red LED Red LED
Audible indication
Power on pulse LED
Low battery indication
Auto Power Off
LED torch
What's In The Box?
  • Martindale NC1 Non-Contact Magnetic Field Detector
  • 2 x 1.5V AAA batteries
  • Instruction manual for Martindale NC1
More Information
Specification
  • Magnetic field sensitivity: >10mT
  • Operating/storage temperature: 0˚C to 40˚C
  • Operating/storage temperature: ≤80% RH
  • Altitude: ≤2000m
  • Pollution degree: 2
  • Power: 2 x 1.5V AAA batteries
  • Dimensions: 158mm x 20mm x 27mm
  • Weight: 55g
  • Standards: BS EN 61010-1:2010 CAT IV 1000V Class II, Double insulation
  • IP rating: IP40 to BS EN 60529
  • EMC: BS EN 31326-1
Icon Filename Type Size Download
pdf Martincalde NCx Voltage Detector Range pdf 874.3 KB Download
