Martindale NC3 Non-Contact Voltage Detector

Martindale
SKU: MARTNC3
  • Detects AC voltage from 200V to 1000V with frequency range of 40Hz to 400Hz
  • Detects magnetic field above 10mT, ideal for testing solenoid valves and relays
  • Elongated detection tip and dual yellow/red LEDs indicate voltage and magnetic field
More Info
In Stock - Available Next Day

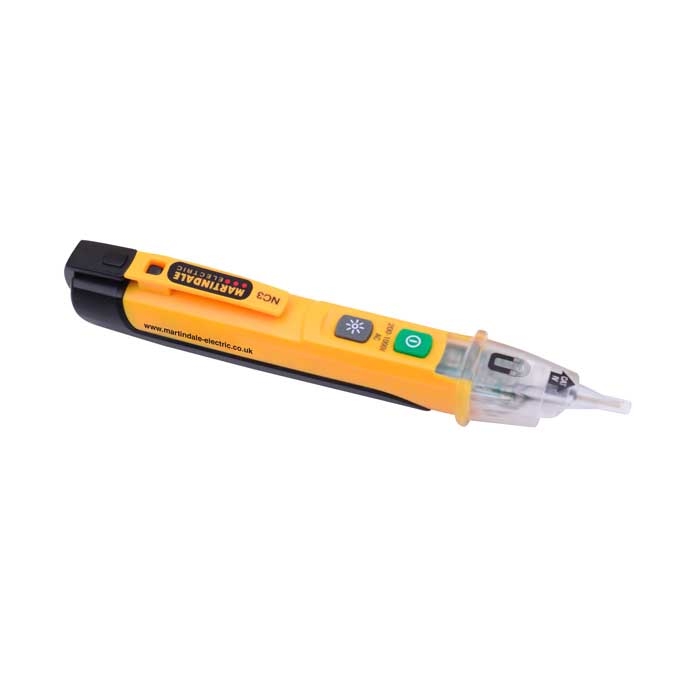

Martindale NC3 Non-Contact Voltage Detector

Martindale NC3

The Martindale NC3 Non-Contact Voltage Detector is capable of detecting both AC voltage and magnetic fields. The AC voltage detection range goes from 200V to 1000V RMS with a frequency range of 40Hz to 400Hz and it can also detect magnetic fields greater than 10mT. It has an extended detection tip and multiple useful applications.

The magnetic field detection function is particularly useful for testing solenoid valves and relays without having to disassemble them, thus making the tester suitable for those working in process control and any other industry that relies on process loops. The Martindale NC3’s voltage detection feature is useful for differentiating between live and neutral lines.

The Martindale NC3 gives a visual indication of magnetic field via a yellow LED and AC voltage via a red LED whilst also providing an audible indication. It also has an integrated torch and a pen shape that has a pocket clip for added practicality. It also has a Cat IV 1000V safety rating.

Martindale part number: MARNC3

Key Features

  • AC voltage range: 200V to 1000V RMS
  • Frequency range: 40Hz to 400Hz
  • Magnetic field detection: >10mT
  • Yellow/red LED indication
  • Elongated detection tip
  • Ideal for testing solenoid valves/relays
  • Detect voltage in socket and junction boxes
  • Pen shape with integrated LED torch
  • Cat IV 1000V safety rating
NC1 NC2 NC3 NC4
AC Voltage Range 200-1000V 200-1000V 12-1000V50-1000V
Frequency Range 40-400Hz 40-400Hz 40-400Hz
Magnetic field detection >10mT >10mT
LED indication Yellow LED Red LED Yellow / Red LED Red LED
Audible indication ✔ ✔ ✔ ✔
Power on pulse LED ✔ ✔ ✔ ✔
Low battery indication ✔ ✔ ✔
Auto Power Off ✔ ✔
LED torch ✔ ✔ ✔

What's In The Box?

  • Martindale NC3 Non-Contact Voltage Detector
  • 2 x 1.5V AAA batteries
  • Instruction manual for Martindale NC3
Specification
  • Magnetic field sensitivity: >10mT
  • Maximum voltage: 1000V AC RMS
  • Voltage sensitivity range: 200 to 1000V AC RMS
  • Frequency range: 40 to 400Hz
  • Operating/storage temperature: 0˚C to 40˚C
  • Operating/storage temperature: ≤80% RH
  • Altitude: ≤2000m
  • Pollution degree: 2
  • Power: 2 x 1.5V AAA batteries
  • Dimensions: 158mm x 20mm x 27mm
  • Weight: 55g
  • Standards: BS EN 61010-1:2010 CAT IV 1000V Class II, Double insulation
  • IP rating: IP40 to BS EN 60529
  • EMC: BS EN 31326-1
Label Type Size Download
pdf Martincalde NCx Voltage Detector Range pdf 874.3 KB Download
