Martindale PSI4000 Three Phase Sequence Indicator

SKU
MARTPSI4000
  • Non-contact phase rotation testing
  • Indicates clockwise and anti-clockwise
  • Enhanced brightness switch for clear indication in strong ambient light.
More Info
inc VAT £226.80 ex VAT £189.00
In Stock - Available Next Day


Product Details

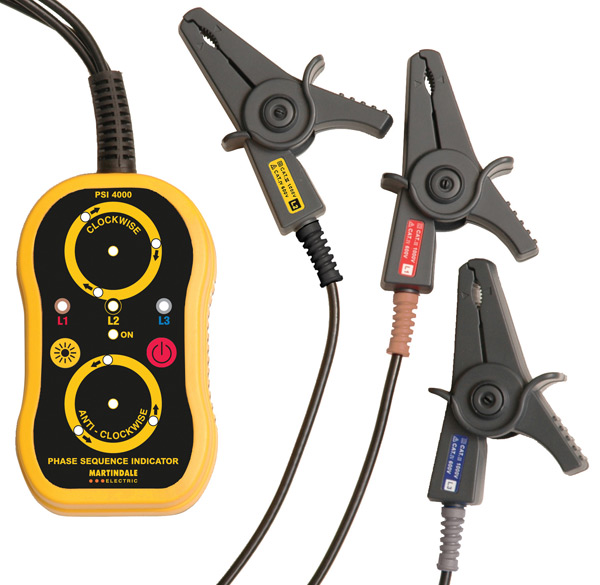

Martindale PSI4000 Three Phase Sequence Indicator

The Martindale PSI4000 Three Phase Sequence Indicator enables non-contact measurement of phase rotation via inductive crocodile clips. Simply attach the crocodile clips around the conductors and the LEDs on the unit will give a clear indication of either clockwise or anti-clockwise phase rotation. It can be used to quickly identify three phase sequences for motor installations and repair.

The PSI4000 phase rotation tester can be used on both insulated and non-insulated conductors and also has a switch for increasing the brightness of the LEDs so that phase sequence can be clearly visible in all light conditions.

In addition the Martindale PSI4000 provides an audible indication of rotation and has a magnetised back that enables hands free testing by easily fixing to a metal surface for convenience.

An "Auto Off" function activates after five minutes of non detection to preserve battery life.

More Information
Specification
  • Measurement Principle: Static Induction
  • Input Voltage: 150V - 1000V 3 Phase AC
  • Frequency Range: 45 - 65Hz
  • Battery Current Consumption: 15mA
  • Cable Length: 800mm
  • Power Source: 1.5V x 4 AA / LR6 alkaline batteries
  • Auto-Off: After 5 mins of non activity
  • Safety Standard: EN 61010 CAT III 1000V, CAT IV 600V, EN 61326-1
  • Weight: 370g
  • Dimensions: 118 x 69 x 38mm
