Martindale RT80 Optical Tachometer

SKU: MARTRT80
  • Measuring range: 100 to 99999 rpm, 1.7 to 1666 rps
  • Resolution: 0.1 rpm (100.0 to 19999.9 rpm), 0.1 rps (1.7 to 333.3 rps), 1 rpm (20000 to 99999 rpm),1 rps (334 to 1666 rps)
  • Useful hold function for maximum, minimum and average readings range
More Info
Typically ships in 1-3 working days

Martindale RT80 Optical Tachometer

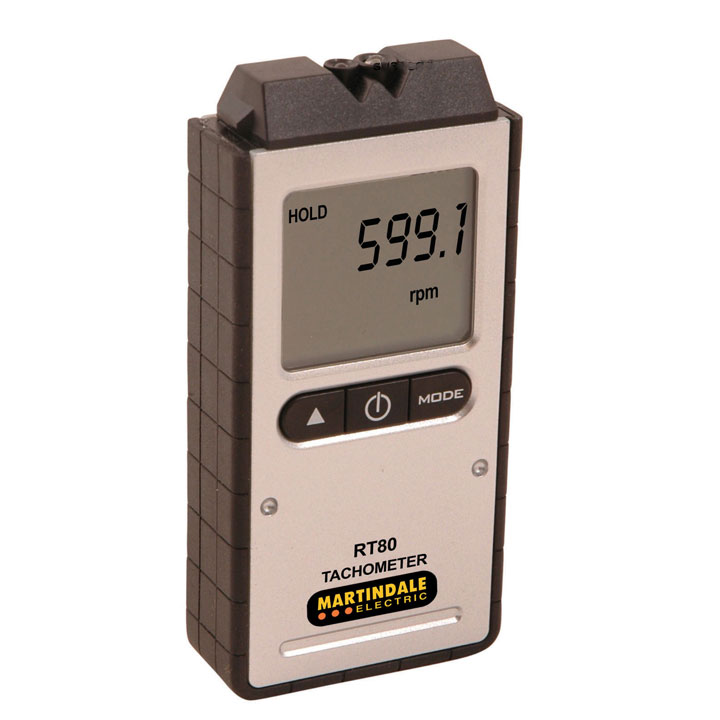

The Martindale RT80 Optical Tachometer is a non-contact tachometer for applications where direct contact RPM measurements are not possible. The RT80 rev counter displays RPM or RPS readings on the clear LCD display, and also has a useful hold function for maximum, minimum and average readings. The meter is supplied with reflective tape for measuring rotating objects which do not have the reflective surface required for accurate measurement.

What's In The Box?

Protective cover for safe storage
Reflective Tape
2 x 1.5V AAA batteries
Detachable carry strap
Instructions

Specification

Measuring range: 100 to 99999 rpm, 1.7 to 1666 rps

Resolution: 0.1 rpm (100.0 to 19999.9 rpm), 0.1 rps (1.7 to 333.3 rps), 1 rpm (20000 to 99999 rpm), 1 rps (334 to 1666 rps)

Accuracy: ± (0.02% of reading + 1 digit)

Display: liquid crystal display

Measurement rate: once per second

Power: 2 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A)

Continuous operating time: 30 hours typical.

Low battery indication: The battery symbol is displayed when the battery voltage drops below the operating level.

Auto power off: after approx. 10 minutes

Dimensions: 132.9(L) x 50.9(W) x 24.7(D) mm

Weight: 110g approx. including batteries

environment: 0°C to 50°C at <70% R.H.

Storage environment: -20°C to 60°C, <80% R.H. with batteries removed.

Conforms to BS EN61326-1
