Martindale TB118 Gas Engineer’s Electrical Test Kit

Martindale
SKU: MARTTB118KIT
  • A complete kit for gas engineers seeking to comply with Technical Bulletin TB118
  • Facilitates safe isolation procedure compliant with HSWA and EWR Acts
  • Includes voltage tester, proving unit, loop impedance kit and locking out device
More Info
Contact for lead time

Martindale TB118 Gas Engineer’s Electrical Test Kit

The Martindale TB118 Gas Engineer’s Electrical Test Kit comprises all of the electrical test instruments required to comply with Technical Bulletin TB118, but more importantly compliance with statutory health and safety regulations including the Health and Safety at Work Act 1974 (HSWA) and the Electricity at Work Regulations 1989 (EWR).

A complete solution, the kit contains the following components:

Martindale VIPD138 Safe Isolation Kit

A kit containing a Martindale VI13800 capable of testing for AC/DC voltages from 50V to 600V in a range of different sockets and conductors, thus complying with Electricity Council guidance. The tester conforms to BS EN61243-3:2010 and indicates nominal voltage level in addition to warning of voltage presence.

A PD440 proving unit is included in order to verify the performance of the tester before and after every use, as recommended in all safe isolation procedures, and a special carry case is provided for both instruments.

Martindale EZ650 Loop Testing Kit

Loop impedance testing is one of the most important electrical tests as it determines whether a circuit is safe in the event of a fault. This kit comes in a convenient carry case and features a EZ150 socket tester in special multipurpose housing with an IEC socket.

Adaptors to crocodile clips, a test probes, and a three-pin plug are provided which allows it to perform a polarity and earth test on mains plugs, 1-with-3-way flying leads, or bare wires.

Martindale LOKFS1 Fused Spur Locking Out Device

This universal locking out device can fit around a wide range of fused spur outlets and is easy to apply and remove as required. It has space for flex outlets and forms part of a safe isolation procedure.

Martindale PAD10R Padlock

A secure padlock with a unique key that is compatible with the Martindale LOKFS1 as well as safe isolation hasps when working in a team of electricians. It cannot be removed by accident, thus preventing interference from passers by.

Isolated Warning Sign

One of the most important parts of the safe isolation procedure is to warn passers by that an electrical circuit is locked off as electricians are at work. This sign makes sure that everyone knows not to re-energise the circuit.

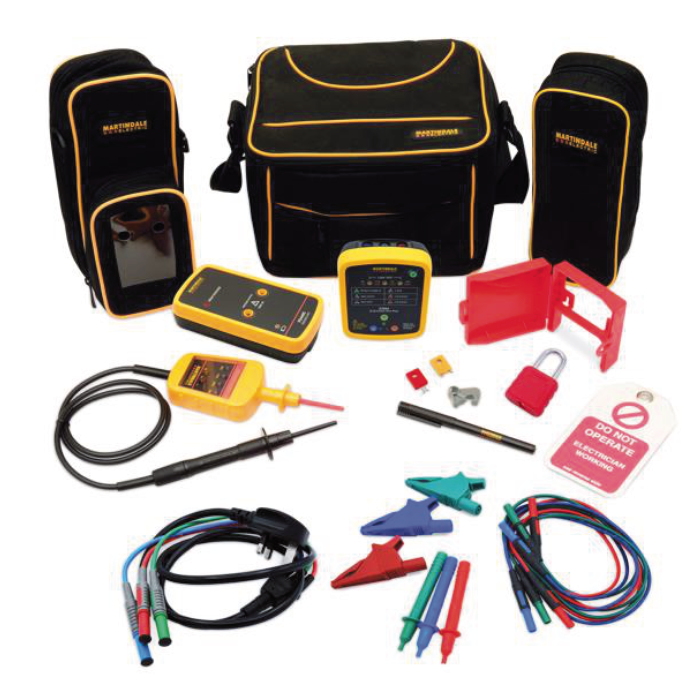

What's In The Box?

  • Martindale VI13800 Voltage Tester
  • Martindale PD440 Proving Unit
  • Martindale VIPD Kit Carry Case
  • Martindale EZ650 Loop Tester
  • Three-pin plug adaptor
  • Test probe adaptors
  • Crocodile clip adaptors
  • Martindale LOKFS1 Lock Out Device
  • Martindale PAD10R Padlock
  • Isolated Warning Sign
Specification

Martindale VI13800 Voltage Indicator

  • Nominal Voltage Range: 50 - 600V AC / DC
  • Nominal Voltage Threshold Indications: 50, 100, 200, 400 V DC/AC rms
  • Nominal Voltage threshold tolerance: < 85% of marked threshold indication
  • Polarity indication: from approx 12V DC/AC rms
  • AC/DC voltage detection: automatic
  • Range detection: automatic
  • Response time: < 0.1s
  • Frequency range: DC, 1 - 400 Hz
  • Test current: < 3.5mA at 600V DC/AC rms
  • Duty ratio: 30s ON (operated) / 240s OFF (recovery)

Environmental

  • Temperature & Humidity (operating & storage): -10°C to 55°C ≤ 85% R.H. / -10°C to 55°C ≤ 85% R.H.
  • Altitude: up to 2000m
  • IP rating: IP54

General

  • Power: from circuit under test
  • Dimensions: 205(L) x 67(W) x 27(D) mm
  • Weight: 130g approx.
  • Includes: Martindale MARVI13800 Instruction manual

Safety

  • Conforms to BS EN 61243-3:2010 CAT IV 600 V, CAT III 1000V
  • Class II, Double Insulation
  • Pollution Degree: 2
  • EMC: Conforms to BS EN 61326-1

Martindale PD440 Proving Unit

  • Output Voltage: 440V nominal
  • Operating Temperature:  -10°C to +40°C at max 70% RH
  • Battery: 6 x LR6 / MN1500 1.5V alkaline batteries or equivalent
  • Dimensions: 143 x 84 x 50mm
  • Weight: 400g approx including battery

Martindale EZ650 Loop Testing Kit

  • Nominal operating voltage 230 V
  • Frequency: 50 Hz
  • Non-trip Earth loop impedance ranges: 0 - 1.7 - 5 - 10 - 100 - 200 - 500 O
  • Earth loop threshold accuracy: ±(10% + 0.3 O)
  • Voltage low indication: <195 V
  • Voltage high indication: >270 V
  • Open earth indication: >500 O
  • Dimensions: Approx 65mm x 65mm x 50mm
  • Weight: Approx 64g
  • Power supply: From mains
  • Power consumption: <1.6 W
  • Overvoltage category: Cat II / 300 V
  • Pollution degree: 2
