Martindale TEK100 Non-Contact Voltage Indicator

A low cost voltage indicator that detects 100V to 600V AC without the need for physical contact with the conductor.
More Info
Typically ships in 1-3 working days

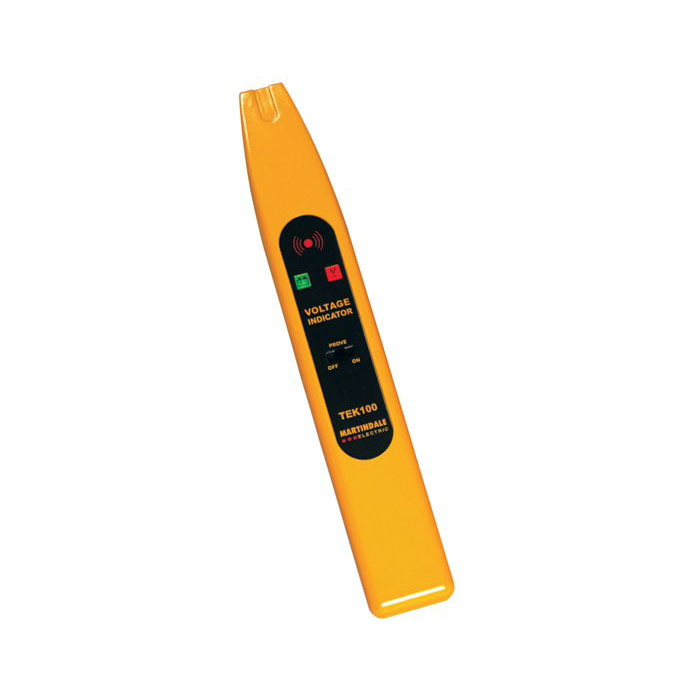

Martindale TEK100 Voltage Indicator - MARTEK100

The Martindale TEK 100 is suitable for detecting 100V to 600V AC without requiring physical contact with the conductor. The presence of any voltage between 100V and 600V AC will generate an audible tone, together with a red visual indication on the TEK100.

The integral self test activates the sensor in the tip of the tester at 50Hz as well as checking the battery LED. The entire circuit, not just the indicator LED, is therefore tested. This proves that the unit is fully functional and avoids the need for a separate proving unit.

  • Voltage Range: 100-600V
  • Frequency Range: 50Hz to 50kHz
  • Integrated self test proving function sensitivity: Registers at 3mm for 100V, 50Hz, 23mm for 240V, 50Hz (distances are from the tip of the unit to a flat PVC twin core and earth cable suspended in free space)
  • Visual Indication: Red LED
  • Audible Indication: 2kHz tone
  • Battery low: Green LED
  • Operating temperature: 0°C to 40°C
  • Supply: 9V alkaline battery, MN1604 or equivelant (excluded)
  • Housing: Flame retardant ABS
  • Dimensions: 202 X 32 X 22mm
  • Weight: 140g approx (excluding battery)
