Megger DCM1500S Solar Clamp Meter

SKU: MEGGDCM1500S
  • 2000 V DC & 1500 TRMS V AC measurement
  • Megger Link app compatible
  • Auto ranging and smart hold features
More Info
In Stock - Available Next Day

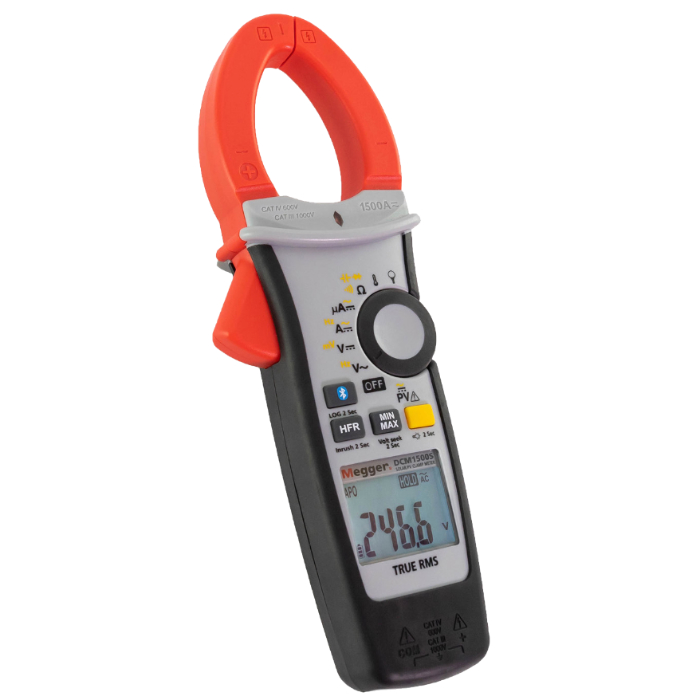

Megger DCM1500S Solar Clamp Meter

The Megger DCM1500S Solar Clamp Meter is the ideal tool for the installation, maintenance and testing of solar PV systems, in addition to standard AC and DC electrical equipment. This meter measures up to 2000V DC and 1500V AC, as well as TRMS 1500 A AC/DC and boasts useful features including auto ranging, min/max hold and inrush current measurement.

The DCM1500S possesses some many useful features including a large and clear backlit display and an automatic torch in the clamp jaw to assist with use in poorly lit spaces. The smart data-hold function builds on the standard holds function by giving the user an audible warning if the held reading increases by 50 counts or more.

With the free Megger Link App, measurement values can be remotely monitored from any smart device (phone or tablet) using integrated Bluetooth. This features provides a live trend graph and the ability to sample and log values for analysis.

This clamp is designed with solar array installation and maintenance in mind, where there is a requirement to measure current, volts, resistance and frequency to establish proper operation. The increased testing parameters offer a great deal of flexibility, while the thermocouple function allows technicians to record temperatures in place such as the rear of solar panel modules. The Megger DCM1500S is a great choice for those looking for a well-equipped instrument for use within the solar industry, but also serves well for use with other AC and DC equipment.

What's In The Box?

  • Megger DCM1500S Solar Clamp Meter
  • DCM 4mm Lead Set (including probes & crocodile clips)
  • TP100 K-type Thermocouple probe
  • PVHV1 Lead (4mm plugs)
  • PVHV2 Lead (MC4PV) Plugs)
  • Hard Carry Case
Specification

DC mV

  • Range: 600.0mV
  • OL Reading: 660.0mV
  • Resolution: 0.1mV
  • Accuracy: ± (0.7% + 5D)

DC Voltage

  • Range: 600 - 1000V
  • OL Reading: 660-1100V
  • Resolution: 0.1-1V
  • Accuracy: ± (0.7% + 2D)

AC Voltage

  • Range: 600-1000V
  • OL Reading: 660-1100V
  • Resolution: 0.1-1V
  • Accuracy: ± (1.0% + 5D)

PV DC Voltage (using PVHV1 or PVHV2 lead set)

  • Range: 600-2000V
  • OL Reading: 660-2200V
  • Resolution: 0.1-1V
  • Accuracy: ± (2.0% + 5D)

PV AC Voltage (using PVHV1 or PVHV2 lead set)

  • Range: 600-1500V
  • OL Reading: 660-1600V
  • Resolution: 0.1-1V
  • Accuracy: ± (2.0% + 5D)

AC/DC μA

  • Range: 400-4000μA
  • OL Reading: 440-4400μA
  • Resolution: 0.1-1μA
  • ± (1.0% + 3D)

AC/DC Current

  • Range: 60-600-1500A
  • OL Reading: 66-660-1550A
  • Resolution: 0.01-0.1-1A
  • Accuracy: ± (2.0% + 5D)

Frequency

  • Range: 100hz-1000hz-10,000kHZ
  • OL Reading: 100hz-1000hz-10,000kHZ
  • Resolution: 0.01Hz-0.1Hz-0.001kHz
  • ± (0.3% + 3D)

Resistance

  • Range: 600Ω-6kΩ-60kΩ-600kΩ
  • OL Reading: 660Ω-6.6kΩ-660kΩ-660kΩ
  • Resolution: 0.1Ω-0.001kΩ-0.01kΩ-0.1Ω
  • Accuracy: ± (0.9% + 5D)/± (0.9% + 2D)

Diode

  • Range: 1.500V
  • OL Reading: 1.550V
  • Resolution: 0.001V
  • Accuracy: ± (0.9% + 2D)

Capacitance

  • Range: 100-1000μF
  • OL Reading: 110-1100μF
  • Resolution: 0.1-1μF
  • Accuracy: ± (1.9% + 2D)

Voltseek

  • Voltage Range of High Sensitivity: 80-1000V
  • Voltage Range of Low Sensitivity: 160-1000V

Temperature

  • Range: -40°C-400°C
  • OL Reading: 440-824°C
  • Resolution: 0.1°C
  • Accuracy: ± (1% + 20D)
