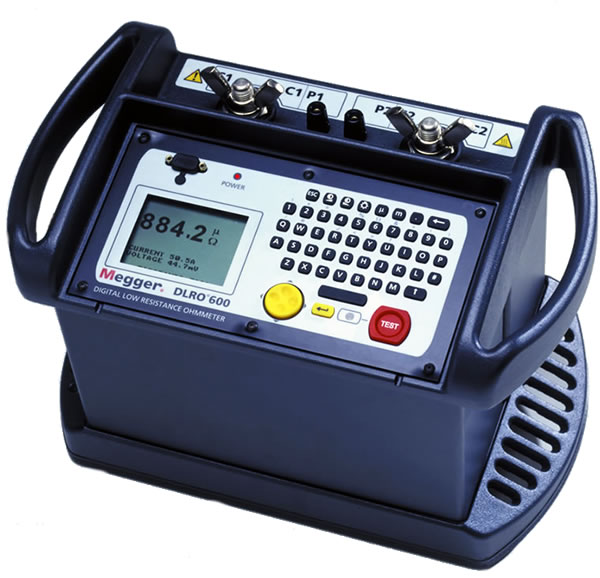

Megger DLRO600 Low Resistance Ohmmeter

SKU
MEGGDLRO600
Measures resistances between 0.1 micro ohms and 1 Ohm at high currents up to 600 Amps. Test circuit breaker contacts, switch contacts and busbar joints.
More Info
inc VAT £5,640.00 ex VAT £4,700.00
Made to Order


Product Details

Megger DLRO600 Low Resistance Ohmmeter

Digital Low Resistance Ohmmeter (Ductor) Features:

  • Small and weighs less than 15kg
  • Test currents from 10 A to 600 A d.c.
  • 0.1 µΩ best resolution
  • On board memory for up to 300 test results and notes
  • RS232 port to download stored results or for real time output to a printer
  • Select from a DLRO600 supplied with standard 5m lead set, or select your own test lead set

The Megger DLRO600 measures resistances between 0.1 µΩ and 1 Ω, at high currents.This versatile ductor instrument can provide test currents from 10 amps up to 600 amps subject to the load resistance and supply voltage. A large liquid crystal display provides all the information needed to perform a test; all test parameters and measurement results are displayed. The Megger DLRO 600 with its high current capability and compact design make it suitable for testing circuit breaker contacts, switch contacts, busbar joints or other applications where high current up to 600 amps is needed.

Megger DLRO600 Test Lead Options

The Megger DLRO600 is available to order supplied with a choice of different lengths and cross sectional areas of test leads. As standard, it is supplied with 2 x 50 mm2 current leads with clamps and 2 x potential leads with clips.

Both popular 10m 70mm2 Test Leads (6220-756) and 15m 95mm2 Test Leads (6220-757) are also available, please select your required choice from the options above. All test lead sets include:

  • Pair of flexible high current capacity (600 A cont.) leads, together with a separate pair of lightweight potential leads.
  • Current leads are fitted with heavy duty sprung clamps (60 mm jaw capacity).
  • Potential leads fitted with smaller HD crocodile clips (22 mm jaw capacity).

For a full list of available test leads, please click here and contact us for a price and availability.

What's In The Box?
  • Megger DLRO 600
  • 5m test leads (supplied with standard product)
  • 2 current leads with clamps (supplied with standard product)
  • 2 x potential leads with clips and a bag for the leads (supplied with standard product)
  • Download Manager software
  • RS232 download cable
  • User Guide on CD-ROM
  • Quick Start Guide (English)
  • Warranty card
More Information
Specification

For full spec, please see attached datasheet.

Icon Filename Type Size Download
pdf Megger DLRO600 Specification pdf 336 KB Download
pdf Megger DLRO Test Leads pdf 937.5 KB Download

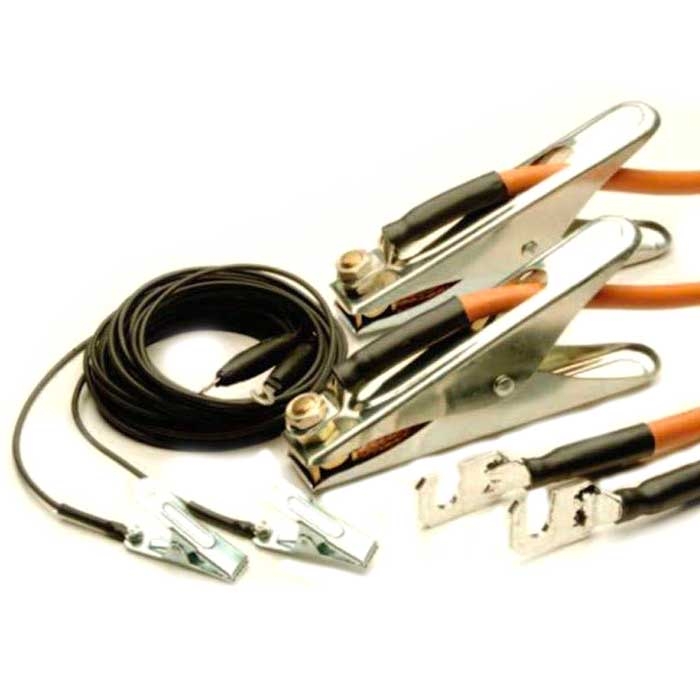

  1. Megger DLRO200/600 10m Test Lead Set (6220-756)
    Megger DLRO200/600 10m Test Lead Set (6220-756)
    inc VAT £954.00 ex VAT £795.00
    Typically ships in 5-7 working days
  2. Megger DLRO200/600 15m Test Lead Set (6220-757)
    Megger DLRO200/600 15m Test Lead Set (6220-757)
    inc VAT £1,740.00 ex VAT £1,450.00
    Typically ships in 5-7 working days
