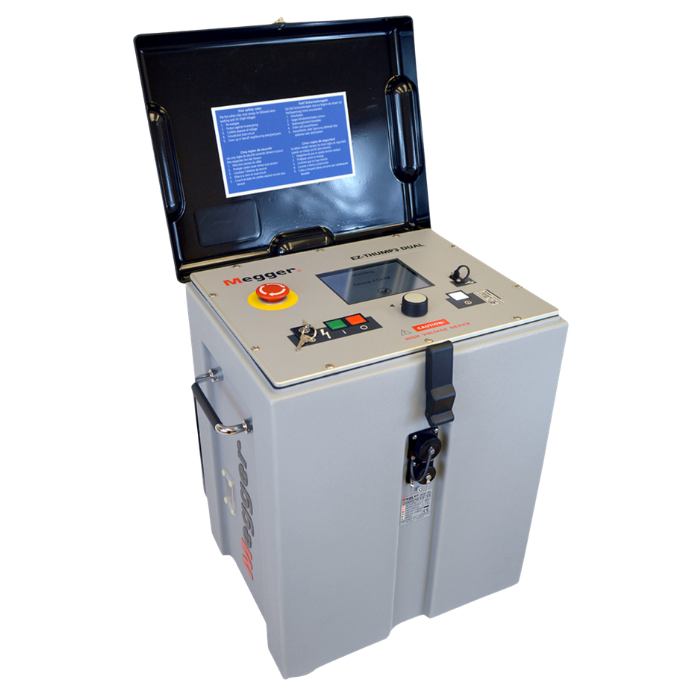

Megger EZ-Thump 12 kV, Model v3, Cable Fault Location System

Megger EZ-Thump 12 kV, Model v3, Cable Fault Location System

The Megger EZ-Thump 12kV, Model v3 is a portable cable fault location system designed to make fault finding on underground medium voltage power cables faster, simpler and more practical in the field. Built as an all-in-one solution, it is well suited to utilities, contractors and first-response teams who need a compact unit that be transported easily and deployed without a complicated setup. Megger also positions it as easy to use for less experienced operators, while still offering the capability needed for demanding fault location work.

For pre-locations work, the EZ-Thump 12 kV combines and integrated TDR for low resistance faults with Arc Reflection Method functionality for high resistance faults, helping users identify fault distance before moving on to final pinpointing. It also delivers a 500 J surge at 12 kV for acoustic fault pinpointing when used with a compatible receiver, and supports sheath testing and sheath fault location as part of a broader cable fault workflow.

A major strength of the EZ-Thump 12 kV is its portability and straightforward operation. Operation is handled via a single rotary control with results shown on a bright colour display, while automatic mode helps speed up routine testing and expert mode gives more control for challenging applications.

Key Features

• Designed for fault location on underground medium voltage distribution power cables
• Compact all-in-one system suited to first responders and field fault location work
• Lightweight design at less than 33 kg for easier transport and deployment
• Fits into an average-sized car for convenient site-to-site use
• Integrated TDR for pre-location of low resistance faults
• Arc Reflection Method support for pre-location of high resistance faults
• 500 J surge discharge at 12 kV for acoustic fault pinpointing
• Compatible with acoustic and electromagnetic receivers for precise fault pinpointing
• Supports sheath testing and sheath fault location
• Single rotary knob control for straightforward operation
• Bright colour display designed for readability in bright sunlight
• Automatic mode for quick setup and expert mode for advanced applications
• AC mains and internal rechargeable battery operation for flexible field use
• Field-replaceable battery for long-term serviceability
• Built-in safety features including F-OHM ground checking, emergency stop and key-switch interlock
