Megger Fault Sniffer 2

SKU
MEGGFAULTSNIFFER2
  • Discover underground cable faults yourself without additional equipment
  • Graphical display of gas concentration up to approximately 1000ppm
  • Two-sensor technology differentiates between combustion & natural gases
More Info
inc VAT £6,694.80 ex VAT £5,579.00
Made to Order


Product Details

Megger Fault Sniffer 2

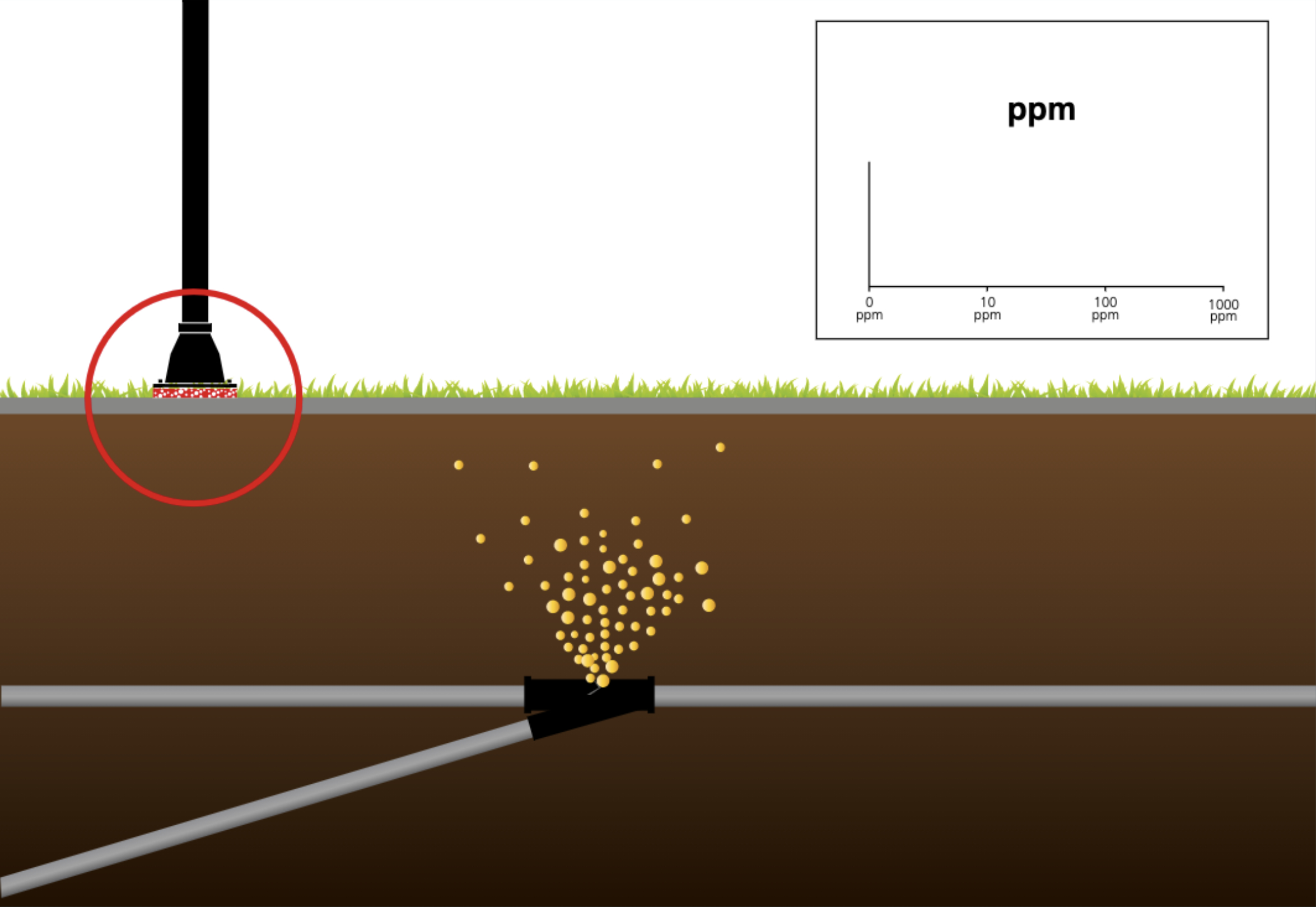

The Megger Fault Sniffer 2 allows the user to discover underground cable faults themselves, without the need for a service provider or cable test van. The majority of cable faults inevitably result in burns of the cable sheath, this intuitive instrument can detect the gases caused by these burns. The intelligent built-in two-sensor technology can even differentiate the combustion gases characteristic of cable faults, from normal gases and prevent misinterpretations. Crucially, with the Fault Sniffer 2 consumers/households can remain connected to the power grid during operation.

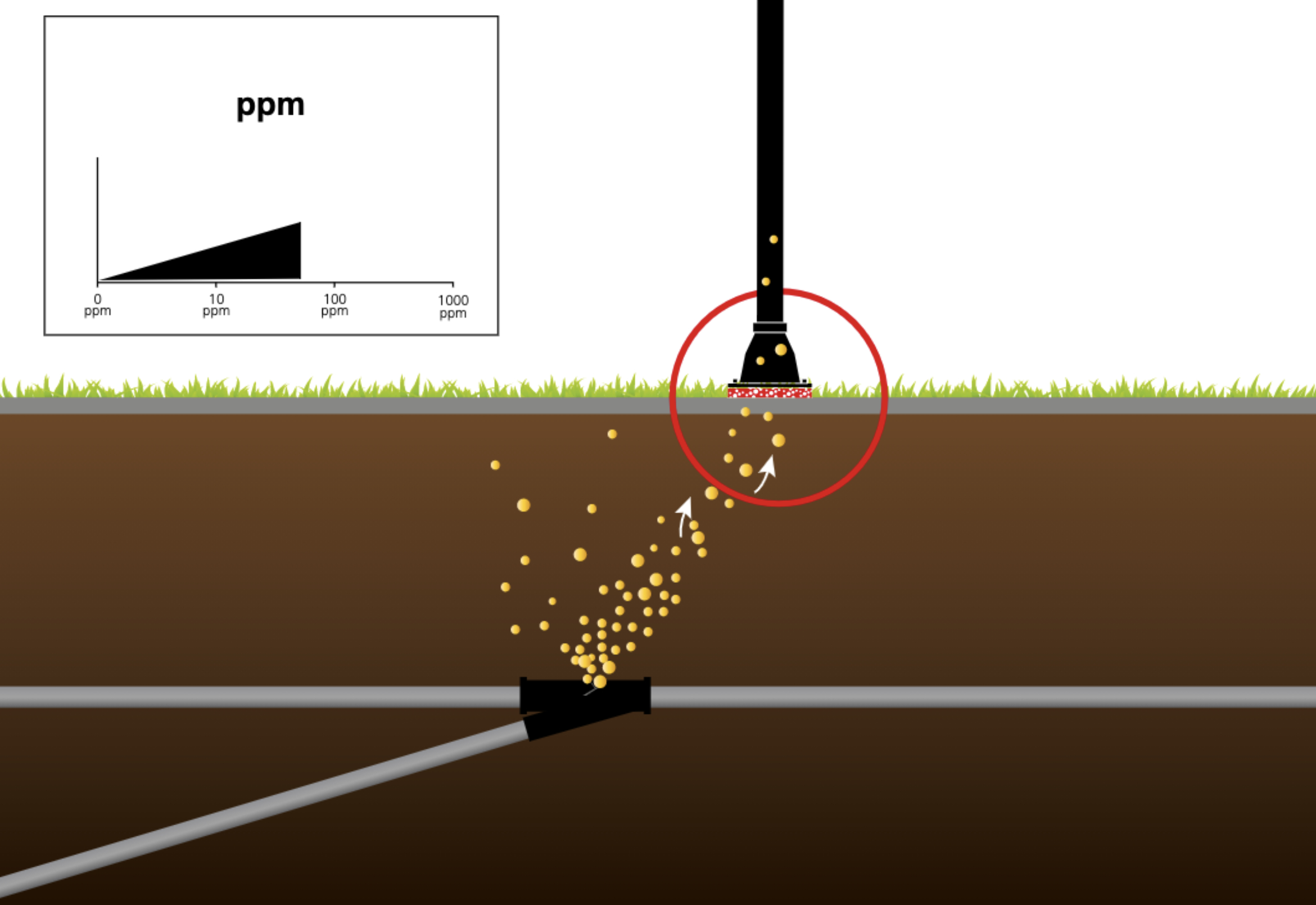

Gases are sucked in by the incorporated vacuum technology of the Megger Fault Sniffer 2 before being detected and evaluated in real time. The user is then presented with a graphical representation of the combustion gas concentration on the large digital screen. Using a semiconductor and electrochemical operating principle, results are displayed in a range of approximately 1000ppm. This user-friendly set includes a hydrophobic filter with double membrane & dust filter at the gas inlet and an extendable ergonomic rod adaptable to match the user's height.

Save time and money with the rechargeable Megger Fault Sniffer 2 which can operate continuously for ten hours on just one battery charge. This IP54 rated device features a backlit 240 x 160 pixel LCD display, bluetooth connectivity and the ability to store up to 2,000,000 measured values.

Key Features

  • For detecting underground cable faults
  • Negates the need for service provider or cable test van
  • Intelligent two-sensor system
  • Can differentiate between combustion gases & natural gases
  • Systems can remain connected to the mains grid during use
  • Built-in vacuum technology
  • Evaluates data in real time
  • Semiconductor and electrochemical operating principle
  • Results displayed in graph format
  • Results in a range of approximately 1000ppm
  • Hydrophobic filter with double membrane and dust filter included
  • Large 240 x 160 pixel LCD display
  • Bluetooth connectivity
  • Store up to 2,000,000 results
  • Ergonomic extendable rod
  • 10 hour lifespan with one charge
  • Rechargeable battery
  • Rated IP54

Megger part number: 1012974

What's In The Box?
  • Megger Fault Sniffer 2
  • Gas detector
  • Power supply unit (230 V)
  • Car charging cable (12 V)
  • Carrying strap
  • Case
  • Multi-probe set
  • EFI filter set
More Information
Specification
  • Display range: Up to approximately 1000 ppm
  • Operating principle: Semiconductor and electrochemical
  • Sensors: Dual sensor for the detection of gases that are characteristic of cable faults
  • Carrying technique: Attachment for Tenax waist belt
  • Data memory: > 2,000,000 measured values
  • Interface: Bluetooth
  • Filter: Hydrophobic filter with double membrane and dust filter at the gas inlet
  • Connections: 1 nipple Rectus Series 20
  • Degree of protection: IP54
  • Operating temperature: -10˚C to +50˚C
  • Operating time: > 10 hours
  • Pump: Integrated, flow rate approximately 40 I/h
  • Charging: Via charger with 230V AC or 12V DC via integrated charging socket
  • Power Supply: Li-Ion battery pack, nominal voltage: 3.6 volt, nominal capacity: 6700 mAh, charging voltage 12 V/1 A DC rechargeable
  • Display: LCD, 240 x 160 pixels, display with backlight for the logarithmic display of measured value and bar graph
  • Weight: Approximately 1150g
  • Dimensions: Approximately 192 x 100 x 87mm (without the gas inlet screw)
