Megger IMT100X Industrial Multi Tester with Bluetooth

Megger
SKU: MEGGIMT100X
  • Multi-function industrial testing covering insulation resistance, continuity, low resistance, voltage, phase rotation, temperature, capacitance and inductance
  • Bluetooth connectivity for CertSuite Asset to support live data streaming, secure transfer, asset management, reporting and certification workflows
  • Rugged and safe field design with IP54 protection, rechargeable batteries, live circuit detection and CAT III 600C safety rating
More Info
Typically ships in 3-5 working days

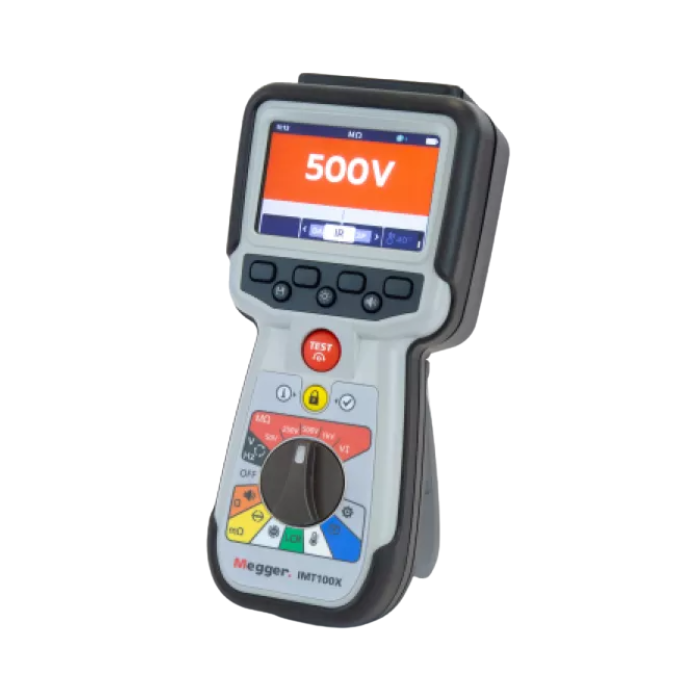

Megger IMT100X Industrial Multi Tester with Bluetooth

The Megger IMT100X Industrial Multi Tester with Bluetooth is a versatile handheld tester designed for industrial, photovoltaic, electrical vehicle and rotating machinery applications. Combining multiple key test functions in one instrument, it help users carry out safe and reliable testing across insulation resistance, low resistance, continuity, voltage, phase rotation, temperature, capacitance and inductance.

Designed for use in demanding industrial environments, the IMT100X supports critical testing during installation, commissioning, start-up and maintenance work. It is suitable for photovoltaic installations, electric vehicle systems, electrical installations and rotating machinery, making it a practical option for engineers and technicians who need one tester for a wide range of applications.

The IMT100X features installation resistance testing up to 200GΩ, with support for PI, DAR, timed testing and temperature compensation. It also includes four-wire Kelvin low resistance testing, continuity testing, diode testing, AC/DC voltage testing, three-phase supply rotation and motor direction of rotation checks.

As the Bluetooth version in the range, the Megger IMT100X supports Bluetooth Low Energy connectivity for use with CertSuite Asset. This allows live test results to be streamed to a mobile device or web browser, stored against specific jobs or assets, organised by site, string or asset, and used for reporting and certification. The instrument can also be used fully as a standalone tester with onboard storage for up to 256 test results and USB download.

Built for field use, the IMT100X has a full colour graphic display, guided lead setup diagrams, rechargeable batteries, IP54 environmental protection and a rugged ober-moulded case. Safety features include fast-detecting circuitry, live circuit detection, test inhibit functions and CAT III 600V protection.

Megger part number: 1017-031

Key Features

  • Handheld industrial multi tester with Bluetooth
  • Suitable for industrial, PV, EV, and rotating machinery applications
  • Insulation resistance testing up to 200GΩ
  • Supports PI, DAR, timed testing and temperature compensation
  • Variable insulation test voltage from 10V to 999V
  • Four-wire Kelvin low resistance testing from 1mΩ to 10Ω
  • Continuity testing from 0.01Ω to 1MΩ
  • AC and DC voltage testing up to 1000V
  • Three-phase supply rotation and motor direction of rotation testing
  • Capacitance, inductance, resistance and diode testing
  • Temperature measurement and insulation resistance compensation
  • Guard terminal to help reduce surface leakage current errors
  • Bluetooth Low Energy connectivity for CertSuite Asset integration
  • Live result streaming and secure wireless result transfer
  • Stores up to 256 test results with date and time stamping
  • USB download to mass storage device
  • Full colour graphic display with configurable backlight
  • Guided lead setup diagrams
  • Rechargeable batteries with mains charger kit
  • IP54 rated for protection against dust and moisture ingress
  • CAT III 600V safety rating
  • Rugged over-moulded housing

What's In The Box?

  • Megger IMT100X Industrial Multi Tester with Bluetooth
  • Hook strap assembly
  • Multipurpose industrial carry case
  • SP5 remote probe
  • Crocodile clips: red, black and blue
  • T-type temperature probe, CAT III 600V
  • IR lead set
  • 3 x grabber clips: red, black and blue
  • 3 x 4mm test leads, 2m length: red, black and blue
  • 3 x long reach test probes; red, black and blue
  • Kelvin clip lead set, CAT III 600V
  • Kelvin probe lead set, CAT III 600V
  • Replaceable Kelvin probe pins
  • PV test lead set adaptors
  • Test probe set, long reach
  • Certificate of test
  • Certificate of calibration
  • Mains charger kit
  • 6 x AA rechargeable NiMH batteries, fitted
  • Quick start guide
Specification
  • Insulation Resistance -
    - 50V - 10GΩ ±2% ±2 digits ±4.0% per GΩ
    - 100V - 20GΩ ±2% ±2 digits ±2.0% per GΩ
    - 250V - 50GΩ ±2% ±2 digits ±0.8% per GΩ
    - 500V - 100GΩ ±2% ±2 digits ±0.4% per GΩ
    - 1000V - 200GΩ ±2% ±2 digits ±0.2% per GΩ
  • Polarisation Index (PI) – 10 min / 1 minute ratio
  • Dielectric Absorption Ratio – User configurable 15s or 30s t1 start time with t2 fixed at 60s
  • Guard Terminal Performance - <5% error at 500kΩ parallel circuit resistance with 100MΩ load
  • Resolution - 0.1kΩ
  • Short Circuit/Charge Current – 2mA +0% -50% (IEC61557-2)
  • Terminal Voltage Accuracy - -0% +2% ±2V
  • Test Current – 1mA at min. pass value of insulation to a max. of 2mA
  • Operation Range - 0.10MΩ to 1.0GΩ (IEC61557-2)
  • Leakage Current Display - 0.1uA resolution 10% (±3 digits)
  • Voltage Display - ±3% ±2 digits ±0.5% of rated voltage
  • Note – Above specifications only apply when high quality silicone leads are being used – as supplied with the instrument

Continuity

  • Measurement - 0.01Ω to 1MΩ (0 to 1000kΩ analogue scale)
  • Accuracy - ±3% ±2 digits (0 to 99.9Ω ) ±5% ±2 digits (100Ω - 500kΩ)
  • Test Current - 200mA (–0mA +20mA) (0.01 Ω - 4 Ω)
  • Polarity – Single or Dual (factory default) polarity
  • Lead Resistance – Null up to 10Ω
  • Selectable Current Limit – 20mA and 200mA

Capacitance

  • Range – 0.1nF – 1mF
  • Accuracy - ±5.0% ±2 digits (1nF - 10μF)

Voltmeter

  • Range -
    -DC: 0-1000V
    - AC: 10mV-1000V
    - TRMS sinusoidal (15Hz-400Hz)
  • Accuracy -
    - DC: ± 2% ±2 digits (0 - 1000V)
    - AC: ± 2% ±2 digits (10 mV - 1000 V TRMS)
  • Frequency Range – 15-400Hz (50mV-1000V)
  • Frequency Resolution – 0.1Hz
  • Frequency Accuracy – ±0.5% ±1 digit
  • Diode Test - Diode test accuracy: ±2% ±2 digits 0.01V to 3.00V
  • Display Range – 0.00V to 3.00V

Temperature Measurement and Compensation

  • Thermocouple – Type T (Type K and Type J)
  • Thermocouple Range - -20°C to 200°C (4°F to 392°F)
  • Instrument Range - -20°C to 1000°C (4°F to 1832°F)
  • Instrument Resolution – 0.1°C (0.18°F)
  • Instrument Accuracy - ±1.0°C ±20 digits (1.8°F). (Basic accuracy stated assumes forward and reverse measurements.)

DLRO Four Wire Kelvin Low Resistance

  • Test Current – 200mA DC
  • Range - 1mΩ to 10Ω
  • Resolution – 0.01mΩ
  • Accuracy - ± 0.25% rdg. ± 10 digits, accuracy stated includes forward and reverse measurements

Inductance

  • Instrument Accuracy (Range / Accuracy / Test Frequency -
    - 1H / ±(0.7% +(Lx/10000) % +5 digits) / 1kHz
    - 200mH / ±(1.0% +(Lx/10000) % +5 digits) / 120Hz
    200mH / ±(0.7% +(Lx/10000) % +5 digits) / 1kHz
    - 20mH / ±(2.0% +(Lx/10000) % +5 digits) / 120Hz
    20mH / ±(1.2% +(Lx/10000) % +5 digits) / 1kHz
    - 2mH / ±(2.0% +(Lx/10000) % +5 digits) / 1kHz only

Results Storage

  • Storage Capacity – 256 test results (date/time stamped)
  • Data Download – USB Type A (USB Mass Storage Device)

Power

  • Battery -
    - 6 x IEC HR6 1.2V NiMH fitted
    - Optional: 6 x IEC LR6 1.5V Alkaline (AA), IEC FR6 1.5V Lithium (LiFeS2)
  • Battery Life -
    - 10 motors per (complete suite of tests at 100V into 100MΩ) IEC61557-2 - test cycle, 1200 insulation tests with duty cycle of 5s testing on 25s standby @ 500V into 0.5MΩ
    - IEC61557-4 test cycle, 1200 continuity tests with duty cycle of 5s testing on 25s standby on 1Ω resistance
  • Battery Charging – Mains battery charger kit
  • Safety Protection – IEC61010-1 CAT III 600V
  • EMC -
    - Industrial IEC61326
    - FCC ID: WAP3026
    - IC: 7922A-3026
  • Temperature Coefficient - <0.1% per °C up to 1GΩ

Environment

  • Operating Temperature Range - -10°C to 50°C (14°F to 122°F)
  • Storage Temperature Range - -25°C to 50°C (-13°F to 122°F)
  • Humidity – 90% RH at 40°C (104°F) max.
  • Calibration Temperature – 20°C (68°F)
  • Maximum Altitude – 3000m (9843ft)
  • IP Rating – IP54

Physical

  • Display – Full LCD colour screen with user configurable backlight
  • Languages – English, French, German and Spanish
  • Dimensions – 228 x 105 x 75mm (8.98 x 4.1 x 2.95in)
  • Weight – 0.93kg (2.02lbs)
  • Fuse – x2 500mA (FF) 1000V 32 x 6mm ceramic fuse, high break capacity HBC, 30kA minimum. Glass fuses must not be installed.
