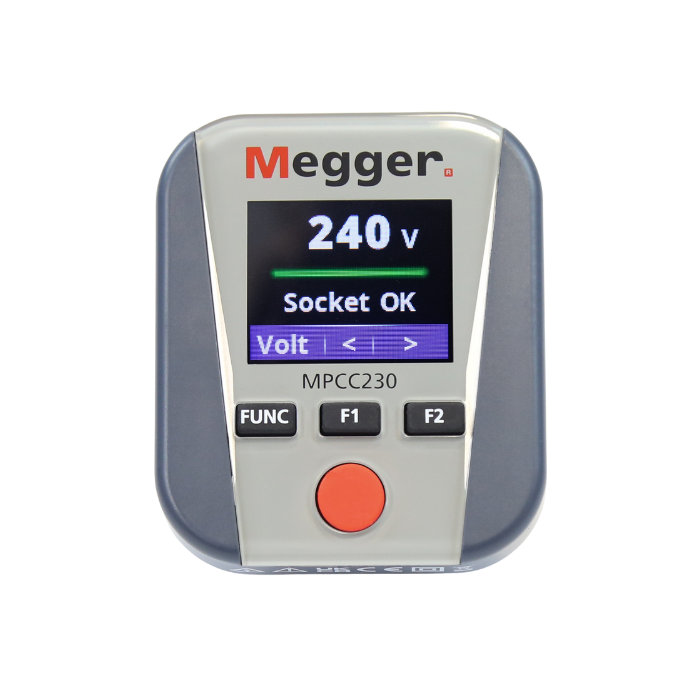

Megger MPCC230 Pro Socket Tester with RCD and Loop Test

Megger
SKU: MEGGMPCC230
  • Offers a fast and accurate solution for electricians who want to check the voltage and polarity of a socket
  • The MPCC230 has a bright, 1.7" TFT colour display which allows for it be used in a range of environments
  • Using SuperCap technology, the user can store up to 64 loop and RCD tests thanks to use with the free MPCC app
More Info
In Stock - Available Next Day

Megger MPCC230 Pro Socket Tester with RCD and Loop Test

The Megger MPCC230 Pro Socket Tester is an advanced, all-in-one socket tester and circuit checker, which offers rapid solutions for electricians who want to check the voltage and polarity of a socket. With a bright, 1.7" TFT colour display, and SuperCap technology which stores a series of easily-accessible results using the MPCC App, this socket tester offers industry leading testing. In addition, the condition of the mains voltage supply can be measured, along with frequency, and an indication of the total harmonic distortion displayed.

The MPCC230 is also able to indicate the condition of the earth loop and RCD protective device (if fitted), and offers of testing possibilities to enhance the user experience. It will not only provide the TRMS supply voltage, but also the total harmonic distortion measured and allow for the user to identify which harmonics are present. With no-trip loop impedance testing with low and extra-low test current modes and touch voltage indication, and a plethora of other testing capabilites, the MPCC230 is the ideal instrument for electricians to test the voltage and polarity of a socket.

Megger part number: 1015-876

Key Features

  • Offers socket polarity
  • TRMS Voltage measurement
  • AUTO RCD test (Type A, AC and F)
  • RCD contact voltage
  • No-trip earth loop impedance test with low and extra-low test current modes and touch voltage indication
  • Voltage harmonics indication, up to the 49th
  • Prospective earth fault current display
  • Voltage harmonics up to the 49th
  • THD% (Total Harmonics Distortion)
  • Results storage for up to 64 loop and RCD tests
  • Dedicated results app - Megger Pro Circuit Checker Adaptor App
Specification

RCD Test

  • Test voltage L-PE 190 to 250V - Frequency 50Hz ±5%
  • RCD Type - AC, A, F, Time: IΔn - 30mA: Resolution - <0.1 IΔn, 0.1ms: Accuracy IΔn: ± (0.0% + 5% IΔn), ±2 ms + 2 dgt)

Earth Loop Test

  • No-trip Earth Loop Impedance Test Voltage - 190 to 250V (line-PE)
  • Standard Mode Test Current - 15mA
  • Range (Ω) of 0.01 to 9.99: Resolution (Ω) - 0.01: Accuracy - ± (5.0% + 8 dgt)
  • Range (Ω) of 10 to 99.9: Resolution (Ω) - 0.1: Accuracy - ± (2.0% + 8 dgt)
  • Range (Ω) of 100 to 999: Resolution (Ω) - 1: Accuracy - ± (2.0% + 8 dgt)
  • Low Mode Test Current 6mA - ± (7.0% + 10 dgt)

AC TRMS Voltage (Phase - Neutral)

  • Allow Crest Factor - 1.5
  • Frequency - 42 to 69.0Hz
  • Range (V) of 120 to 250: Resolution (V) - 1: Accuracy - ± (1.0% + 3 dgt)

Frequency

  • Range (Hz) of 42 to 69: Resolution (Hz) - 0.1: Accuracy - ± (2.0% + 1 dgt)

Voltage Harmonics

  • 1st to 49th Harmonic (voltages are zeroed in value <0.8V)
  • Range (V) of 0.8 to 265: Resolution (V) - 0.1: Accuracy - ± (3.0% + 5 dgt)

Socket Polarity Test

  • Indication of: No Earth - Phase Neutral Reverse - Phase Earth Reverse - Voltage N-Pe > 50V

Voltage Input

  • Category Rating - CAT II 250V to ground
  • Maximum Input - 250V AC

Safety Standards

  • Safety of Measuring Instruments - IEC/EN61010-1, IEC/EN61010-2-2030
  • EMC - IEC/EN61326-1

Display and Memory

  • Features - 1.7" TDT colour graphic LCD
  • Memory Storage - 64 locations

Working Environment Conditions

  • Reference Temperature - 5ºC to 23ºC
  • Working Temperature - 5ºC to 40ºC
  • Relative Humidity - <80% RH
  • Storage Temperature - -10ºC to 60ºC
  • Storage Humidity - <80% RH

Mechanical Features

  • Dimensions - 81.5 x 70 x 83mm
  • Weight - 110g
