Megger PAM420 Multifunction Phase Angle Meter

Megger
SKU: MEGGPAM420
Trustpilot

Never Beaten On Price



We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.



Call 0113 248 9966 or contact us online

Made to order - Contact for lead time
Need Some Help From Our Experts? chevron-right chevron-down

We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.



To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.

Members earn 4885 reward points chevron-right chevron-down

Use reward points to get money off future purchases.



Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.

FREE Delivery & 60 Day Returns chevron-right chevron-down

We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.



Find out more on our delivery information page.

Key Features
  • Measures phase angle between two power signals with resolution of 0.1˚
  • Measures AC/DC voltage (500V), AC current (25A), and frequency (15 to 75Hz)
  • Timer function for testing contact and voltage trigger times

Related Categories

Circuit Breaker and Relay Test Sets
Description

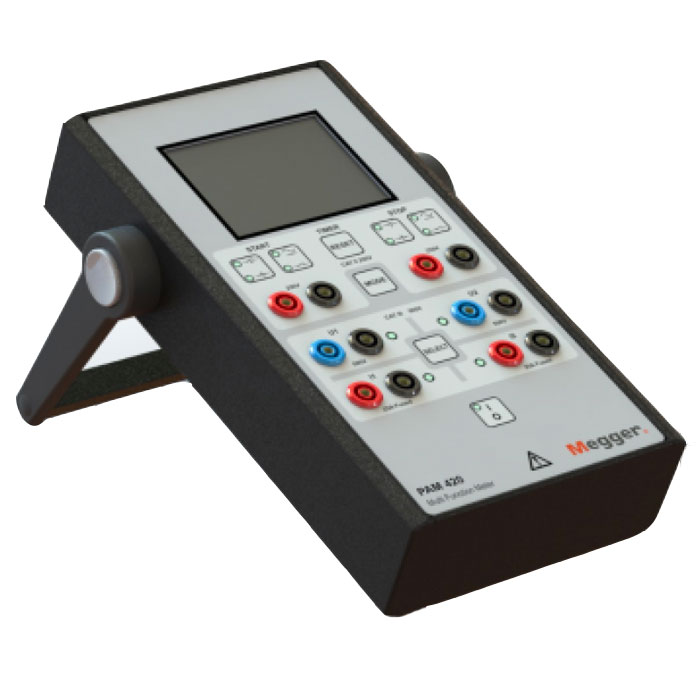

Megger PAM420 Multi Function Phase Angle Meter

The Megger PAM420 Multi Function Phase Angle Meter is designed for use on electrical power systems and can measure parameters including phase angle, voltage (500V AC/DC), current (25A AC), frequency (15 to 75Hz) and trigger time. Phase angle measurement can measure the angle between two power signals whether they are both current, both voltage or one of each. The maximum current input is 25A and the maximum voltage is 500V and this wide range can be further expanded by using additional current transformers.

Phase angle readings are highly precise with a resolution of just 0.1˚ and these impressive capabilities make the meter suitable for checking polyphase metering installations, testing protective relays, making comparative tests in electrical substations and verifying the phase angle deviation on power transformers. The timing function on the Megger PAM420 can be used for testing contact or voltage trips.

Results are shown on the Megger PAM420’s backlit 5-line display which is capable of showing phase angle, both input values and both input frequencies simultaneously in real time. Despite being compact and lightweight, the meter is still ruggedly built in order to withstand the rigours of regular use in substations and other industrial environments. Rechargeable batteries further enhance portability and the instrument is provided with test leads, a charger and a transport case.

Megger part number: BP-39093

Key Features

  • Phase angle measurement: 0 to 159.9˚
  • Phase angle resolution: 0.1˚
  • Current-current, current-voltage, voltage-voltage angle
  • Voltage measurement: 0 to 500V AC/DC
  • Current measurement: 0 to 25A AC
  • Frequency measurement: 15Hz to 75Hz
  • 5-line backlit LCD display
  • Timer function for voltage/contact triggers
  • Rechargeable batterie

What's In The Box?

  • Megger PAM420 Phase Angle Meter
  • Test leads
  • Battery charger
  • Transport case
Specification
Show Trustpilot Reviews
Specification
No

Environment

  • Application field: The instrument is intended for use in high-voltage substations and industrial environments.
  • Operating temperature: -10°C to +50°C (14°F to +122°F)
  • Storage & transport temperature: -40°C to +70°C (-40°F to +158°F)
  • Humidity: 5% – 95% RH, non-condensing
  • Altitude: < 2000 m above sea level

CE-marking

  • EMC: 2004/108/EC
  • LVD: 2006/95/EC

General

  • Measurement category: CAT III 500 V / CAT IV 300 V
  • Enclosure class: IP21
  • Power supply: Rechargeable batteries
  • Mains adapter: 100–240 V AC, 50/60 Hz
  • Adapter output voltage: 9 V DC
  • Output connector: Ø 5.08 mm with Ø 2.54 centre pin (+)
  • Power consumption: 10 W (max)
  • Instrument dimensions: 260 x 140 x 55 mm (except handle) (10.2” x 5.5” x 2.2”)
  • Transport case dimensions: 390 x 300 x 140 mm (15.4” x 11.8” x 5.5”)
  • Weight: 1.2 kg (2.6 lbs), 3.5 kg (7.7 lbs) with accessories and transport case
  • Test lead set, with 4 mm stackable safety plugs: Black 2 x 2 m (6.6 ft), 2.5 mm2 / Red 2 x 2 m (6.6 ft), 2.5 mm2
  • Display: Alpha numerical LC display with backlight

Current – Inputs I1 and I2

  • Measurement category: CAT III 500 V / CAT IV 300 V
  • Input range: 0 – 25 A AC
  • Inaccuracy: 0.5% of reading
  • Resolution: 0.1 A
  • Protection: Built-in 25 A fuse

Voltage – Inputs U1 and U2

  • Measurement category: CAT III 500 V / CAT IV 300 V
  • Input range: 0 – 500 V AC true RMS
  • Inaccuracy: 0.15 % of reading + 0.03% of range (± 0.15 V)
  • Resolution: 0.1 V

Phase angle

  • Range: 0 – 359.9°(2–500 V and 0.15–25 A)
  • Type of phase angle measurement: Current-current, voltage-voltage and current-voltage
  • Waveform: Sinusoidal
  • Resolution: 0.1°
  • Inaccuracy: ±0.5° at >10% of voltage/current range / ±1° at 2–10% of voltage/current range / ±2° at 1–2% of voltage/current range

Frequency

  • Note: Frequency component in voltage component only
  • Range: 15 – 75 Hz
  • Inaccuracy: 0.1%
  • Resolution: 0.01 Hz

Timer

  • Measurement category: CAT II 250 V
  • Range: 0-999.999 s
  • Resolution: 1 ms
  • Inaccuracy: ±0.02% + 2 digits of displayed value
  • Max input voltage: 250 V AC/DC
  • Input debouncing filter: 1 ms

Voltage mode (Parameter: Min, Max, Unit)

  • Trig AC: 9, 250, V AC
  • Trig DC: 11, 250, V DC

Contact mode (Parameter: Min, Max, Unit)

  • Closed contact detection: 0, 1, kΩ
  • Open contact detection: 4, -, kΩ
Downloads
Label Type Size Download
pdf Megger PAM420 Datasheet pdf 160.6 KB Download
