Megger SMRT 1B Single Phase Relay Test System

Megger
SKU: MEGGSMRT1B
  • High-power single-phase output up to 32 A
  • Standalone 10.1” touchscreen control with PC automation
  • Convertible voltage/current channel and flexible waveforms
More Info
Price Available Upon Request
Made to order

Megger SMRT 1B Single Phase Relay Test System

The Megger SMRT 1B Single Phase Relay Test System is a compact yet powerful single phase relay test system designed for protection engineers who need reliable, high-performance testing in the field or workshop. It combines high compliance voltage with strong current output, allowing It to test a wide variety of electromechanical, solid-state and microprocessor-based protection relays. With a built-in 10.1” colour touch screen, engineers can carry out manual, steady-state and dynamic testing directly from the unit without needing a PC.

The SMRT 1B works seamlessly with Megger’s Relay Test Management Software (RTMS) when automation or advanced analysis is required. RTMS allows users to streamline test plans, apply automated routines and generate structured reports, and it comes without dongle or licensing restrictions. This makes the system flexible for team environments, as software can be installed across multiple devices without additional cost.

Built for portability and versatility, the unit can operate from standard AC mains or optional battery packs for work in remote areas. Its voltage channel can also be switched to function as a second current source, supporting applications such as single-phase differential and harmonic restraint relay testing. With robust outputs, broad waveform capability and a durable construction, the SMRT 1B offers a dependable and future-proof choice for protection relay testing.

Key Features

  • Continuous current outputs up to 32 A
  • Short-duration current bursts up to 60 A
  • Voltage output up to 300 V at 150 VA
  • Voltage channel convertible to a second current channel
  • Wide waveform options including harmonics and transients
  • On-board 10.1” colour touch-screen control
  • PC automation and reporting with RTMS software
  • AC mains or optional battery power

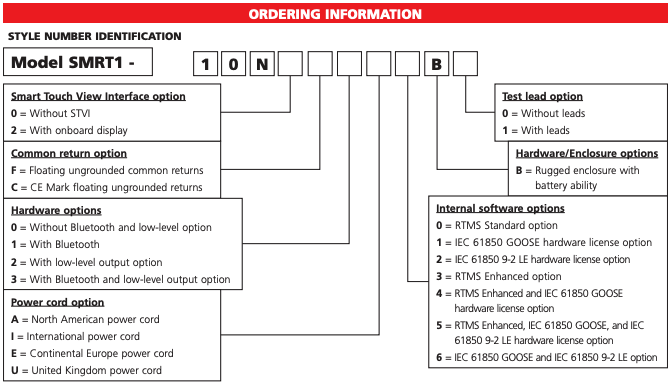

The graphic below shows the ordering information for the Megger SMRT 1B. Get in touch with us today to discuss the options available to you, and we will be happy to assist you.

Specification
  • Input Power – 100-240 V AC, 50/60 Hz, 700 VA
  • Output Current (continuous) – 32 A at 200 VA
  • Output Current (short-duration) – 60 A at 319 VA (for up to ~ 1.5 seconds / 90 cycles)
  • Voltage Output – 0-30 / 150 / 300V at 150 VA
  • Convertible Voltage Channel (as 2nd Current Source) – 5 A continuous, 15 A for short duration
  • Output Frequency Range – DC to 1 kHz (transient playback up to 10 kHz)
  • Phase Angle Range – 0.00-359.99° (or ±180°) with ±0.02° typical / ±0.25° max accuracy @ 50/60 Hz
  • Display – 10.1” colour touch-screen (resolution 1920x1200)
  • Dimensions – 457.2 W x 241.3 H x 342.9 D mm
  • Weight – 9.52 kg
  • Operating Environment –
    0 to 50°C
    Storage - -25 to 70°C
    Humidity – 5-90 % RH non-condensing
For further specifications, please view the attached datasheet.
