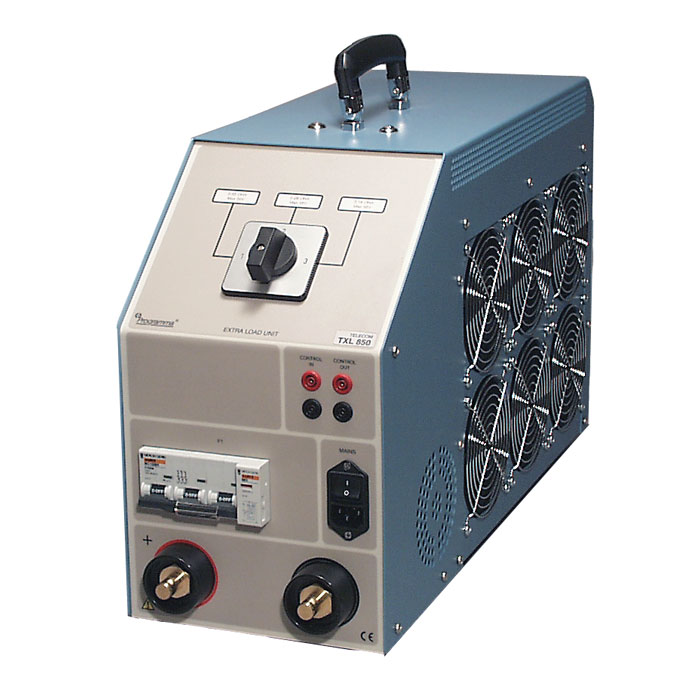

Megger TXL850 Battery Load Unit

Megger
main product photo
SKU
MEGGTORKELTXL850
  • Provides higher load currents when used in conjunction with TORKEL battery load units
  • Automatically shuts down when attached Torkel is stopped
  • Ideal for use when testing telecommunication and radio equipment
More Info
inc VAT £6,240.00 ex VAT £5,200.00
Made to order - contact for lead time


Product Details

Megger TXL 850 Battery Load Unit

Designed for use with TORKEL battery load units, the Megger TXL850 Battery Load Unit offers additional load currents for testing, perfect for use in constant current or constant power tests on a range of equipment, such as telecommunication and radio equipment.

When used with a Torkel unit, the TXL range allows you to discharge batteries with currents of up to several kA and TXL extra loads are shut down automatically when the Torkel is stopped. Connecting directly to the battery, the Megger Torkel measures the total current using a clamp-on ammeter.

Please note: These resistive extra loads do not perform any regulating functions themselves.

More Information
Specification

General

  • Mains voltage: 100 – 240 V AC, 50 / 60 Hz
  • Power consumption: 75 W (max)
  • Protection: Thermal cut-outs, automatic overload protection
  • Dimensions (Instrument): 210 x 353 x 600 mm
  • Dimensions (Transport case): 265 x 460 x 750 mm
  • Weight: 13 kg (21.4 kg with transport case)
  • Megger Part Number: BS-59095

Load Section

TXL830 TXL850 TXL870
Max. voltage DC 28 V 56 V 140 V / 280 V
Max. current 300 A 300 A 112 A at 140 V, 56 A at 280 V
Max. power 8.3 kW 16.4 kW 15.8 kW
Internal resistance, 3-position selector
Position 1 0.275 ohms 0.55 ohms 4.95 ohms
Current 100A at 27.6 V (12 x 2.3 V) at 55.2 V (24 x 2.3 V) -
78.5 A at 21.6 V (12 x 1.8 V) at 43.2 V (24 x 1.8 V) -
50.1 A - - at 248.4 V (108 x 2.3 V)
39.2 A - - at 194.4 V (108 x 1.8 V)
Position 2 0.138 ohms 0.275 ohms 2.48 ohms
Current 200 A at 27.6 V at 55.2 V (24 x 2.3 V) -
156 A at 21.6 V 43.2 V (24 x 1.8 V) -
Position 3 0.092 ohms 0.184 ohms 1.24 ohms
Current 300 A at 27.6 V at 55.2 V (24 x 2.3 V) -
235 A at 21.6 V 43.2 V (24 x 1.8 V) -
100 A - - at 124.2 V (54 x 2.3 V)
78.4 A - - at 97.2 V (54 x 1.8 V)
Icon Label Type Size Download
pdf Megger TXL Battery Load Unit Datasheet pdf 148.6 KB Download
