Megger TXL870 Battery Load Unit

SKU
MEGGTORKELTXL870
  • Provides higher load currents for testing with TORKEL battery load units
  • For use in constant current or constant power tests
  • Ideal for equipment in high-voltage substations and industrial environments
More Info
inc VAT £6,240.00 ex VAT £5,200.00
Made to Order


Product Details

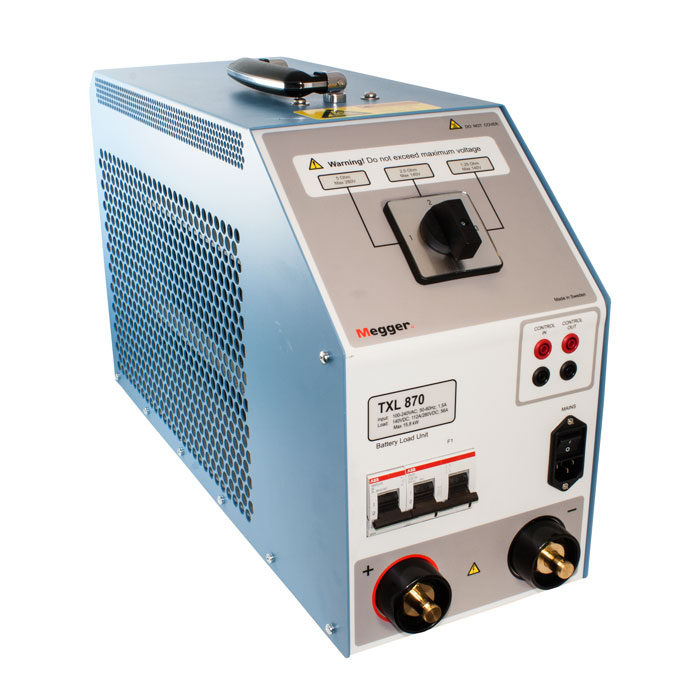

Megger TXL 870 Utility Battery Extra Load Unit

Providing higher load currents for testing with TORKEL battery load units, the Megger TXL 870 Utility Battery Extra Load Unit is ideal for use in constant current or constant power tests, such as those on switchgear and other equipment in high-voltage substations and industrial environments.

Connecting directly to the battery, the Megger Torkel measures the total current using a clamp-on ammeter and when used in conjunction with a TXL unit allows you to discharge batteries with currents of up to several kA.

With useful features such as automatic shut down when the Torkel is stopped, the Megger TXL 870 Utility Battery Extra Load Unit is the perfect accompaniment to the Torkel 840 Utility Battery Load Tester.

Please note: The TXL range do not perform any regulating functions themselves.

More Information
Specification

General

  • Mains voltage: 100 – 240 V AC, 50 / 60 Hz
  • Power consumption: 75 W (max)
  • Protection: Thermal cut-outs, automatic overload protection
  • Dimensions (Instrument): 210 x 353 x 600 mm
  • Weight: 13 kg
  • Megger Part Number: BS-59007 (TXL870)

Load Section

 TXL830TXL850TXL870
Max. voltage DC 28 V 56 V 140 V / 280 V
Max. current 300 A 300 A 112 A at 140 V, 56 A at 280 V
Max. power 8.3 kW 16.4 kW 15.8 kW
Internal resistance, 3-position selector
Position 10.275 ohms0.55 ohms4.95 ohms
Current 100A at 27.6 V (12 x 2.3 V) at 55.2 V (24 x 2.3 V) -
78.5 A at 21.6 V (12 x 1.8 V) at 43.2 V (24 x 1.8 V) -
50.1 A - - at 248.4 V (108 x 2.3 V)
39.2 A - - at 194.4 V (108 x 1.8 V)
Position 20.138 ohms0.275 ohms2.48 ohms
Current 200 A at 27.6 V at 55.2 V (24 x 2.3 V) -
156 A at 21.6 V 43.2 V (24 x 1.8 V) -
Position 30.092 ohms0.184 ohms1.24 ohms
Current 300 A at 27.6 V at 55.2 V (24 x 2.3 V) -
235 A at 21.6 V 43.2 V (24 x 1.8 V) -
100 A - - at 124.2 V (54 x 2.3 V)
78.4 A - - at 97.2 V (54 x 1.8 V)
Icon Filename Type Size Download
pdf Megger TXL Battery Load Unit Datasheet pdf 148.6 KB Download
