Metrel A1732 DC Rapid Charge EVSE Adaptor

SKU: METRA1732
  • Compatible with CCS2, CHAdeMO, and Type 2 AC EV charge connectors
  • Supports both DC (Mode 4) and AC (Mode 3) configurations
  • Seamlessly integrates with the MI3155 EurotestXD via Bluetooth
More Info
Typically ships in 3-5 working days

Metrel A1732 DC Rapid Charge EVSE Adaptor

The Metrel A1732 DC Rapid Charge EVSE Adaptor is a specialised testing tool designed for the electrical safety verification of electric vehicle (EV) charging stations. Supporting both DC (Mode 4) and AC (Mode 3) configurations, the A1732 is ideal for installers, commissioning engineers, and maintenance professionals working within the EV charging industry.

The A1732 is compatible with a wide range of connector types, including CCS2 (Combo), CHAdeMO, and Type 2 AC plugs, while supporting key EV communication standards such as ISO 15118, DIN SPEC 70121, CHAdeMO v0.9.1+, and IEC 61851-1. It is also capable of simulating a live EV battery with a nominal voltage of 300V and 5A, enabling accurate, real-world testing of EV chargers without requiring an electric vehicle.

Designed to be used on-site, the A 1732 includes banana test points for AC, DC, and PE connections, along with dual PE test terminals to support accurate 4-wire low-resistance (Rlow) measurements. Housed in a durable, shockproof case, it carries a CAT III / 300V rating and operates in environments ranging from -10°C to +40°C.

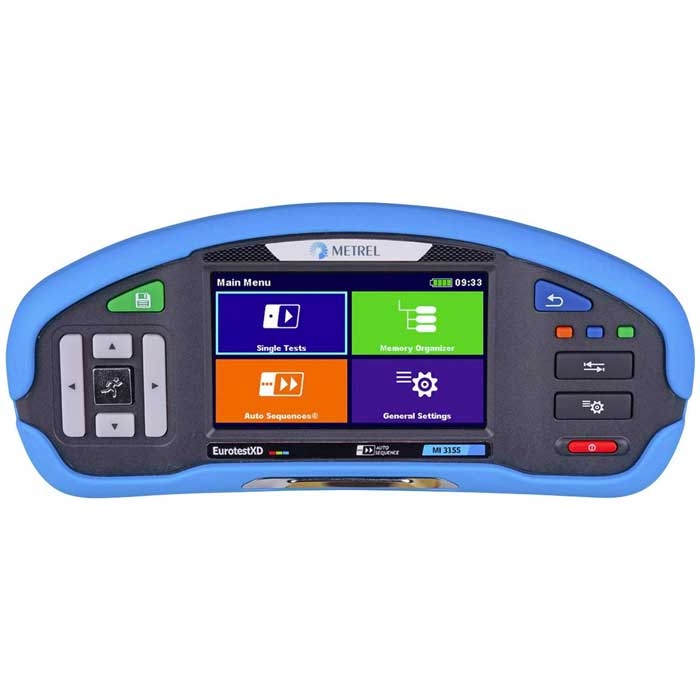

Integrates with the MI3155 EurotestXD

The A1732 works with the Metrel MI3155 EurotestXD Multifunction Tester via Bluetooth connection, offering a cable-free operation and full test control through the MI3155 interface. This pairing allows a wide range of measurements where the user can perform 4-wire low resistance measurements using a 200mA test current, insulation resistance tests with voltages up to 2500V DC, and real-time display of charging protocol data, voltage, and current readings.

Additional features include DC impedance and discharge time measurements, where fault resistances between 20kΩ and 640kΩ can be applied in 5kΩ steps for thorough evaluation of insulation monitoring devices. Customisable AUTOSEQUENCEs can also be programmed on the MI3155 for streamlined, repeatable testing. Post-test analysis is supported through Metrel’s ES Manager PC software, which allows users to prepare test structures, download and view results, and generate professional test reports in various formats.

Part number: A1732

Key Features

  • Support for CCS2, CHAdeMO and AC EVSE
  • Functional test protocol for measuring voltages and current on the terminals
  • Fault simulation on CCS2 and Type 2 for CP open, PE open and CP short
  • Fault simulation on CHAdeMO for CP3 open, PE open and CAN stop
  • Banana test points for DC, AC and PE terminals
  • Double PE test terminals (PE(C) and PE(P)) for a true 4-wire Rlow measurement;
  • Bluetooth communication with MI3155 EurotestXD
  • Overvoltage category CAT III / 300V
  • CCS ISO 15118-1 or DIN 70121 communication support
  • CHAdeMO version 0.9.1 and higher communication support
  • AC EN 61851-1 communication support
  • Simulated EV Battery of 300V and 5A

Used together with MI3155

  • Communication with A 1732 DC EVSE Adapter via Bluetooth
  • Predefined test protocol for DC EVSE in the memory structure
  • All measurement can be started and viewed on MI 3155 EurotestXD
  • Performing accurate 4-wire measurements with 200 mA measuring current
  • Insulation resistance with DC voltage up to 2500 V
  • Functional test with a live view of charge protocol and voltages and currents on the test terminals
  • Remote faults triggering and reaction time measuring
  • DC impedance measurement
  • Discharge time measurement
  • Asymmetric IMD test with a setupable fault resistance between 20 kΩ and 640 kΩ at 5 kΩ intervals
  • Programmable AUTO SEQUENCEs* for customizing the test protocol
  • PC SW Metrel ES Manager for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing the reports

What's In The Box?

  • A1732 DC EVSE Adaptor
  • A1781 Test cable, GRY/GRN/BRN, 1.5m, 0.75mm2, CAT IV
  • A1493 Power cable, 2m, 3x1.5mm2
  • A1727 USB cable TypeA/B
Specification

General specifications

  • Supply voltage, frequency: 205 to 254V AC, 50Hz / 60Hz
  • Max. power consumption: 2000VA
  • Mains supply overvoltage category: CAT II / 300V
  • Altitude: ≤ 2000m
  • Measuring category: CAT III / 300V
  • Power supply: Class I
  • Pollution degree: 2
  • Degree of protection: IP40
  • Case: Shock proof plastic / portable
  • USB 2.0: Standard USB Type B
  • Bluetooth: v4.2 BR/EDR and BLE specification
  • Emission: Class B (Group 1)
  • Immunity: Industrial environment
  • Reference temperature range: 15°C to 35°C
  • Reference humidity range: 35% to 65 % RH
  • Operation: Outdoor use
  • Working temperature range: -10 °C to +40 °C
  • Maximum relative humidity: 85% RH (0°C to 40°C), non-condensing
  • Temperature range: -20°C to +60°C
  • Maximum relative humidity: 90% RH (-10°C to +40°C); 80% RH (40°C to 60°C
  • Dimensions (w×h×d): 50cm x 25cm x 41cm
  • Weight: 16.2kg

Communication standards

  • CHAdeMO: Versions 0.9.1 and higher
  • CCS (DC): ISO 15118-1or DIN SPEC 70121

ISO by default, DIN otherwise

  • CCS (AC): EN 61851-1 low level

Simulated EV battery

  • Voltage: 280 V to 310 V
  • Load (charging) current: Cca 4.9A at 300V

Input resistance

  • DC+/DC-: 24 MΩ
  • DC+/PE, DC-/PE: > 200 MΩ
