Metrel BetaPAT Plus PAT Kit B

Metrel
SKU: METRBETAPATPLUSKITB
Great PAT testing kit with barcode scanner, PRO PLUS software and labels. This can also test portable RCD'S and can download via USB or RS232.
More Info
£1,458.00 £1,215.00
Discontinued

Metrel BetaPAT Plus Testing KIT B

This product is discontinued, it has been replaced by the Metrel OmegaPAT XA.

The Metrel BetaPAT Plus Testing kit incorporates the Metrel BetaPAT Plus MI3304 tester with test data management software to provide the user with the ability to perform comprehensive and professional PAT testing on a wide range of electrical appliances.

Beta PAT MI3304 Key Features:

  • Rugged designed case stores all leads
  • Stores up to 6800 test results, download via USB or RS232
  • QWERTY keyboard for fast input of appliance details
  • Large backlit display with graphic and test help screens
  • Automatic or user defined pass / fail limits and test parameters
  • 230V and 110V test Sockets built in
  • Stores fail reasons for downloading to a PC
  • 230V IEC lead (cord) tester
  • Test facility for portable RCD's
  • Barcode Scanner and barcoded Appliance ID labels included
  • Accurate earth bond and leakage measurement even when multiple earth paths exist

The new Metrel BetaPAT Plus MI3304 PAT testing kit 2 has the ability to test portable RCD's and can download and upload PAT testing results via its built in USB or RS232 connections. The MI 3304 unit has a QWERTY keyboard for rapid entry of appliance numbers, sites, locations, addresses, notes etc. The appliance test results can be stored on this PAT testing equipment and then downloaded later onto Metrel's PATLink Pro Plus Software that comes supplied with the test kit 2. The Metrel BetaPAT Plus PAT Tester has over 100 pre-programmed Auto Tests stored on the tester, making PAT testing much easier and quicker. You can also programme and customise and store your own Auto tests using the Metrel Beta PAT Plus MI3304. This dual voltage PAT test meter has the ability to test 230V, 110V (including centre tapped) and IT appliances, optional adaptors allow it to test 415V, 16A, 32A.

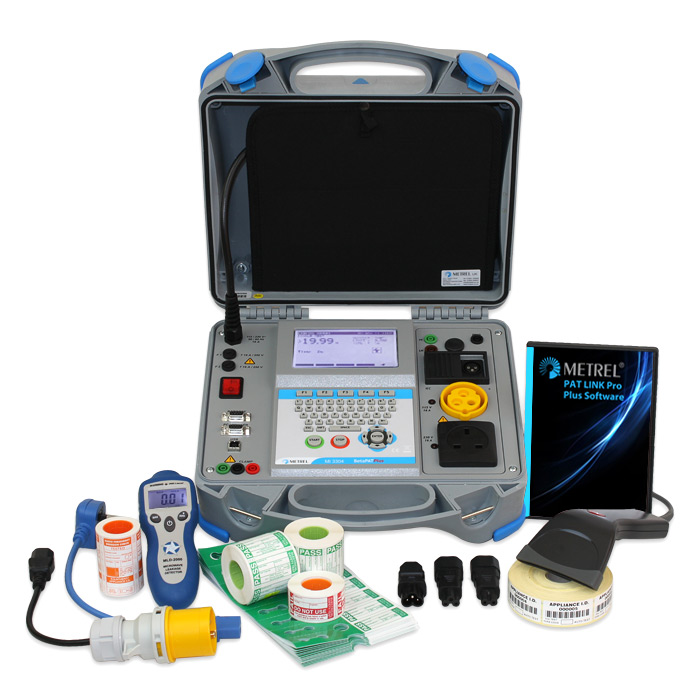

Metrel BetaPAT Plus Testing KIT B Includes:

  • Metrel MI3304 BetaPAT Plus Tester
  • Metrel PATLink Pro Plus Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 Tuff Tag Pass Cable Labels
  • Earth Bond Lead
  • Portable RCD Test Probe
  • RS232 & USB Download Leads
  • Calibration Certificate

What's In The Box?

  • Metrel MI3304 BetaPAT Plus Tester
  • Metrel PATLink Pro Plus Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 230V Extension Lead Adaptor
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 Tuff Tag Pass Cable Labels
  • Earth Bond Lead
  • Portable RCD Test Probe
  • RS232 & USB Download Leads
  • Calibration Certificate
Specification

Earth Bond Continuity

  • Currents: 100mA DC, 4A, 10A or 25A AC
  • Measuring Range: 0.00-19.9 ohms

Insulation Test

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.000 - 199.9 Mohms

Substitute Leakage

  • Voltage: 40V
  • Measuring range: 0.00- 1.99 mA

Touch Leakage

  • Measuring range: 0.00- 19.99 mA

Differential Leakage

  • Measuring range: 0.00- 19.99 mA

Load Test

  • Measuring range: 0 - 4 kVA

Polarity

  • Output Voltage: 40V
  • Faults: open, short, crossed, multiple fault

Portable RCD

  • Trip-out time readout: 0 ms - 1999 ms (½xI∆N) ±3 ms
  • Test currents: (I∆N)10 mA, 15 mA, 30 mA 0 ms - 300 ms (I∆N) ±3 ms
  • Test current multipliers ½,1, 2 and 5xI∆N 0 ms - 150 ms (2xI∆N) ±3 ms
  • Test modes: single, autotest 0 ms - 40 ms (5xI∆N) ±3 ms

Trip out times

  • ½xI∆N: t∆ > 300ms
  • 1xI∆N: t∆ < 300ms
  • 5xI∆N: t∆ <40ms

General:

  • Dimensions: 335 x 160 x 335mm
  • Weight: 8.4kg
