Sauermann Si-CA 130 Pro (NO) Combustion Flue Gas Analyser Kit

Sauermann
SKU: SAUESICA1303BS
  • Large touchscreen with automatic logging and reports via app/PC, over USB or wireless
  • Measures O2 and CO, calculates CO2 percentage, efficiency and excess air, plus draft and differential pressure
  • 3BS kit includes O2/CO sensors and a 300mm probe with 3m dual hose, plus 8-hour battery and holster
More Info
Typically ships in 3-5 working days
Choose Your Free Gift
ETI Flow Cup Water Flow Measurement Gauge
ETI Flow Cup Water Flow Measurement Gauge
Free
£25.00
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Blue Spot 15mm and 22mm Pipe/Tube Cutters (FREE GIFT)
Free
£19.95
Test Meter 630ml Double Walled Water Bottle [FREE GIFT]
Test Meter 630ml Double Walled Water Bottle [FREE GIFT]
Free
£9.99

Sauermann Si-CA 130 Pro (NO) Combustion Flue Gas Analyser Kit

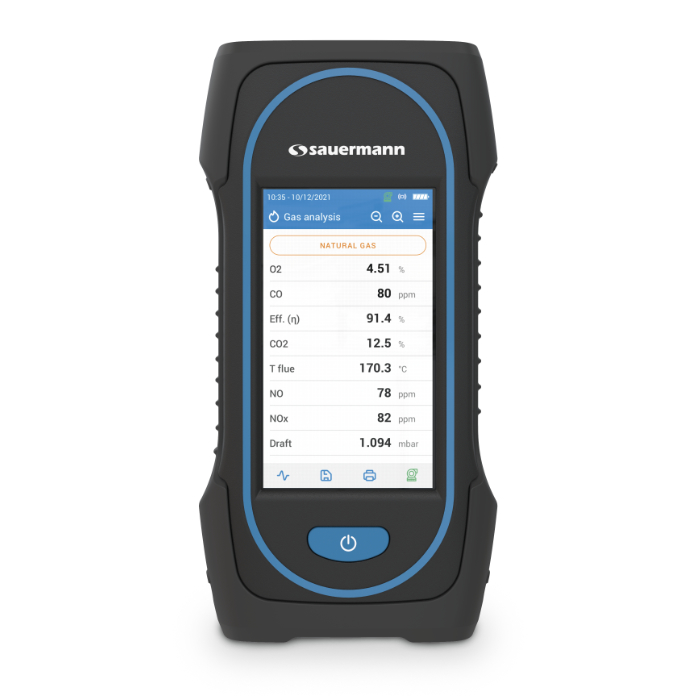

The Sauermann Si-CA 130 Pro (NO) Combustion Flue Gas Analyser Kit comes with both an O2 Sensor and a CO Sensor, as well as a 300mm Probe with 3m Dual Hose. The Si-CA 130 features a large colour touchscreen that presents clear readings and automatically logs data to the instrument. Reports can be created using the Sauermann app and PC software, with results transferred quickly via wireless connection or USB.

In collaboration with Velocity Pro Gear, Sauermann also offers an optional protective field bag for carrying the analyser kit, which can be added to your order by selecting the checkbox above.

To help keep the analyser accurate and minimise downtime, predictive maintenance estimates sensor life and provides calibration reminders. Pre-calibrated, field-replaceable sensors add extra convenience, while draft and differential pressure can be measured with a one-touch pump On/Off and purge. The analyser also supports combustion efficiency and excess air calculations.

On-screen gas analysis can be customised, with graphical views available for easier interpretation. A user-adjustable automatic pump cut-off can be enabled if high CO levels are detected, and the instrument can calculate CO2 percentage as well as monitor ambient CO and CO2.

For full-day use in the field, the Si-CA 130 offers up to 8 hours of battery life and is protected by a durable rubber holster.

Sauermann part number: 27513 (3BS)

Sauermann Flue Gas Analyser Comparison

  Si-CA 030 Si-CA 130 Si-CA 230
LCD Display 2.8 inches 4.3 inches 4.3 inches
Display resolution 320 x 240 pixels 480 x 272 pixels 480 x 272 pixels
LCD Display No (5 buttons) Yes (Plus on/off buttons) Yes (Plus on/off buttons)
Weight 350g 350g 825g
No of cells Up to 3 (O2, CO & NO) Up to 3 (O2, CO, NO & Low NO) Up to 6 (O2, CO, NO, Low NO, NO2, Low NO2, SO2, Low SO2, CxHy & H2S)
Max CO measurement 8,000 ppm 8,000 ppm 50,000 ppm (with dilution)
CO Dilution     ✔
Field replaceable pre calibrated sensors   ✔ ✔
Flue gas velocity with pitot tube   ✔ ✔
Measurement storage Smartphone Internal:2000 data points plus smartphone and PC Internal:2000 data points plus smartphone and PC
PC software (Wireless & USB)   ✔ ✔
Sauerman Smartphone App ✔ ✔ ✔
Combustion applications Residential and commercial Residential and commercial Commercial and Industrial
Number of gas sensors 2-3 2-3 2-6
02: 0-25% ✔ ✔ ✔
CO: 0-8000ppm ✔ ✔
CO (h2 comp): 0-10,000ppm     ✔
CO (with dilution): 100-50,000ppm     ✔
CO2 (Calculated): 0-99.9% ✔ ✔ ✔
NO: 0 - 5,000ppm ✔ ✔ ✔
Low NO: 0 - 300ppm   ✔ ✔
NO2: 0 - 1,000ppm     ✔
Low NO2: 0 - 100ppm     ✔
NOx (Calculated): 0 - 7,500ppm ✔ ✔ ✔
Low NOx (Calculated): 0 - 450ppm   ✔ ✔
SO2: 0 - 5,000ppm     ✔
Low SO2: 0 - 100ppm     ✔
CxHy (HC): 0 to 5%     ✔
H2S: 0 to 500ppm     ✔
Flue temperature: -20 to 1250ºC (-4ºF to 2282ºF) ✔ ✔ ✔
Air temperature: -40 to 250ºC (-40ºF to 482ºF) ✔ ✔ ✔
Differential temperature: -20 to 1250ºC (-4ºF to 2282ºF) ✔ ✔ ✔
Pressure/Draft: -200 to 200mbar/-80 to 80 in H20 ✔ ✔ ✔
High accuarcy draft: -500 to 500Pa   ✔ ✔
Excess air: 0-999% ✔ ✔ ✔
Efficiency: 0 to 100% (Gross/HHV) ✔ ✔ ✔
Efficiency (condensation): 0 to 125% (Net/LHV) ✔ ✔ ✔
Stack Gas Velocity (0 to 99m/s / 0 to 19,500fpm)   ✔ ✔

Sauermann Combustion App

The Sauermann Combustion App is a free to download app that is available on both iOS and Android devices. With Wireless connection from the analyser to smartphone, the app allows for remote viewing of combustion data and measurements in real time as either a list or in a graph. Measurement data can be saved and automatic logging is also available. Reports can be created and exported in PDF, CSV (for Excel) and XML formats.

The app allows for databases to be created for customers, operators, and equipment.

All you need to know about servicing and calibration for this analyser

At Test Meter, we understand that choosing a new Flue Gas Analyser is not only about the cost of the analyser, but also about the cost and practicality for annual calibration and service. We've put together a useful guide that highlights all you need to know about calibration of this analyser with cost of ownership, locations of service centres in the UK and much more.

Click here to read about servicing and calibration for Sauermann analysers.

Sauermann Si-CA 130 Kit Comparison

  Standard Combustion Kit Pro (NO) Combustion Kit Velocity Elite Velocity Elite + Printer
Si-CA 130 Flue Gas Analyser ✓ ✓ ✓ ✓
Protective Rubber Holster ✓ ✓ ✓ ✓
Water Trap with Filter ✓ ✓ ✓ ✓
Magnetic Support ✓ ✓ ✓ ✓
AC Power Supply/Charger ✓ ✓ ✓ ✓
USB Cable ✓ ✓ ✓ ✓
Mobile App ✓ ✓ ✓ ✓
Internal Wireless Communication Module ✓ ✓ ✓ ✓
Quick Start Guide ✓ ✓ ✓ ✓
Calibration Certificate ✓ ✓ ✓ ✓
2 Year Warranty ✓ ✓ ✓ ✓
O2 Sensor ✓ ✓ ✓ ✓
CO Sensor ✓ ✓ ✓ ✓
NO Sensor - ✓ - -
180mm Probe (800°C) with 2m Dual Hose ✓ - ✓ ✓
300mm Probe (800°C) with 3m Dual Hose - ✓ - -
Vinyl Carry Case - ✓ - -
Sauermann x Velocity Bag - - ✓ ✓
Wireless BLE Printer - - - ✓
Set of Flow and Return Clamps - - - ✓
Pack of 5 Filters - - - ✓
Differental Pressure Hose - - - ✓
Pneumatic Valve - - - ✓

Key Features

  • 3BS kit includes O2 and CO sensors, plus a 300mm probe with 3m dual hose
  • Large colour touchscreen with automatic logging, plus reports via app/PC over USB or wireless
  • Predictive maintenance with sensor-life estimate, calibration reminders, and field-replaceable sensors
  • Draft and differential pressure with one-touch pump and purge
  • Calculates CO2 percentage, combustion efficiency, and excess air
  • Customisable on-screen gas analysis with graphical views
  • User-adjustable auto pump cut-off for high CO, plus ambient CO and CO2 monitoring
  • Up to 8 hours battery life with protective rubber holster
  • Optional Velocity Pro Gear protective field bag available
Specification

Measure Details

  • Units: ºC, %, ppm, m/s, mbar

Measuring ranges

  • O2: 0.00% to 25%
  • CO (H2 comp): 0.00ppm to 10,000.00ppm
  • CO2: 0.00% to 99.90%
  • NO (optional): 0.00ppm to 5,000ppm
  • Low NO: 0.00ppm to 300ppm
  • NOx (Opțional): 0.00ppm to 7,500ppm
  • Low NOx: 0.00ppm to 450ppm
  • Flue temperature: -20ºC to 1250ºC
  • Air temperature: -20ºC to 120ºC
  • Differential temperature: 0ºC to 1250ºC
  • Pressure/draft: -200mbar to 200mbar
  • High accuarcy draft: 500.00pa ...500.00Pa
  • Excess air: 0% to 999%
  • Efficiency: 0% to 100%
  • Efficiency (condensation) 0% to 125%
  • Stack gas velocity: 0.00m/s to 99.00m/s

Technical details

  • Parameters:
    CO
    CO2
    NO
    NO2
    02
  • Display: Colour graphical display
  • IP protection: IP42
  • Battery Life: 8 hours
  • Standards:
    2015/863 EU (RoHS 3)
    NF EN 50379-3
    TÜV SÜD Certification
    UKCA
    NF EN 50379-1
    2014/53/EU RED
  • Wireless connection: 1
  • Power Supply: Li-ion 5100 mA/h 3.6V rechargeable battery
  • USB: Yes
  • Sensors:
    CO
    CO2
    NOx
    NO
    02
  • Auto zero: Yes
  • Printer: Remote
  • Sensor protection: Sensor protection by pump stopping
  • Mobile application: Yes

Instrument dimensions

  • Length: 99mm
  • Width: 49mm
  • Height: 194mm
  • Weight: 350g

Operating temperature

  • Minimum: -5ºC
  • Maximum: 45ºC

Storage temperature

  • Minimum: -20ºC
  • Maximum: 50ºC
