Seaward Primetest 100 Maintenance PAT Testing Kit

Seaward PrimeTest 100 Maintenance PAT Testing Kit

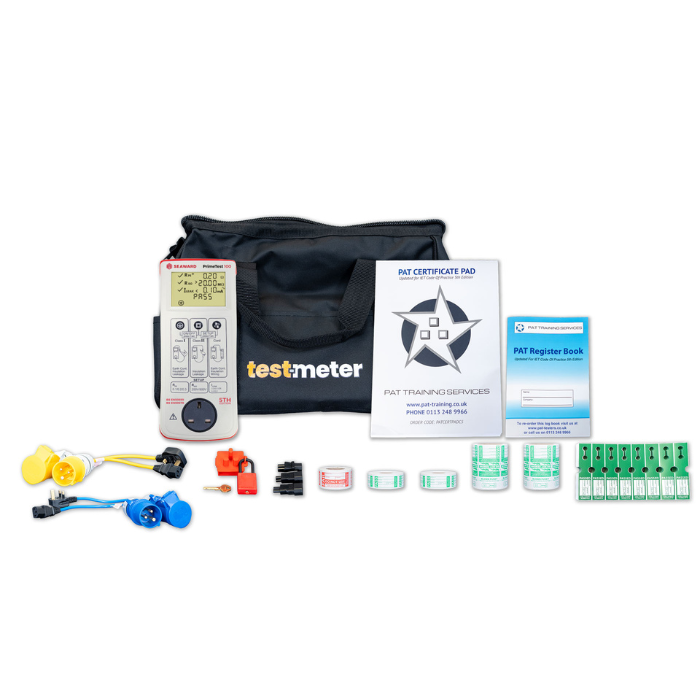

The Seaward PrimeTest 100 Maintenance PAT Testing Kit combines the compact, battery-powered Seaward PrimeTest 100 Tester with a practical selection of accessories for routine in-house PAT testing and maintenance work. It is designed for engineers, facilities teams and competent users who need to test a broad range of portable electrical appliances, extension leads and IEC leads while working in line with the IET 5th Edition Code of Practice and BS EN 50699. The kit gives users the tester, adaptors, labels and paperwork needed to carry out testing, record results and identify equipment clearly after inspection.

At the centre of the kit is the Seaward PrimeTest 100, built for fast, straightforward operation without unnecessary complexity. Pre-programmed test sequences allow Class I appliances, Class II appliances and IEC leads to be tested at the push of a button, with clear PASS/FAIL indication and measured values shown on the large LCD display. Selectable 250V or 500V insulation resistance testing, user-adjustable earth continuity limits, Class II FE testing and long lead testing provide useful flexibility for different appliance types and site conditions. When connected to a mains outlet, the tester can also check socket wiring and mains voltage, helping users identify supply issues before testing equipment.

For manual PAT testing, the PrimeTest 100 offers dependable performance in a highly portable format. Because it is battery powered, it can be used where moving quickly between appliances is more important than working from a fixed bench setup. Seaward's ZAP technology helps improve earth continuity measurements where surface contamination such as rust, limescale or paint can make reliable readings more difficult. The tester can also be used with the free Seaward PATMobile App, giving users the option to store test records digitally, scan barcodes, tag photos, print labels and produce reports while keeping the simplicity of a manual tester.

The accessories included in this maintenance kit make it better suited to day-to-day testing across commercial, facilities and light industrial environments. The IEC Adaptor Kit supports testing of common IEC power leads used with office and IT equipment, while the 16A 110V and 16A 230V appliance and extension lead adaptors help users test compatible site equipment, industrial plugs and extension leads. The PAT Register Book and PAT Certificate Pad support manual record keeping, and the supplied pass labels, pass wrap labels, fail labels and Tuff Tag cable wrap labels make it easy to mark equipment clearly after inspection. A PL13 230V 13A Plug Lockout and Padlock helps prevent faulty appliances from being used until action has been taken. Supplied in a Test-Meter Kit Bag, the kit keeps the tester and accessories organised, protected and ready to take from job to job.

Seaward part number: PT100

Key Features

• Battery-powered handheld PAT tester for portable, efficient appliance testing
• Simple push-button test sequences for Class I appliances, Class II appliances and IEC leads
• Clear LCD display with measured values and PASS/FAIL indication
• Selectable 250V and 500V insulation resistance testing for different appliance requirements
• User-selectable earth continuity limits and Seaward ZAP technology for reliable continuity measurements
• Long lead testing and Class II FE testing for broader PAT testing coverage
• Mains socket wiring and voltage check when connected to a power outlet
• Compatible with the Seaward PATMobile App for digital record keeping, barcode scanning, photo tagging, label printing and reporting
• Includes IEC, 110V and 230V adaptor options for testing common office, site and industrial equipment
