Seaward Primetest 100 Small Business PAT Testing Kit

Seaward
SKU: SEAWPT100SBKIT
  • Class II FE test capability for applicable equipment
  • Built-in socket check for mains voltage and wiring verification
  • Compatible with the free Seaward PATMobile App for digital record keeping
More Info
Typically ships in 3-5 working days

Seaward PrimeTest 100 Small Business PAT Testing Kit

The Seaward PrimeTest 100 Small Business PAT Testing Kit comes with the core accessories needed to test common electrical equipment, record results and clearly label tested appliances. The tester is updated for the IET 5th Edition Code of Practice and is compliant with BS EN 50699, helping businesses meet their ongoing electrical safety responsibilities with confidence.

The kit is built around the compact, battery-powered Seaward PrimeTest 100 PAT tester, which offers straightforward operation through pre-programmed test sequences for Class I appliances, Class II appliances and mains cords, where each sequence can be selected at the press of a button.

The PrimeTest 100 features a large LCD display that provides clear PASS/FAIL indications alongside measured values. Selectable 250V or 500V insulation resistance testing, user-selectable earth continuity limits, Class II FE testing and long lead testing give the flexibility to test a wider range of portable electrical equipment. When connected to a power outlet, the built-in socket check also verifies mains voltage and wiring, helping to identify supply issues quickly before testing begins.

The PrimeTest 100 is ideal for manual, low-volume testing where results are written down, but it can also support digital record keeping through the free Seaward PATMobile App. Test records can be entered and stored electronically, with barcode scanning, photo tagging, label printing and reporting available from a compatible smartphone or tablet. This provides a convenient upgrade path for businesses that want more organised records without moving to a fully downloadable PAT tester.

To support day-to-day testing, the small business kit includes a Test-Meter PRO TMP989 230V 13A Socket Tester for checking socket wiring before use, while the IEC Adaptor Kit helps with testing common IEC power leads found on computers, monitors and other office equipment. A PAT Register Book and PAT Certificate Pad simplify documentation, helping you maintain organised records and demonstrate compliance during inspections. The generous supply of pass labels, pass wrap labels and fail labels allows appliances to be clearly identified after testing, making it easy to monitor equipment status across the workplace. Everything is supplied in a durable Test-Meter Kit Bag, keeping the tester and accessories protected, organised and ready for use on site or between locations.

Part number: PT100

PAT Testing Kit Comparison Guide



Small Business PAT Testing Kit

Landlords PAT Testing Kit

Maintenance PAT Testing Kit

Industrial PAT Testing Kit

Test Meter Kit Bag

✔

✔

✔

x 2

PAT Register Book

✔

✔

✔

✔

PAT Certificate Pad

✔

✔

✔

✔

Test Meter PRO TMP989 230V 13A Socket Tester

✔

✔



IEC Cloverleaf Adaptor



✔



IEC Adaptor Kit

✔



✔

✔

500 Pass labels

x 2

x 2

x 2

 x 2

250 Pass Wrap labels

✔

x2

x 2

x 2

200 Fail labels

✔

✔

✔

✔

250 Tuff Tag Cable Wrap Labels



✔

✔

16A 110V Appliance Adaptor and Extension Lead Adaptor



✔

✔

PL13 230V 13A Plug Lockout & Padlock



✔

✔



16A 230V Appliance Adaptor and Extension Lead Adaptor



✔

✔

32A 110V Appliance Adaptor and IEC Extension Lead Adaptor



✔

32A 230V Appliance Adaptor and Extension Lead Adaptor



✔

16A & 32A 4 and 5 Pin Appliance Adaptors and IEC Extension Lead Adaptors



✔

Key Features

  • IET 5th Edition Code of Practice and BS EN 50699 compliant
  • Compact, handheld and battery-powered for portable PAT testing
  • Simple push-button test sequences for Class I, Class II and mains cord testing
  • Clear PASS/FAIL indication with measured test result values
  • Selectable 250V/500V insulation resistance testing for greater flexibility
  • User-selectable earth continuity limits to suit different testing requirements
  • Long lead test function for extension leads and longer mains leads
  • Class II FE test capability for applicable equipment
  • Built-in socket check for mains voltage and wiring verification
  • Seaward ZAP technology for reliable earth continuity measurements
  • Compatible with the free Seaward PATMobile App for digital record keeping

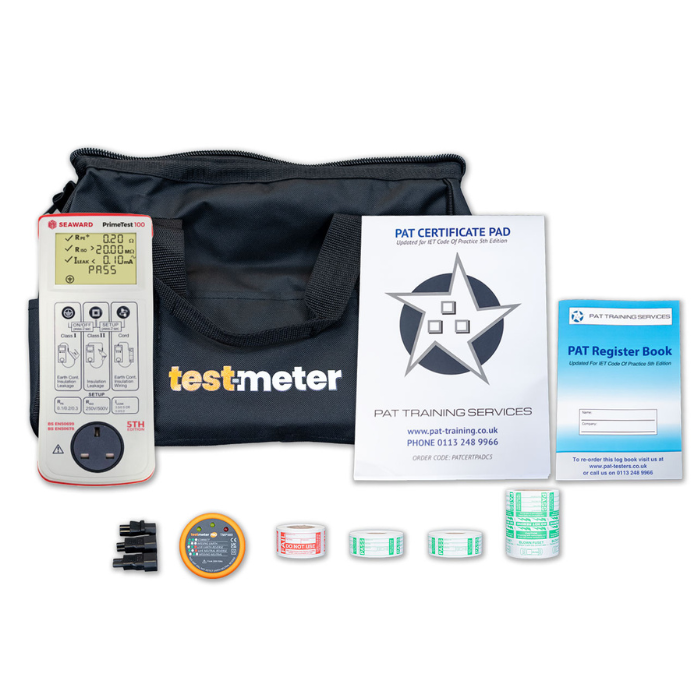

What's In The Box?

  • Seaward PrimeTest 100 PAT Tester
  • Test-Meter Kit Bag
  • PAT Register Book
  • PAT Certificate Pad
  • Test Meter PRO TMP989 230V 13A Socket Tester
  • IEC Adaptor Kit
  • 2x 500 Pass labels
  • 250 Pass Wrap labels
  • 200 Fail labels
Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range:  0.00 – 19.99Ω
  • Pass Value: 0.1/0.2/0.3 Ω

Insulation Resistance

  • Test Voltages: 250/500V DC
  • Display Range: 0.20 – 19.99MΩ
  • Pass Value: 1/2MΩ

IEC Lead Test

  • Tests Performed:
    - Earth continuity
    - Insulation resistance
    - Live, neutral continuity and polarity

Equivalent Leakage

  • Test Voltage: 40V, 50Hz, AC nominal
  • Display Range: 0.1mA to 5.00mA
  • Pass Value: 5.00mA

Power Socket test

  • Input Voltage Range: 230V +10%, -15% AC
  • Indicators:
    - Phase to earth voltage
    - Phase to neutral voltage
    - Neutral to earth

General Specifications

  • Dimensions: 265 x 105 x 52mm (h x w x d)
  • Weight: 800g
  • Power Source: 6 x AA Batteries
