- 1 x ECBT-MPUTH Earthing & Short-Circuit Equipment
- 4 x MPUBT/H aluminium alloy clamps with screw tighten
- 1 x Insulated grip with polivalent head
- 3 x Copper cables with PVC insulation of 35mm2 section and 0.6m long
- 1 x Copper cable with PVC insulation of 25mm2 section and 2m long
- 1 x TT-38A milling earthing lathe
- 1 x Plastic case
Sofamel ECBT-MPUBTH (For Low Voltage Panels)
SKU: SOFAECBTMPUBTH35
Never Beaten On Price
We’re always working hard to give you the best possible price, but if you find it cheaper somewhere else, we’ll endeavour to match the price.
Call 0113 248 9966 or contact us online
Key Features
- Provides short-circuit and earthing protection in low-voltage panels
- Security against accidental voltages during repair operations
- Designed specifically for flat bars (max. 35mm plates)
Related Categories
Request Callback / Quote: Sofamel ECBT-MPUBTH (For Low Voltage Panels)
We're always happy to offer help, information & advice to find the right instrument for you, so please get in touch.
To speak to our sales team, call us on 0113 248 9966, use our Live Chat service or contact us online.
Use reward points to get money off future purchases.
Please note: Customers must be signed into their account to be elegible. Find out more about reward points here.
We offer FREE standard delivery on all orders over £249, with a range of next-day options also available on many items.
Find out more on our delivery information page.
Key Features
- Provides short-circuit and earthing protection in low-voltage panels
- Security against accidental voltages during repair operations
- Designed specifically for flat bars (max. 35mm plates)
Related Categories
Sofamel ECBT-MPUBTH (For Low Voltage Panels)
The Sofamel ECBT-MPUBTH offers a suitably simple safety solution for electrical engineers operating on low voltage panels. This earthing & short-circuit equipment shields the operator from hazardous currents, such as in the event of an accidental power recommissioning, or an unprompted return of the voltage.
Perfect for operations on flat bars, the ECBT-MPUBTH utilises tightening screws and fixed clamps with a maximum width of 35mm. Rated IEC 61230, the inclusion of an insulated grip with polyvalent head creates an efficient, easy to use instrument capable of handling a short circuit current up to 9KA/1s.
Sofamel part number: ECBT-MPUBTH/35

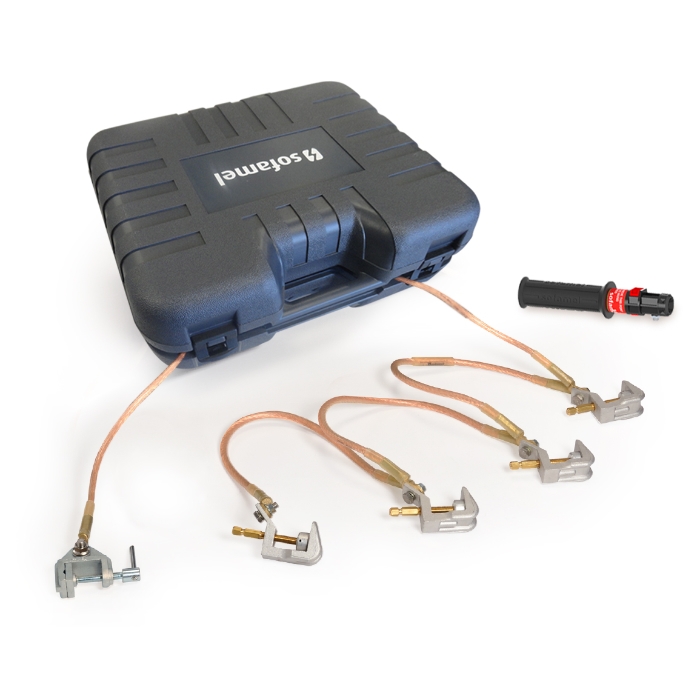

What's In The Box?
- 1 x ECBT-MPUTH Earthing & Short-Circuit Equipment
- 4 x MPUBT/H aluminium alloy clamps with screw tighten
- 1 x Insulated grip with polivalent head
- 3 x Copper cables with PVC insulation of 35mm2 section and 0.6m long
- 1 x Copper cable with PVC insulation of 25mm2 section and 2m long
- 1 x TT-38A milling earthing lathe
- 1 x Plastic case
| Yes |
| Label | Type | Size | Download | |
|---|---|---|---|---|
|
Sofamel ECBT-MPUBTH Low Voltage Electric Panel Datasheet | 1.3 MB | Download | |
|
|
Sofamel ECBT-MPUBTH Low Voltage Electric Panel Catalogue Information | 1 MB | Download |
